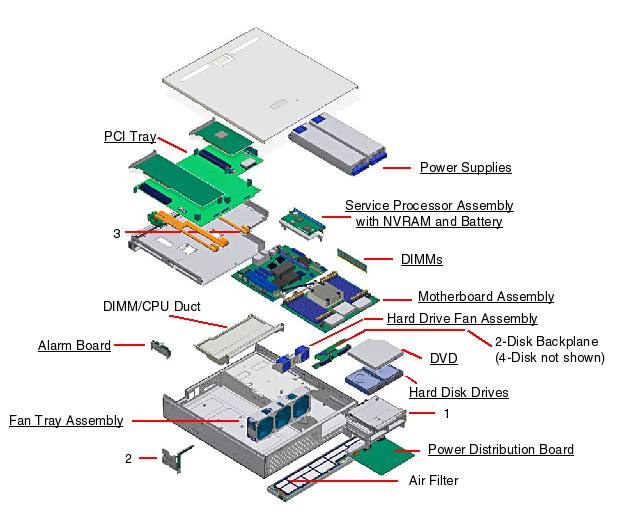

Netra T2000, RoHS:YL - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
150-1204
[C]
3V Lithium battery,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
n/a
530-3100
RJ45F to DB9F Adapter,
n/a
n/a
530-3361
CPU/Memory to I/O Board Cable,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card, L
n/a
X1355A-2 1
[S]
371-0982
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,
n/a
375-3296
[C]
Quad Port High Speed Serial Interface PCI-X (HSI/U),
n/a
n/a
371-1957 [C]
Alarm Board Assembly, L
n/a
n/a
n/a
Alarm Board to Motherboard Cable 422747400001
n/a
Alarm Board to DB-15 Cable 422747400013
n/a
n/a
371-2877 [C]
Telco Alarm Board, L
371-1957 [C]
Disks
Option #
Manufacturing Part #
Description
Previous Part #
XRA-SS2ND-146G10KZ
[S]
540-7152 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2ND-300G10K
[S]
540-7867 [C]
300GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST93000SSUNG [ST930003SSUN300G]
(300GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2ND-73G10K
[S]
540-6643 [C]
73GB - 10000 RPM, NEBS, SAS, 2.5", Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRB-SS2ND-146G10K
[S]
540-7866 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Seagate ST9146803SS [ST914603SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X7281A-2 2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS),
n/a
X4445A
[S]
501-6738
[C]
Quad GigaSwift PCI-X Ethernet (QGE-X),
n/a
X7280A-2 3
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-1954 [C]
Fan Tray Assembly,
n/a
n/a
371-1955 [C]
HDD Fan Tray Assembly,
n/a
n/a
371-2736 [C]
System Fans Assembly,
371-1954 [C]
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter,
n/a
n/a
Graphics
Option #
Manufacturing Part #
Description
Previous Part #
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator,
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm,
n/a
530-3998 4
[C]
DMS-59 to Dual DVI-I Cable, 215mm,
n/a
X3777
[S]
375-3433
[C]
XVR-200 Graphics Accelerator,
n/a
4 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
F371-2368 [C]
PCI Assembly, L
n/a
n/a
371-1959
[C]
n/a
n/a
Tray 541274740005
n/a
Memory
Option #
Manufacturing Part #
Description
Previous Part #
X7800A
[S]
1GB (2 × 512MB DDR2) Memory Expansion Kit,
370-6207
[C]
512MB DDR2 DIMM, 533 MHz,
n/a
X7801A
[S]
2GB (2 × 1GB DDR2) Memory Expansion Kit,
370-6208
[C]
1GB DDR2 DIMM, 533 MHz,
n/a
X7802A
[S]
4GB (2 × 2GB DDR2) Memory Expansion Kit,
370-6209
[C]
2GB DDR2 DIMM, 533 MHz,
n/a
X7803A
[S]
8GB (2 × 4GB DDR2) Memory Expansion Kit
370-6210
[C]
4GB DDR2 DIMM,
n/a
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
X4234A-Z
594-3954
Air Filter 10-Pack,
n/a
n/a
X4353A-Z
594-4536
Air Filter for 4 Hard Disk Drive Chassis,
n/a
Air Filter for 4 Hard Disk Drive Chassis,
n/a
X949A-4 5
594-2682
Wago DC Connector Set (10 pack),
n/a
n/a
Wago DC Connector Strain Relief,
n/a
Wago DC Connector Opening Lever,
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
n/a
300-1852
[C]
Type A214 550 Watt AC Input Power Supply, L
n/a
n/a
300-2006
[C]
Type D193 550 Watt DC Input Power Supply, L
n/a
n/a
371-1098
[C]
Power Distribution Board, L
n/a
PDB J3 to Disk Drive Interface J6 Cable 422747400007
n/a
Rack
Option #
Manufacturing Part #
Description
Previous Part #
X2089A
350-1387
19" 2-post Slide Rail Kit,
n/a
X7901A-4
371-1478
19" 2-post Rackmount Kit,
n/a
X7902A-4
371-1481
23" 2-post Rackmount Kit,
n/a
X7904A-4
371-1479
600mm x 600mm Rackmount Kit,
n/a
X8099A-4
371-1480
19" 4-post Slide Mount Kit,
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
X4356A-Z
DVD-Writer/CD-Writer, L
371-2261
DVD-ROM / CD-ROM Drive Bezel,
n/a
540-7563
[C]
DVD-Writer/CD-Writer, PATA,
n/a
8x PATA DVD-Writer/24x CD-Writer,
n/a
8x PATA DVD-Writer / 24x CD-Writer,
n/a
X4352A-Z 6
[S]
8× Slimline DVD-RW Drive Assembly, L
390-0337
[C]
8x PATA DVD-Writer/24x CD-Writer,
n/a
n/a
390-0251
[C]
Slimline 8X DVD-ROM / 24X CD-Writer,
n/a
6 Option X4352A-Z includes the DVD Bezel (PN#541-0325)
NOTE: DVD-ROM support requires the 2 Hard Disk Drive Cluster (part number 371-2661).
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCIE2SCSIU320Z
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
SGXPCI2SCSILM320-Z
375-3365
7
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
SG-XPCI2SCSI-LM320
[S]
375-3191
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
7 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing Part #
Description
Previous Part #
n/a
525-2146 [F]
SSCC NVRAM,
n/a
n/a
541-1438 [C]
0MB 6-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-1453 [C]
0MB 8-Core 1.2GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-1455 [C]
0MB 4-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2405 [C]
0MB 6-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2407 [C]
0MB 8-Core 1.2GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2409 [C]
0MB 4-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
System Service Processor
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-1962
[C]
Service Processor Assembly, L
n/a
Service Processor Riser, L
n/a
n/a
n/a
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
596-6336
Two Drive DC Base Chassis Assembly, L
1
Two Drive Cluster Assembly, L
-
Disk Drive Interface Board, L
-
DVD/CD Interface Board, L
NS
2-Disk Cluster Bracket 340747400008
NS
2-Disk Cluster Disk Interface to DVD Interface Cable 422747400022
-
596-6448
Two Drive AC Base Chassis Assembly, L
1
Two Drive Cluster Assembly, L
-
Disk Drive Interface Board, L
-
DVD/CD Interface Board, L
NS
2-Disk Cluster Bracket 340747400008
NS
2-Disk Cluster Disk Interface to DVD Interface Cable 422747400022
-
596-6878
Four Drive Base Chassis Assembly w/o Power Supply, L
1
Four Drive Cluster Assembly, L
-
Lower Disk Drive Interface Board, L
-
Upper Disk Drive Interface Board, L
-
SAS Cable 422747400031, L
-
Flex Cable 422747400027, L
-
2
371-1958 [C]
LED Assembly, L
-
3
371-1105
[C]
PCI Cable Assembly, L
-
21-Pin Fingerboard (x2), L
-
NS
370-6110
19" 4-Post Rackmount Kit,
NS
Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS
371-1953
Chassis Subassembly, L
NS
NS
530-2889
RJ45 to DB25 Serial Port Adapter,
NS
530-3623 [C]
Shielded RJ45 to RJ45 Cable, 4M,
NS
565-1882
Wago DC Connector Assembly Kit,
DC Connector Strain Relief
DC Connector Opening Lever
NS
n/a
LED Bracket 340747400033
NS
n/a
PCI Tray 21-Pin Cable 422747400009
NS
n/a
PCI Tray 41-Pin Cable 422747400010
NS
n/a
PCI Tray 21-Pin Cable 422747400011
NS
n/a
LED Cable 422747400014
NS
n/a
2-Disk Cluster SAS Cable 422747400016
NS
n/a
2-Disk Cluster IDE Cable 422747400012
NS
n/a
2-Disk Cluster SAS Cable 422747400021
NOTE: A two hard disk drive cluster Netra T2000 chassis (with or without DVD-ROM) cannot be field converted to a four hard disk drive cluster Netra T2000, or vice versa.
