Sun System Handbook - ISO 4.1 October 2012 Internal/Partner Edition | ||
|
|||
 |
||||||||||||||||||||||||||

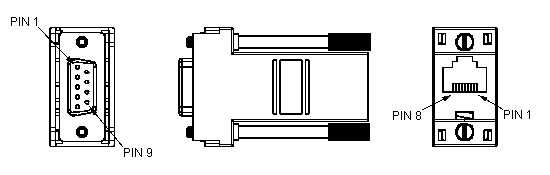

Serial: DB9F to RJ45F530-3100 | ||||||||||||||||||||||||||
| DB9F | WIRE COLOR | RJ45F |
|---|---|---|
| 8 - CTS | BLUE | 1 - RTS |
| 6 - DSR | ORANGE | 2 - DTR |
| 2 - RXD | BLACK | 3 - TXD |
| 5 - GND | GREEN | 4 - GND |
| RED | 5 - GND | |
| 3 - TXD | YELLOW | 6 - RXD |
| 4 - DTR | BROWN | 7 - DSR |
| 7 - RTS | WHITE | 8 - CTS |
| | | |
|
