Sun Fire T1000 / T2000
SPARC Enterprise T1000 / T2000
Netra T2000

Options 7800A / 7801A / 7802A / 7803A
Options SEKX2A1Z / SEKX2B1Z / SEKX2C1Z / SEKX2D1Z

370-6207 370-6208 370-6209 370-6210
DDR2-533/PC2-4200
ECC/Registered
512MB DIMM
1GB Option 7800A
1GB Option SEKX2A1Z
DDR2-533/PC2-4200
DDR2-667/PC2-5300
ECC/Registered
1GB DIMM
2GB Option 7801A
2GB Option SEKX2B1Z
DDR2-533/PC2-4200
DDR2-667/PC2-5300
ECC/Registered
2GB DIMM
4GB Option 7802A
4GB Option SEKX2C1Z
DDR2-533/PC2-4200
DDR2-667/PC2-5300
ECC/Registered
4GB DIMM
8GB Option 7803A
8GB Option SEKX2D1Z

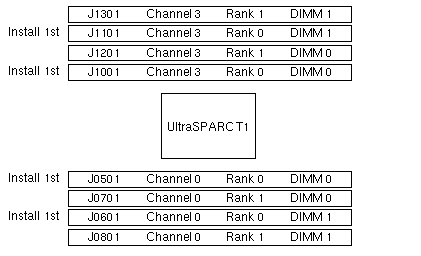

T1000 Memory Map

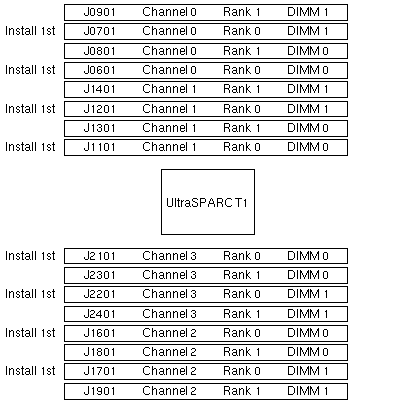

T2000 Memory Map

Sun Fire T1000 Codename: Erie
Sun Fire T2000 Codename: Ontario
Netra T2000 Codename: Pelton

Notes

  1. The packing list describes 370-6208 and 370-6209 as 533MHz.
  2. DDR2-667 DIMMs were qualified in September 2007.

T1000 Notes

  1. The minimum T1000 memory requirement is four Rank 0 DIMMs.
  2. All DIMMs must have identical capacity.
  3. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

T2000 Notes

  1. The minimum T2000 memory requirement is eight Rank 0 DIMMs.
  2. All DIMMs must have identical capacity.
  3. An example error message from the DIMM in J2401 is MB/CMP0/CH3/R1/D1 .

References

  1. Netra T2000 Server Documentation.
  2. Sun SPARC Enterprise T1000 Server Documentation.
  3. Sun SPARC Enterprise T2000 Server Documentation.
  4. Sun Fire T1000 Server Documentation.
  5. Sun Fire T2000 Server Documentation.
