4-Slot PCI Tray

Telco: Netra T2000, X4200 M2

371-1099
PCI Board
L
Netra T2000
371-1959 371-2368 F371-2368 371-1105
PCI Tray FRU
L
PCI Tray
304747400011
L
PCI Tray FRU
304747400011
L
PCI Tray Cable Kit
L
Netra X4200 M2
371-2368 F371-2368
PCI Tray
304747400011
L
PCI Tray FRU
371-1099 + 371-2368
L


Netra T2000 Codename: Pelton
Netra X4200 M2 Codename: Draco

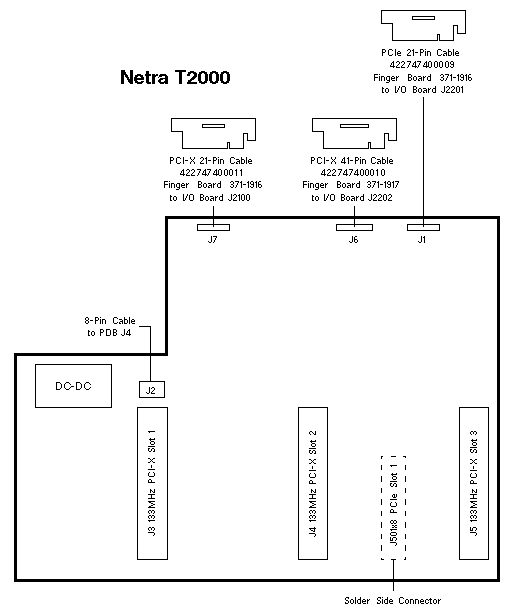

Netra T2000 Notes

  1. Cable Kit 371-1105 includes three Cables and three Finger Boards.
  2. Cables 422747400009 and 422474740011 are the same length.
  3. Cable Kit 371-1105 does not include the 8-Pin PDB Cable to J2.
  4. Assembly 371-1959 includes the PCI Board and Tray 34074740011.
  5. Board 371-1099-08 in Tray 371-1959-01 Rev 54 was released in July 2008.
  6. Board 371-1099-08 in Tray 371-2368-03 was released in July 2008.
  7. Board 371-1099-08 does not recognize x1 or x4 PCI Express cards (BugID 6784637).
  8. BugID 6784637 was corrected on Board 371-1099-09 and Tray 371-2368-04 in
    February 2009. (WO_40753)
  9. Assembly 371-1959 was replaced by 371-2368 in February 2009.

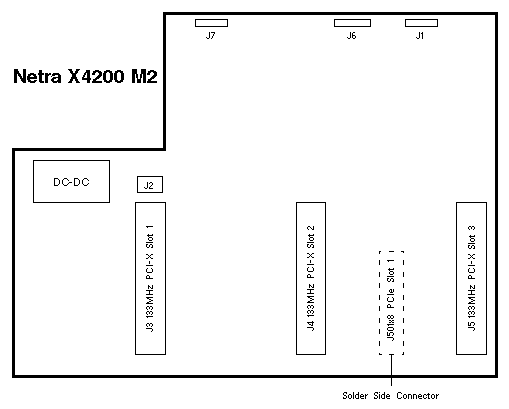

Netra X4200 M2 Notes

  1. Board 371-1099-08 in Tray 371-1959-01 Rev 54 was released in July 2008.
  2. Board 371-1099-08 in Tray 371-2368-03 was released in July 2008.
  3. Board 371-1099-08 does not recognize x1 or x4 PCI Express cards (BugID 6784637).
  4. BugID 6784637 was corrected on Board 371-1099-09 and Tray 371-2368-04 in
    February 2009. (WO_40753)

References

  1. Netra T2000 Server Documentation.
  2. Sun Netra X4200 M2 Server Documentation.
  3. Integrated Lights Out Manager Administration Guide, 820-0280.
