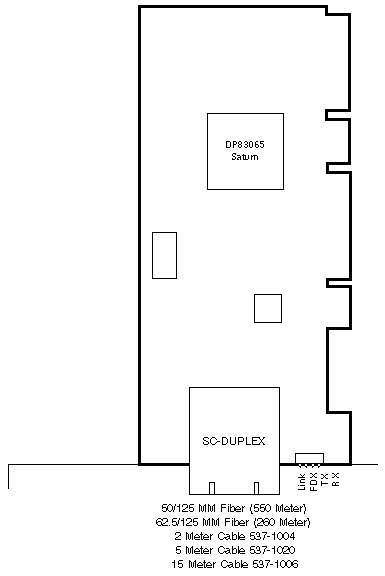

GigaSwift Ethernet MMF

Codename: GFS = GigaSwift Fibre Saturn

Workstations: Sun Blade 100, 150, 1000, 1500, 2000, 2500
Ultra 25, 45
Servers: Sun Fire 280R, V120, V125, V210, V240, V250, V440
Sun Fire V480, V490, V880, V890, V20z, V40z
Sun Fire 12K, 15K, E20K, E25K
Sun Fire 4800, 6800, E2900, E4900, E6900, V1280
Sun Fire T2000
SPARC Enterprise T2000
Telco: Netra 20, 120, 1280

Option 4151
Option 4151A-2
Option 4153A-2

501-6762 501-7430 501-7511
3.3/5V   32/64Bit   33/66MHz
Standard Profile Bracket
Option X4151A
3.3/5V   32/64Bit   33/66MHz
Standard Profile Bracket
Option X4151A-2
3.3/5V 32/64Bit 33/66MHz
Low Profile Bracket
Option 4153A-2

Notes

  1. The minimum operating system is Solaris 7.
  2. The ce device driver requires Solaris 7 Patch 112327-18, Solaris 8 Patch 111883-24, or Solaris 9 Patch 112817-17, or Solaris 9 x86 Patch 117714-01.
  3. The minimum operating system for the VLAN Utility is Solaris 8.
  4. The VLAN Utility requires Solaris 8 Patch 112119-04 or Solaris 9 Patch 114600-02.
  5. Do Not install GigaSwift Ethernet and ESI/P on the same Ex000 PCI I/O Board.
  6. Refer to Sun Alert article 1000479.1 for information about forced mode with the CE driver.

PCI Bracket Notes

  1. Standard Profile Bracket 370-4192 is installed on 501-6762 and 501-7430.
  2. Low Profile Bracket 370-7810 was added to F501-6762-04 in November 2005.
  3. Low Profile Bracket 370-7810 was added to 4151A and X4151A in November 2005.
  4. FRUs include Standard Bracket 370-4192 and Low Profile Bracket 370-7810.

References

  1. Sun GigaSwift Ethernet UTP/MMF Adapter Documentation.
