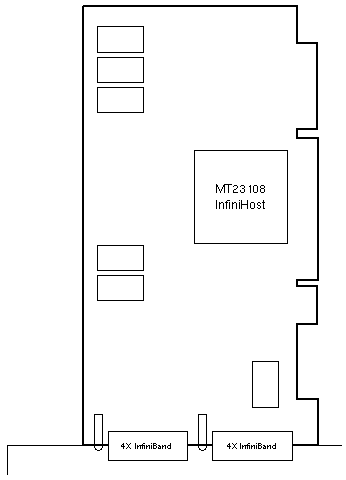

Dual 10Gigabit/Sec (4x) InfiniBand
Host Channel Adapter

Servers: Sun Fire V20z, V40z

Option 9270

370-6943
Topspin 4X InfiniBand PCI-X
3.3V   64Bit   66/100/133MHz

Notes

  1. On Sun Fire V40z, 370-6943 is only supported in slots 2 and 3 with BIOS <=2.18.11.
  2. Option 9270 does not include InfiniBand device drivers, documentation, or cables.
  3. Connectors with 9-ground pins, 16-signal pins, and latching hardware are used.

References

  1. Sun Fire V20z and Sun Fire V40z Servers Documentation

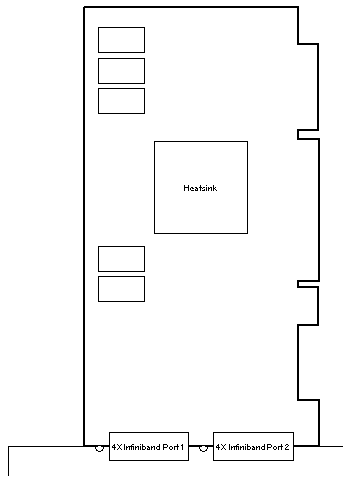

Dual 10Gigabit/Sec (4x) InfiniBand
Host Channel Adapter

Servers: Sun Fire V20z, V40z, V240, V440, V445, V490, V890
Sun Fire X4100, X4200, X4200 M2, X4500, X4600, X4600 M2
Sun Fire T2000
SPARC Enterprise T2000
Telco: Netra X4200 M2

Options 1233 / 1235 / 1333A-4 / 2333A-4

375-3259 375-3260 375-3418
Mellanox MHXL-CF256-T
3.3V   32/64Bit   66/100/133MHz
Standard Bracket
Option 1233 		Mellanox MHXL-CF256-T
3.3V   32/64Bit   66/100/133MHz
Low-Profile Bracket
Option 1235 		Mellanox MHXL-CF256-T
3.3V   32/64Bit   66/100/133MHz
Low-Profile Bracket 1333A-4
Standard Bracket 2333A-4

Notes

  1. The minimum Solaris operating system is Solaris 10 3/05.
  2. Board Options 1233 and 1235 do not include InfiniBand cables.
  3. Cable Option 9280 includes 2 Meter 4x-12x InfiniBand Cable 530-3387.
  4. Cable Option 9281 includes 5 Meter 4x-12x InfiniBand Cable 530-3386.
  5. Install the InfiniBand card in Sun Fire V40z 66MHz or 100MHz slots.
  6. The InfiniBand card is not mechanically compatible with Sun Fire E6900 Slot 3.

References

  1. Sun Dual Port 4x IB Host Channel Adapter PCI-X Documentation
