PCI-X - Dual Ultra-320 SCSI

Codename: Jasper 320

See V440 Notes

Additional Supported Systems

Tape Libraries:

StorageTek SL24, SL48

Option SG-XPCI2SCSI-LM320
Option SGXPCI2SCSILM320-Z

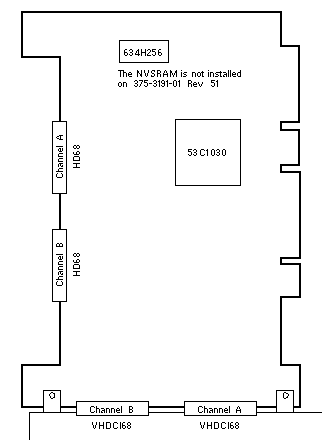

375-3191-01 Rev 50	375-3191-01 Rev 51
LSI Logic LSI22320-SR PCI/PCI-X (Sun OEM version of LSI22320-R) 3.3/5V   32/64Bit   33/66/100/133MHz June 2004	LSI Logic LSI22320-S PCI/PCI-X (Sun OEM version of LSI22320-R) 3.3/5V   32/64Bit   33/66/100/133MHz May 2005

375-3365
LSI Logic LSI22320-S PCI/PCI-X (Sun OEM version of LSI22320-R) 3.3/5V   32/64Bit   33/66/100/133MHz Option SGXPCI2SCSILM320-Z

Notes

1. The Integrated RAID feature of the LSI22320-R is not supported.
2. The model changed from LSI22320-RS to LSI22320-S in May 2005.
3. Booting from a disk powered on before the host system is supported.
4. Booting from a disk powered on at the same time as the host system is not supported.
5. 5-Volt hsPCI and hsPCI+ slots on Sun Fire 12K/15K or E20K/25K require patch 117772-03.
6. Ultra-320 is Low Voltage Differential (LVD).
   See SCSI Overview for details.
7. The 375-3365 is not supported in the M4000 or M5000 internal I/O Unit (IOU) after 04/01/08.
8. The 375-3365 is supported in an external I/O Expansion Unit with the M4000 and M5000.

Sun Fire V440 Notes

1. 375-3191 and 375-3365 have been disqualified on Sun Fire V440 in LVD Mode.
   See FAB article 1001155.1 (formerly 102547).

BIOS Notes

1. The minimum Sun Fire V20z BIOS is 1.27.11.
2. The minimum Sun Fire V40z BIOS is 2.18.11.
3. The Minimum Sun Fire V60x and Sun Fire V65x BIOS is 1191.

Firmware Notes - 817-5828-12 (November 2004)

1. The minimum Sun Fire 4800 and Sun Fire 6800 firmware is 5.18.0.
2. The minimum Sun Fire E4900 and Sun Fire E6900 firmware is 5.18.0.
3. The minimum Sun Fire V1280 and Sun Fire E2900 firmware is 5.18.0.

Firmware Notes - 817-5828-13 (February 2005)

1. The minimum Sun Fire 4800 and Sun Fire 6800 firmware is 5.18.1.
2. The minimum Sun Fire E4900 and Sun Fire E6900 firmware is 5.18.1.
3. The minimum Sun Fire V1280 and Sun Fire E2900 firmware is 5.18.1.

Operating System Notes

1. The minimum operating system is Solaris 8 7/03, Solaris 9 12/03, or Solaris 9 8/03 x86.
2. Install Solaris 8 mpt driver patch 115275 and raidctl utility patch 115274.
3. Install Solaris 9 mpt driver patch 115665 and raidctl utility patch 115667.
4. The mpt driver is included in Solaris 8 2/04 and Solaris 9 4/04.
5. Solaris 10 is supported on both x86 and SPARC platforms.

References

1. Sun StorageTek Ultra320 SCSI PCI-X HBA, Dual Port Documentation

PCI-X - Dual Ultra-320 SCSI

Desktops/Workstations:	Java Workstation W1100z, W2100z Ultra 20
Servers:	Sun Fire V20z, V40z
Disk Arrays:	StorEdge 3120, 3310, 3320

Option 9265

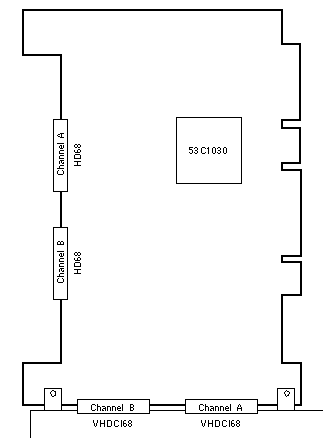

370-6682	371-1628
LSI Logic LSI22320-R PCI/PCI-X 3.3/5V   32/64Bit   33/66/100/133MHz X9265A	LSI Logic LSI22320-R PCI/PCI-X 3.3/5V   32/64Bit   33/66/100/133MHz X9265A-Z

Notes

1. Option 9265 is an unmodified LSI22320-R.
2. Solaris 9 4/04 x86 includes the mpt device driver.
3. Linux and Windows device drivers are not included.
4. Ultra-320 is Low Voltage Differential (LVD).
   See SCSI Overview for details.

Reference

1. Ultra320 SCSI to PCI-X Host Adapters User's Guide, LSI Logic DB15-000192.
2. Fusion-MPT Device Management User's Guide, LSI Logic DB15-000186.
3. Integrated RAID User's Guide, LSI Logic DB15-000292.
4. Fusion-MPT FCode User's Guide, LSI Logic DB15-000310.
