Service Processor

Telco:

Netra T2000

371-1100	371-1965	371-1962
Riser Board 41174700031 L	Service Processor FAB 270-7130 L	Service Processor Assy 371-1100 + 371-1965 w/ Bracket L

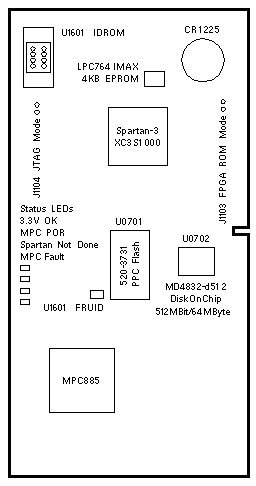

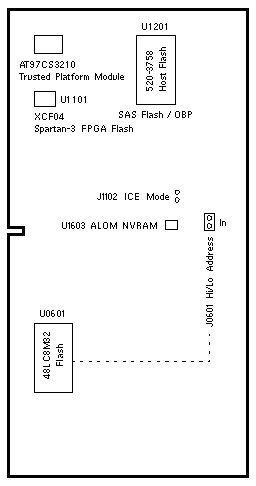

371-1965 Top Side View		371-1965 Bottom Side View

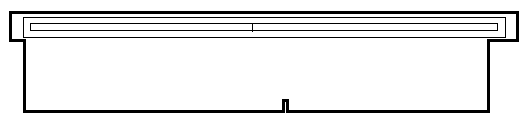

371-1100 Front View

Netra T2000 Codename: Pelton

Notes

1. Use the showsc version -v command to view the following firmware revisions:
   sc> showsc version -v
   ALOM-CMT 1.0.3
   VBSC 1.0.1
2. Use the showhost command to view the following firmware revisions:
   sc> showhost
   Reset V1.0.0
   Hypervisor 1.0.1
   OBP 4.19.0
   MPT SAS FCode Version 1.00.37
   Integrated POST 4.19.2
3. The 371-1965 is a reprogrammed 501-7500 or 501-7764.
   Host Flash is changed to 520-3758.
   ALOM is changed to 520-3731.
   The components may be incorrectly labeled.
4. Support for four internal disks requires System Flash 6.3.7 (Patch 124753-02)

References

1. Netra T2000 Server Documentation.
