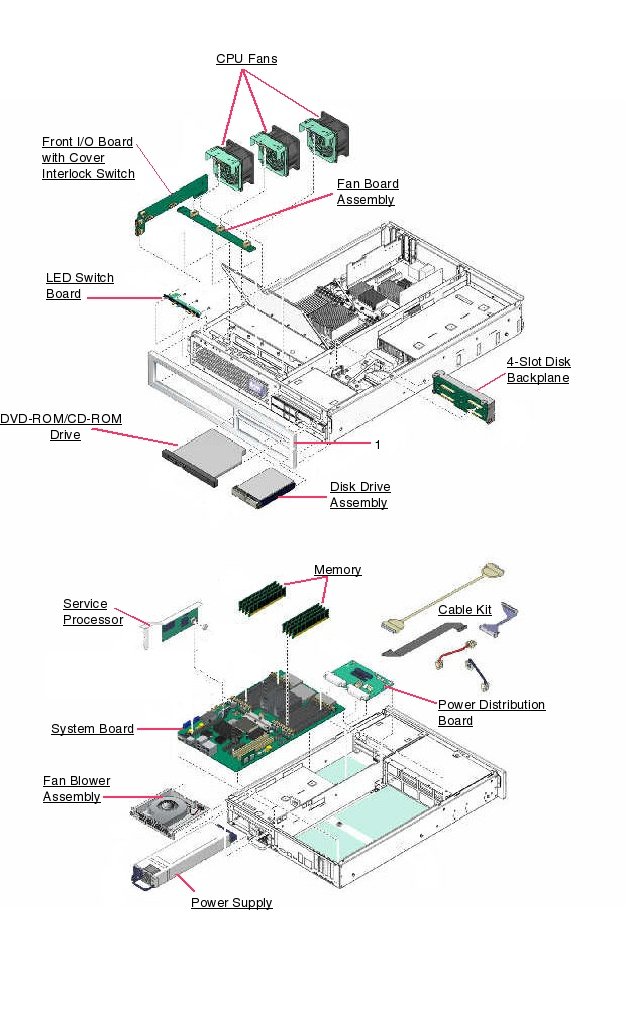

Sun Fire T2000, RoHS:YL - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
System Notes:
The non RoHS compliant Sun Fire T2000 server uses a 550 Watt power supply and uses 1 of the 2 PCI-X slots for the SAS controller. The Sun Fire T2000 ( L) server uses a 450 Watt power supply and support for the SAS controller is on the I/O board.

Batteries
Option # Manufacturing
Part #
Description Previous
Part #
n/a 150-1204 [C] 3V Lithium battery, n/a
Cables
Option # Manufacturing
Part #
Description Previous
Part #
X311L Localized Power Cord Kit - North America/Asia,
180-1097 [C] IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black, n/a
X312E Localized Power Code Kit - China,
180-1982 [C] IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M, n/a
X312F Localized Power Cord Kit - Argentina,
180-1999 [C] IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black, n/a
X312G Localized Power Cord Kit - Korea,
180-1662 [C] IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black, n/a
X312L Localized Power Cord Kit - Continental Europe,
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, n/a
X314L Localized Power Cord Kit - Swiss,
180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black, n/a
X317L Localized Power Cord Kit - U.K.,
180-1997 [C] IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black, n/a
X320A Localized Power Cord Kit - North America/Asia,
180-2164 [C] IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black, n/a
X332T International Power Cord Kit,
180-2071 [C] Blue 16A IEC 309 to IEC 320 C13 International 4.0M, n/a
X333A-25-10-IL Localized Power Cord Kit Israel,
180-2130 [C] IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black, n/a
X333A-25-15-JP Localized Power Cord Kit Japan,
180-2243 [C] IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black, n/a
X340L Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070 [C] NEMA L6-20P to IEC 320 C13 - 4.0M, n/a
X383L Localized Power Cord Kit - Danish,
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black, n/a
X384L Localized Power Cord Kit - Italian,
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black, n/a
X386L Localized Power Cord Kit - Australian,
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black, n/a
n/a 530-3100 RJ45F to DB9F Adapter, n/a
n/a 530-3361 CPU/Memory to I/O Board Cable, n/a
n/a 7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
n/a F530-3686 [F] Cable Kit, L n/a
  • 530-3362
  • Front I/O Board to System Board Cable,
n/a
  • 530-3364
  • Disk Backplane Power Cable,
n/a
  • 530-3367
  • PDB to System Board (DVD/PSU/I2C) cable,
n/a
  • 530-3440
  • SAS Cable Set,
n/a
    • 530-3436
    • HDD0 to PHY0 SAS Cable, 415mm,
n/a
    • 530-3437
    • HDD1 to PHY1 SAS Cable, 603mm,
n/a
    • 530-3438
    • HDD2 to PHY2 SAS Cable, 474mm,
n/a
    • 530-3439
    • HDD3 to PHY3 SAS Cable, 582mm,
n/a
  • 541-0745
  • Blower Cable,
n/a
  • 541-1472
  • Bus Bar Set,
n/a
  • 541-1474
  • DVD Cable Assembly, L
n/a
    • 530-3365
    • DVD Cable,
n/a
Communication
Option # Manufacturing
Part #
Description Previous
Part #
X6000A 2 375-3424 [C] PCI Express Sun Crypto Accelerator 6000, n/a
X1236A-Z [S] 375-3382 [C] Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile, n/a
X1333A-4 [S] 375-3418 [C] Infiniband PCI-X Card, L n/a
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-7503 [F] 4-Slot Disk Backplane, L n/a
Disks
Option # Manufacturing
Part #
Description Previous
Part #
XRA-SS2CD-146G10KZ [S] 540-7151 [C] 146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets, n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Nemo Bracket,
n/a
  • Nemo Bracket with Insulator,
n/a
XRA-SS2CD-73G10KZ [S] 540-6611 [C] 73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets, n/a
  • Seagate ST973401SS [ST973401SSUN72G]
    (73GB - 10000 RPM - SAS Disk),
n/a
  • Fujitsu MAY2073RC [MAY2073RCSUN72]
    (73GB - 10000 RPM - SAS Disk),
n/a
  • Seagate ST973402SS [ST973402SSUN72G]
    (73GB - 10000 RPM - SAS Disk),
n/a
  • Fujitsu MBB2073RC [MBB2073RCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC101473CSS300 [H101473SCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk),
n/a
  • Nemo Bracket,
n/a
  • Nemo Bracket with Insulator,
n/a
Ethernet
Option # Manufacturing
Part #
Description Previous
Part #
X1027A-Z 3 501-7283 [C] PCI Express Dual 10-Gigabit Ethernet Fiber n/a
X4447A-Z 511-1422 [C] PCI Express Quad Gigabit Ethernet UTP 501-7606 [C]
  • 371-2207
  • Bracket Low-Profile,
n/a
560-2884 Ship Kit for Gigabit Ethernet options n/a
  • 371-2348
  • Bracket Standard,
n/a
X7281A-2 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF, n/a
X4150A-2 [S] 501-7415 [C] GigaSwift Ethernet UTP (GCS), n/a
X4151A-2 [S] 501-7430 [C] GigaSwift Ethernet MMF (GFS), n/a
X5544A-4 [S] 10Gb PCI-X Ethernet Adapter, no transceiver,
501-7413 [C] 10Gb PCI-X Ethernet Adapter, n/a
  • 370-7665
  • Bracket Standard 10Gb PCI-X Ethernet,
n/a
  • 370-7792
  • Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
X7280A-2 [S] 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
n/a 501-7606 [C] PCI Express Quad Gigabit Ethernet UTP, n/a
  • 371-2207
  • Bracket Low-Profile,
n/a
  • 371-2348
  • Bracket Standard,
n/a
n/a 7054729 [C] PCI Express Dual Gigabit Ethernet UTP 371-0905 [C]
n/a 7054890 [C] PCI Express Dual 10-Gigabit Ethernet Fiber 501-7283 [C]
n/a 7055021 [C] PCI Express Quad Gigabit Ethernet UTP 511-1422 [C]
  • 371-2207
  • Bracket Low-Profile,
n/a
n/a 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
3 Requires SR X5558A or LR X5558A XFP Transceiver.
Fan
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-6917 [F] Server Fan Board (A65/A87), n/a
n/a 541-0275 [C] CPU fan, L n/a
n/a 541-0645 [C] Rear Fan Tray, n/a
Fibre Channel
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCI2FC-QF4 375-3294 [C] 4Gb PCI-X Dual FC Host Adapter, n/a
SG-XPCIE1FC-EM4 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE1FC-QF4 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE2FC-EM4 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCIE2FC-QF4 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCI1FC-EM2 [S] 375-3304 [C] 2Gb PCI-X Single FC Host Adapter, n/a
SG-XPCI1FC-EM4-Z [S] 375-3398 [C] 4Gb PCI-X Single FC Host Adapter, n/a
SG-XPCI1FC-QF4 [S] 375-3354 [C] 4Gb PCI-X Single FC Host Adapter, n/a
SG-XPCI1FC-QL2 [S] 375-3383 [C] 2Gb PCI-X Single FC Host Adapter, n/a
SG-XPCI2FC-EM2 [S] 375-3305 [C] 2Gb PCI-X Dual FC Host Adapter, n/a
SG-XPCI2FC-EM4-Z [S] 375-3399 [C] 4Gb PCI-X Dual FC Host Adapter, n/a
SG-XPCI2FC-QF2-Z [S] 375-3363 [C] 2Gb PCI/PCI-X Dual FC Host Adapter, n/a
  • 240-4839
  • Low Profile Bracket,
n/a
Graphics
Option # Manufacturing
Part #
Description Previous
Part #
X3000A [S] 375-3545 [C] XVR-300 x8 Graphics Accelerator, n/a
530-3474 [C] DVI-A(M) to HD15F Adapter, 49mm, n/a
530-3998 4 [C] DMS-59 to Dual DVI-I Cable, 215mm, n/a
X3777 [S] 375-3433 [C] XVR-200 Graphics Accelerator, n/a
4 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-6978 [F] Front I/O Board w/Cover Interlock Switch, L n/a
Memory
Option # Manufacturing
Part #
Description Previous
Part #
X7800A [S] 1GB (2 × 512MB DDR2) Memory Expansion Kit,
370-6207 [C] 512MB DDR2 DIMM, 533 MHz, n/a
X7801A [S] 2GB (2 × 1GB DDR2) Memory Expansion Kit,
370-6208 [C] 1GB DDR2 DIMM, 533 MHz, n/a
X7802A [S] 4GB (2 × 2GB DDR2) Memory Expansion Kit,
370-6209 [C] 2GB DDR2 DIMM, 533 MHz, n/a
X7803A [S] 8GB (2 × 4GB DDR2) Memory Expansion Kit
370-6210 [C] 4GB DDR2 DIMM, n/a
Miscellaneous
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-6916 [F] LED/Switch Board (A65/A87), n/a
Power
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-7021 5 [F] Power Distribution Board, L n/a
n/a F300-1735 [C] Type A208 450 Watt AC Input Power Supply, n/a
  • Type A208 450 AC Input Watt Power Supply, L
n/a
  • Type A208 450 Watt AC Input Power Supply, L
n/a
  • Type A208 450 Watt Power Supply, L
n/a
5 An electronic copy of the chassis serial number is located in a CPROM at U20.
Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system.
The Sun Fire T2000 Server Service Manual describes the required service commands.
Rack
Option # Manufacturing
Part #
Description Previous
Part #
n/a 370-7668 [C] Cable Management Arm, n/a
n/a 370-7669 [C] Slide Rail Kit, n/a
Removable Media
Option # Manufacturing
Part #
Description Previous
Part #
n/a 390-0251 [F] Slimline 8X DVD-ROM / 24X CD-Writer, n/a
n/a 541-1474 DVD Cable Assembly, L n/a
  • 530-3365
  • DVD Cable,
n/a
SCSI
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCI8SAS-E-Z 375-3488 [C] 3Gb PCI-X SAS 8-Port Host Adapter, n/a
SG-XPCIE2SCSIU320Z 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, n/a
SG-XPCIE8SAS-E-Z 375-3487 [C] PCI Express 8-Port Host Adapter, n/a
SGX-SAS6-EXT-Z 375-3641 [C] PCI Express 8-Port 6Gbps SAS HBA (LSI), n/a
SGXPCI1SCSILM320-Z [S] 375-3366 [C] PCI/PCI-X Single Ultra320 SCSI Adapter n/a
SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3537 [C] 8-Port SAS RAID External HBA, n/a
System Board
Option # Manufacturing
Part #
Description Previous
Part #
n/a 541-1438 [F] 0MB 6-Core 1.0GHz System Board, L n/a
  • 541-1437-01
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-1453 [F] 0MB 8-Core 1.2GHz System Board, L n/a
  • 541-1437-01
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-1454 [F] 0MB 8-Core 1.0GHz System Board, L n/a
  • 541-1437-01
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-1455 [F] 0MB 4-Core 1.0GHz System Board, L n/a
  • 541-1437-01
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2149 [F] 0MB 8-Core 1.4GHz System Board, L n/a
  • 541-1437-01
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2405 [F] 0MB 6-Core 1.0GHz System Board, L n/a
  • 541-1437-02
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2407 [F] 0MB 8-Core 1.2GHz System Board, L n/a
  • 541-1437-02
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2408 [F] 0MB 8-Core 1.0GHz System Board, L n/a
  • 541-1437-02
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2409 [F] 0MB 4-Core 1.0GHz System Board, L n/a
  • 541-1437-02
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
n/a 541-2436 [F] 0MB 8-Core 1.4GHz System Board, L n/a
  • 541-1437-02
  • System Board Assembly w/o UltraSPARC T1, L
n/a
    • CPU/Memory Board, L
n/a
    • I/O Board, L
n/a
    • 530-3361
    • CPU/Memory to I/O Board Cable,
n/a
NOTE: The I/O and System Boards are a single assembly.
System Service Processor
Option # Manufacturing
Part #
Description Previous
Part #
n/a 501-7500 [F] Service Processor, L n/a
  • 3V Lithium battery,
n/a
  • 525-2146 [F]
  • SSCC NVRAM,
n/a
n/a 501-7764 [F] Service Processor, L n/a
  • 3V Lithium battery,
n/a
  • 525-2146 [F]
  • SSCC NVRAM,
n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

Sun Fire T2000, RoHS:YL Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 530-3440 SAS Cable Set,
-
  • 530-3436
  • HDD0 to PHY0 SAS Cable, 415mm,
-
  • 530-3437
  • HDD1 to PHY1 SAS Cable, 603mm,
-
  • 530-3438
  • HDD2 to PHY2 SAS Cable, 474mm,
-
  • 530-3439
  • HDD3 to PHY3 SAS Cable, 582mm,
1 541-0243 Front Bezel Assembly,
NS 330-3955 Power Supply Air Baffle/Damper,
NS 530-2889 RJ45 to DB25 Serial Port Adapter,
NS 530-3623 [C] Shielded RJ45 to RJ45 Cable, 4M,
NS 541-0229 Chassis Subassembly,
  • 541-0645 [C]
  • Rear Fan Tray,
NS
  • 541-0231
  • Empty 4-Disk Drive/DVD Bay Assembly,
NS 541-0251 Chassis Assembly, L
  • LED/Switch Board (A65/A87),
  • Front I/O Board w/Cover Interlock Switch, L
NS 541-0325 DVD Bezel,
NS 541-0605 [F] Blank Disk Drive Filler,
NS 541-0720 Front Top Cover Assembly with Door,
NS 541-1456 PCI Filler Panel,
NS 541-1461 Chassis Subassembly, L
NS 541-1462 Rear Top Cover Assembly,
NS 541-1464 CPU Fan Guard,
NS 541-1472 Bus Bar Set,
  Copyright � 2012 Sun Microsystems, Inc.  All rights reserved.
 Feedback
