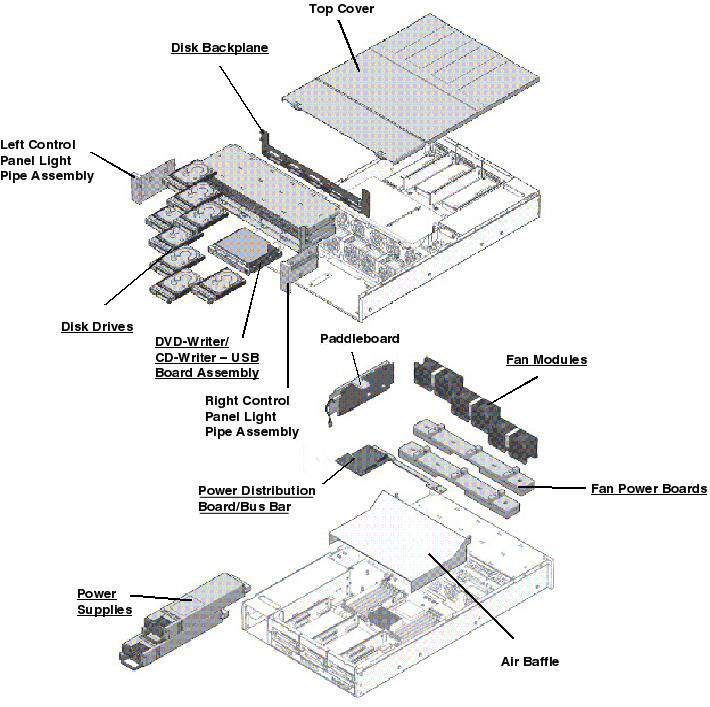

Sun SPARC Enterprise T5240 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] CR2032 3V Battery, n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X311L Localized Power Cord Kit - North America/Asia,
180-1097 [C] IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black, n/a
X312E Localized Power Code Kit - China,
180-1982 [C] IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M, n/a
X312F Localized Power Cord Kit - Argentina,
180-1999 [C] IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black, n/a
X312G Localized Power Cord Kit - Korea,
180-1662 [C] IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black, n/a
X312L Localized Power Cord Kit - Continental Europe,
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black, n/a
X314L Localized Power Cord Kit - Swiss,
180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black, n/a
X317L Localized Power Cord Kit - U.K.,
180-1997 [C] IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black, n/a
X320A Localized Power Cord Kit - North America/Asia,
180-2164 [C] IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black, n/a
X332T International Power Cord Kit,
180-2071 [C] Blue 16A IEC 309 to IEC 320 C13 International 4.0M, n/a
X333A-25-10-IL Localized Power Cord Kit Israel,
180-2130 [C] IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black, n/a
X333A-25-15-JP Localized Power Cord Kit Japan,
180-2243 [C] IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black, n/a
X333A-25-15-TW Localized Power Cord Kit - Taiwan,
180-2333 [C] IEC 320 C13 to CNS 690 - 15A/125V 2.5M Black, n/a
X333F-25-15-JP Localized Power Cord Kit Japan,
180-2244 [C] IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black, n/a
X340L Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070 [C] NEMA L6-20P to IEC 320 C13 - 4.0M, n/a
X383L Localized Power Cord Kit - Danish,
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black, n/a
X384L Localized Power Cord Kit - Italian,
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black, n/a
X386L Localized Power Cord Kit - Australian,
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black, n/a
X9237-1-A Power Cord Jumper X-Option 1.0M,
180-2082 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M, n/a
X9238-1-A Power Cord Jumper X-Option 2.5M,
180-2085 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M, n/a
n/a 530-3100 RJ45F to DB9F Adapter, n/a
n/a 541-3370 [F] PDB to System Board Ribbon Cable w/ insulator, n/a
  • 343-0786
  • Kapton Tape,
n/a
  • 530-3956 [F]
  • PDB to System Board Ribbon Cable,
n/a
n/a 7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X6000A 1 375-3424 [C] PCI Express Sun Crypto Accelerator 6000, n/a
X1236A-Z [S] 375-3382 [C] Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile, n/a
X4237A [S] 375-3606 [C] Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
NOTE: X-Option X4237A (Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter) is NOT supported in PCI Express slots 0 or 3.
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 501-7730 [F] 8-Slot Disk Backplane, PATA DVD, n/a
n/a 501-7760 [F] 16-Slot Disk Backplane, PATA DVD, L n/a
n/a 511-1256 [F] 8-Slot Disk Backplane, SATA DVD, n/a
n/a 511-1257 [F] 16-Slot Disk Backplane, SATA DVD, L n/a
n/a 542-0355 [F] Backplane Retainer Clip Kit n/a
  • 330-5301
  • Grey 2U Backplane Retainer Clip
 n/a
NOTE: Reference PATA/SATA DVD Drive Compatibility.
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
SESX3Y11Z 540-7841 [C] 32GB Solid State Drive SATA Assembly n/a
  • 32GB Solid State Drive, SATA Interface,
n/a
  • Marlin 2.5" Bracket,
n/a
SESX3A11Z [S] 540-7354 [C] 73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, n/a
  • Fujitsu MAY2073RC [MAY2073RCSUN72]
    (73GB - 10000 RPM - SAS Disk),
n/a
  • Seagate ST973402SS [ST973402SSUN72G]
    (73GB - 10000 RPM - SAS Disk),
n/a
  • Fujitsu MBB2073RC [MBB2073RCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC101473CSS300 [H101473SCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk),
n/a
  • Marlin 2.5" Bracket,
n/a
SESX3A21Z [S] 540-7361 [C] 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks, n/a
  • Seagate ST973451SS [ST973451SSUN72G]
    (73GB - 15000 RPM - SAS Disk),
n/a
  • Marlin 2.5" Bracket,
n/a
SESX3C11Z 2 [S] 540-7355 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Marlin 2.5" Bracket,
n/a
540-7868 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:, n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Seagate ST9146803SS [ST914603SSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC103014CSS600 [H103014SCSUN146G]
    (146GB - 10000 RPM - SAS Disk),
n/a
  • Marlin 2.5" Bracket,
n/a
SESX3G11Z [S] 540-7869 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:, n/a
  • Seagate ST93000SSUNG [ST930003SSUN300G]
    (300GB - 10000 RPM - SAS Disk),
n/a
  • Hitachi HUC103030CSS600 [H103030SCSUN300G]
    (300GB - 10000 RPM - SAS Disk),
n/a
  • Marlin 2.5" Bracket,
n/a
SESX3G12Z [S] 542-0388 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)
 n/a
  • Marlin 2.5" Bracket,
n/a
2 Assembly 540-7868 became the primary component in option SESX3C11Z, and 540-7355 became the secondary component, in April 2009. (WO_41247) (WO_40981)
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
SESX7XA1Z 501-7489 3 [C] 10GbE XAUI Card, n/a
SESX7XT1Z 375-3301 [C] 10Gb/sec XFP Optical Transceiver Short Range (SR), L n/a
SESX7XT2Z 375-3495 [C] 10Gb/sec XFP Optical Transceiver Long Range (LR), n/a
X1027A-Z 501-7283 [C] PCI Express Dual 10-Gigabit Ethernet Fiber n/a
X4447A-Z 511-1422 [C] PCI Express Quad Gigabit Ethernet UTP 501-7606 [C]
  • 371-2207
  • Bracket Low-Profile,
n/a
560-2884 Ship Kit for Gigabit Ethernet options n/a
  • 371-2348
  • Bracket Standard,
n/a
X5558A 375-3301 [C] 10Gb/sec XFP Optical Transceiver Short Range (SR), L n/a
X5560A-Z 375-3495 [C] 10Gb/sec XFP Optical Transceiver Long Range (LR), n/a
X7280A-2 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
X7281A-2 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF, n/a
n/a 501-7606 [C] PCI Express Quad Gigabit Ethernet UTP, n/a
  • 371-2207
  • Bracket Low-Profile,
n/a
  • 371-2348
  • Bracket Standard,
n/a
n/a 7054729 [C] PCI Express Dual Gigabit Ethernet UTP 371-0905 [C]
n/a 7054890 [C] PCI Express Dual 10-Gigabit Ethernet Fiber 501-7283 [C]
n/a 7055021 [C] PCI Express Quad Gigabit Ethernet UTP 511-1422 [C]
  • 371-2207
  • Bracket Low-Profile,
n/a
n/a 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
3 Requires one XFP Transceiver
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2211 [F] Fan Power Board, n/a
  • 330-4463
  • Top Bracket,
n/a
  • 330-4464
  • Bottom Bracket,
n/a
  • 501-7695
  • Fan Board,
n/a
n/a 541-2940 4 5 [C] CPU Dual Fan Assembly w/ Metal Fingerguards, n/a
  • 310-0119
  • Delta Fan, 60×38mm, 2U,
n/a
n/a 541-3290 6 [C] CPU Dual Fan Assembly w/ Metal Fingerguards, n/a
  • 310-0210
  • Japan Servo Fan, 60×38mm, 2U,
n/a
4 Fan 541-2940 is used with 8-Slot Backplanes.
5 Fan 541-2940 is used with 16-Slot PATA DVD Backplanes.
6 Fan 541-3290 is used with 16-Slot SATA DVD Backplanes.
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE1FC-EM4 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE1FC-EM8-Z 371-4295 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE1FC-QF4 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE1FC-QF8-Z 371-4324 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter, n/a
SG-XPCIE2FC-EM4 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCIE2FC-EM8-Z 371-4306 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCIE2FC-QF4 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCIE2FC-QF8-Z 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
Graphics
Option # Manufacturing
Part #		 Description Previous
Part #
X3000A [S] 375-3545 [C] XVR-300 x8 Graphics Accelerator, n/a
530-3474 [C] DVI-A(M) to HD15F Adapter, 49mm, n/a
530-3998 7 [C] DMS-59 to Dual DVI-I Cable, 215mm, n/a
X4240A [S] 605-4668 XVR-300X16 Graphics Accelerator, n/a
  • XVR-300 Graphics Accelerator,
n/a
  • 530-3474 [C]
  • DVI-A(M) to HD15F Adapter, 49mm,
n/a
  • 530-3998 8 [C]
  • DMS-59 to Dual DVI-I Cable, 215mm,
n/a
7 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
8 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2108 [F] x16/x8 PCI Express Riser Card Assembly, n/a
  • 341-4139
  • PCI Filler Panel,
n/a
  • 501-7715
  • x16/x8 PCI Express Riser Card,
n/a
  • 541-2736
  • Riser Bracket,
n/a
n/a 541-2109 [F] x8/x8 XAUI Riser Card Assembly, n/a
  • 341-4139
  • PCI Filler Panel,
n/a
  • 501-7719
  • x8/x8 XAUI Riser Card,
n/a
  • 541-2736
  • Riser Bracket,
n/a
NOTE: External I/O Expansion Unit
IDPROM
Socket Manufacturing
Part #		 Component Type Host ID
J11501 525-2344 [F] System Configuration PROM 84xxxxxx
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
SESX2A1Z [S] 2GB Memory Expansion (2 × 1GB) X-Option,
501-7952 [C] 1GB DDR2-667/PC2-5300 1.8V FBDIMM, n/a
SESX2A3Z [S] 2GB Memory Expansion (2 × 1GB) X-Option,
511-1150 [C] 1 GB DDR2-667/PC2-5300 1.5V DIMM, n/a
SESX2B1Z [S] 4GB Memory Expansion (2 × 2GB) X-Option,
501-7953 [C] 2GB DDR2-667/PC2-5300 1.8V FBDIMM, n/a
SESX2B3Z [S] 4GB Memory Expansion (2 × 2GB) X-Option,
511-1151 [C] 2GB DDR2-667/PC2-5300 1.5V DIMM, n/a
SESX2C1Z [S] 8GB Memory Expansion (2 × 4GB) X-Option,
501-7954 [C] 4GB DDR2-667/PC2-5300 1.8V FBDIMM, n/a
SESX2C3Z [S] 8GB Memory Expansion (2 × 4GB) X-Option,
511-1152 [C] 4GB DDR2-667/PC2-5300 1.5V DIMM, n/a
SESX2D3Z [S] 16GB Memory Expansion (2 × 8GB) X-Option,
511-1228 [C] 8GB DDR2-667/PC2-5300 1.5V DIMM, n/a
SEUX2MM1Z [S] 594-5205 Memory Mezzanine, n/a
  • Memory Slot Filler,
371-3651
  • 341-4167
  • Memory Mezzanine Shipping Bracket,
n/a
  • Memory Mezzanine Assembly,
n/a
    • 501-7678
    • Memory Riser,
n/a
    • 541-2473
    • Side Support Bracket,
n/a
  • 541-3064
  • Clear Plastic Memory Mezzanine Air Duct,
n/a
  • 541-3065
  • Grey Plastic Memory Mezzanine Lower Air Duct,
n/a
SEUX2MM2Z [S] 594-4996 Memory Mezzanine, n/a
  • Memory Slot Filler,
371-3651
  • 341-4167
  • Memory Mezzanine Shipping Bracket,
n/a
  • Memory Mezzanine Assembly,
n/a
    • 511-1231
    • Memory Riser,
n/a
    • 541-2473
    • Side Support Bracket,
n/a
  • 541-3064
  • Clear Plastic Memory Mezzanine Air Duct,
n/a
  • 541-3065
  • Grey Plastic Memory Mezzanine Lower Air Duct,
n/a
n/a 371-3651 Memory Slot Filler, EBS93011010, n/a
n/a 7052193 [C] 2GB DDR2-667/PC2-5300 1.5V DIMM n/a
n/a 7052205 [C] 4GB DDR2-667/PC2-5300 1.5V DIMM n/a
NOTE: Mixing of 1.8 V and 1.5 V FB-DIMMs is not supported.
NOTE: Systems shipped with 1.5V DIMMs cannot support 1.8V DIMMs
Power
Option # Manufacturing
Part #		 Description Previous
Part #
SEUX9PS51Z [S] 300-2235 [C] Type A249 1100/1200 Watt AC Input Power Supply, 300-2138 [C]
n/a 300-2105 [C] Type D204 1200 Watt DC Input Power Supply, n/a
n/a 300-2138 [C] Type A235 1100/1200 Watt AC Input Power Supply, n/a
n/a 541-2073 9 [F] Power Distribution Board/Bus Bar Assembly, n/a
  • 341-3166
  • Bus Bar Left,
n/a
  • 341-3167
  • Bus Bar Right,
n/a
  • Horizontal Power Distribution Board,
n/a
  • Vertical Power Distribution Board,
n/a
  • 371-2484
  • PDB Signal Cable,
n/a
n/a 541-4370 10 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left,
n/a
  • 341-3167
  • Bus Bar Right,
n/a
  • 371-2484
  • PDB Signal Cable,
n/a
  • Vertical Power Distribution Board,
n/a
  • Horizontal Power Distribution Board
 n/a
9 Assembly 541-2073 supports PATA DVD only.
10 Assembly 541-4370 supports SATA DVD only.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
SESX9CA1Z [S] 371-2742 [C] 1U/2U Cable Management Arm, n/a
SESX9RK1Z [S] 371-2741 [C] 1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm, n/a
SESX9RK2Z [S] 371-2740 [C] 1U/2U Snap-In Slide Rail Rackmount Kit, 730mm, n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
SESX9DV2Z 541-3493 [F] SATA DVD-Writer/CD-Writer - USB Board Assembly, n/a
  • 330-5056
  • DVD Interconnect Holder,
n/a
  • 8x SATA DVD-Writer/24x CD-Writer,
n/a
  • 8x SATA DVD-Writer/24x CD-Writer,
n/a
  • 8x SATA DVD Writer/24x CD-Writer
 n/a
  • 8x SATA DVD-Writer/24x CD-Writer, L
 390-0443
  • USB Board,
n/a
SESX9DV1Z [S] 541-2110 [F] PATA DVD-Writer/CD-Writer - USB Board Assembly, n/a
  • 330-4418
  • DVD Interconnect Holder,
n/a
  • 8x PATA DVD-Writer/24x CD-Writer,
n/a
  • USB Board,
n/a
  • 541-2111
  • DVD Bezel,
n/a
n/a 541-2732 [F] USB Assembly, n/a
  • 330-4418
  • DVD Interconnect Holder,
n/a
  • 341-4072
  • DVD Filler Panel,
n/a
  • USB Board,
n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE2SCSIU320Z 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter, n/a
SG-XPCIE8SAS-E-Z 375-3487 [C] PCI Express 8-Port Host Adapter, n/a
XTA-FAS-S3IE96GB 541-3731 96GB PCI Express Flash Accelerator F20 SAS HBA, n/a
  • 24GB Solid State Flash Memory Module,
n/a
  • Energy Storage Module (ESM),
n/a
  • PCI Express Flash Board,
511-1275 [C]
SEUX9SA2Z [S] 560-2917 [F] Cable Kit (2× Mini SAS Cables), n/a
  • 530-4077
  • 4x Mini SAS Cable, SFF-8087 to SFF-8087, 400mm,
n/a
SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3537 [C] 8-Port SAS RAID External HBA, n/a
SGXPCIESAS-R-INT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3536 11 [C] 8-Port SAS Adaptec RAID HBA, n/a
11 Reference Sun Alert article
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 341-4139 PCI Filler Panel, n/a
n/a 540-7908 [F] 8-Core 1.6GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1344
  • 8-Core 1.6GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 540-7934 [F] 8-Core 1.4GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1378
  • 8-Core 1.4GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 540-7938 [F] 4-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1391
  • 4-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 540-7939 [F] 6-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1392
  • 6-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 540-7940 [F] 8-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1393
  • 8-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 541-2528 [F] 6-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 501-7846
  • 6-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 541-2529 [F] 8-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 501-7847
  • 8-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 541-2530 [F] 8-Core 1.4GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 501-7848
  • 8-Core 1.4GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a
n/a 541-2931 [F] 4-Core 1.2GHz Motherboard Assembly, n/a
  • 330-4793
  • Memory Mezzanine Slot Filler,
n/a
  • 511-1035
  • 4-Core 1.2GHz System Board,
n/a
    • CR2032 3V Battery,
n/a
  • 525-2344 [F]
  • System Configuration PROM,
n/a
  • 541-2523
  • System Board Tray,
n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

Sun SPARC Enterprise T5240 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
1 599-3464 T5240 Base Chassis Assembly,
  • 341-4139
  • PCI Filler Panel,
  • x16/x8 PCI Express Riser Card Assembly,
    • 341-4139
    • PCI Filler Panel,
    • 501-7715
    • x16/x8 PCI Express Riser Card,
    • 541-2736
    • Riser Bracket,
  • x8/x8 XAUI Riser Card Assembly,
    • 341-4139
    • PCI Filler Panel,
    • 501-7719
    • x8/x8 XAUI Riser Card,
    • 541-2736
    • Riser Bracket,
  • 541-3370 [F]
  • PDB to System Board Ribbon Cable w/ insulator,
    • 343-0786
    • Kapton Tape,
NS
    • 530-3956 [F]
    • PDB to System Board Ribbon Cable,
NS
  • 541-2738
  • PCI Cross Beam,
NS
    • 341-3575
    • PCI Cross Beam,
NS
    • 341-3990
    • End Cap,
NS
  • 541-2956
  • Enclosure Subassembly,
NS
    • 150-4065
    • Interlock Switch Magnet,
NS
    • 540-7628
    • Chassis Subassembly,
NS
      • 541-1988
      • Top Cover,
NS
        • 150-4065
        • Interlock Switch Magnet,
NS
      • 541-2212
      • Disk Cage,
NS
        • 541-2863
        • Left Ear 2U,
NS
          • 541-2126
          • Left Side Endcap Lightpipe Assembly,
NS
            • 330-4419
            • Lightpipe Button,
NS
            • 330-4420
            • Lightpipe Holder,
NS
            • 330-4424
            • Power Button,
NS
        • 541-2864
        • Right Ear 2U,
NS
          • 330-4421
          • Right Side Endcap Lightpipe,
NS
      • 541-2958
      • Chassis Subassembly,
NS
    • 541-2075 [F]
    • Bus Bar Set,
NS
      • 341-3096
      • Long Red Bus Bar,
NS
      • 341-3104
      • Short Blue Bus Bar,
NS
    • Connector Board Assembly, PATA DVD,
NS
      • 341-3097
      • Bracket,
NS
      • 501-7720
      • Connector Board (Paddle Card), PATA DVD,
NS
      • 530-3510
      • Magnetic Interlock Switch,
NS
    • 541-2628
    • Chassis Subassembly
NS
      • 541-1988
      • Top Cover,
NS
        • 150-4065
        • Interlock Switch Magnet,
NS
      • 541-2212
      • Disk Cage,
NS
        • 541-2863
        • Left Ear 2U,
NS
          • 541-2126
          • Left Side Endcap Lightpipe Assembly,
NS
            • 330-4419
            • Lightpipe Button,
NS
            • 330-4420
            • Lightpipe Holder,
NS
            • 330-4424
            • Power Button,
NS
        • 541-2864
        • Right Ear 2U,
NS
          • 330-4421
          • Right Side Endcap Lightpipe,
NS
      • 541-2958
      • Chassis Subassembly,
NS
  • 541-2979
  • Right Mezzanine Support Bracket,
NS
  • 541-2980
  • Left Mezzanine Support Bracket,
NS 330-4684 Fan Connector Cover,
NS 341-3573 Ventilated 8-Disk Filler Panel,
NS 371-2484 PDB Signal Cable,
NS 530-2889 RJ45 to DB25 Serial Port Adapter,
NS 530-3623 [F] Shielded RJ45 to RJ45 Cable, 4M,
NS 530-3956 [F] PDB to System Board Ribbon Cable,
NS 541-2629 2.5" Disk Drive Filler Panel,
NS 541-2636 [F] Lightpipe Assembly,
NS
  • 330-4421
  • Right Side Endcap Lightpipe,
NS
  • 541-2126
  • Left Side Endcap Lightpipe Assembly,
NS
    • 330-4419
    • Lightpipe Button,
NS
    • 330-4420
    • Lightpipe Holder,
NS
    • 330-4424
    • Power Button,
NS 541-2702 Air Duct Assembly,
NS 541-3513 [F] Connector Board Assembly, SATA DVD,
NS
  • 341-3097
  • Bracket,
NS
  • Connector Board (Paddle Card), SATA DVD,
NS
  • 530-3510
  • Magnetic Interlock Switch,
NS 560-2911 [F] SAS Cable Kit,
NS
  • 530-3855
  • Mini SAS Cable, 560mm,
NS
  • 530-3862
  • Mini SAS Cable, 390mm,
NS
  • 530-3904
  • Mini SAS Cable, 460mm,
  Copyright � 2012 Sun Microsystems, Inc.  All rights reserved.
 Feedback
