External I/O Expansion Unit

Codename: Stallion

Servers: SPARC Enterprise T5120, T5140, T5220, T5240, T5440
SPARC Enterprise M4000, M5000, M8000, M9000

SENY8BE1Z SENY8BE1Z-TWN
1 PCI Express 1 PCI Express (Taiwan)
SENY8BE2Z SENY8BE2Z-TWN
1 PCI Express 1 PCI Express (Taiwan)
SENY8BX1Z SENY8BX1Z-TWN
1 PCI-X 1 PCI-X (Taiwan)



Table Legend
[F] = Field Replaceable Unit (FRU)

CODE PART # DESCRIPTION
1
1
NS
NS
NS
599-3105
599-3410
300-1701 [F]
341-0704
541-1367
I/O Expansion Unit Assembly,
I/O Expansion Unit Assembly, Taiwan,
A195 Power Supply,
Front Bezel,
I/O Boat Filler,
1
1
NS
2
2
3
4
5
NS
6
1
541-0314 [F]
541-2555 [F]
180-2118
180-2119
180-2162
341-0727
501-6937
501-7053
530-3820
530-3821
541-0315

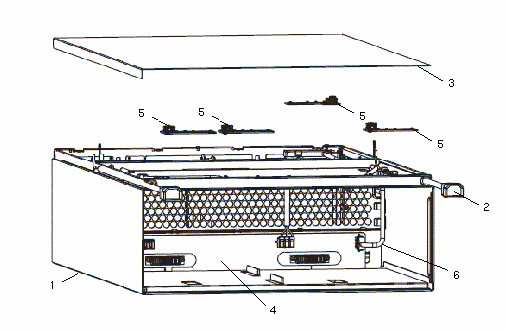

Chassis Assembly/FRU,
Chassis Assembly/FRU, Taiwan,
Front AC Power Cable,
Rear AC Power Cable,
Rear AC Power Cable, Taiwan,
Top Cover,
Centerplane,
LED Board,
Front LED Cable,
Rear LED Cable,
Chassis,
1
1
NS
2
2
3
4
5
NS
6
1
541-2997 [F]
541-2998 [F]
180-2118
180-2119
180-2162
341-0727
501-6937
501-7053
530-3820
530-3821
541-0315
Chassis Assembly/FRU,
Chassis Assembly/FRU, Taiwan,
Front AC Power Cable,
Rear AC Power Cable,
Rear AC Power Cable, Taiwan,
Top Cover,
Centerplane, 1
LED Board,
Front LED Cable,
Rear LED Cable,
Chassis,
NS 501-7040 [F] Fibre Link Card, SENX8LK2Z / SENX8LK2P (w/ 2× 10M Cables)
Fibre Link Card, SENX8LK3Z / SENX8LK3P (w/ 2× 25M Cables)
NS 537-1100 [F] Fibre Link Cable, 10M, SENX8FC1Z / SENX8FC1P
NS 537-1070 [F] Fibre Link Cable, 25M, SENX8FC2Z / SENX8FC2P
NS 501-7041 [F] Copper Link Card, SELX8LK1Z / SELX8LK1P (w/ 2× 4M Cables)
NS 530-3965 [F] Copper Link Cable, 4M
NS 537-1077 [F] Copper Link Cable, 3M (discontinued)


7
NS
-
NS
596-5631
7010300
541-0507 [F]
541-0530
330-4016
541-0319 [F]

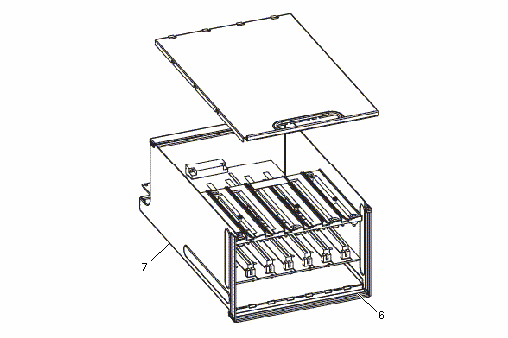

PCI Express I/O Boat and Carriers, SENX8TE1Z (w/ 7× Carriers)
PCI Express I/O Boat and Carriers, SENX8TE1P (w/ 7× Carriers)
PCI Express I/O Boat,
PCI Express Blank Assembly, (×6)
PCI Express Blank,
PCI-X/PCI Express Carrier,

7
NS
-
NS
596-5632
541-0316 [F]
541-0531
330-4015
541-0319 [F]
PCI-X I/O Boat and Carriers, SENX8TX1Z (w/ 7× Carriers)
PCI-X I/O Boat,
PCI-X Blank Assembly, (×6)
PCI-X Blank,
PCI-X/PCI Express Carrier,
1 501-6937-08 (WO_42194)

References

  1. External I/O Expansion Unit For SPARC Enterprise M4000/M5000/M8000/M9000 Servers Documentation.
  2. External I/O Expansion Unit For SPARC Enterprise T5120/T5140/T5220/T5240/T5440 Servers Documentation.
    All platforms:
  3. Just The Facts.
