Hitachi HUC106030CSS600 (300.0GB)

2 1/2" 10000 RPM Serial Attached SCSI 6.0Gb/s

Option XRB-SS2CF-300G10K2
Option XRB-SS2CM-300G10K2
Option XRB-SS2ND-300G10K2
Option XRA-SS2NF-300G10K2
Options SELX3E11Z / SEMX3C11Z / SEVX3G11Z
Options SESX3G12Z / SE6X3G12Z
Options 7100410 / 7100526

390-0487
15mm Height
Cobra D
540-7903 540-7988
Nemo Bkt FRU
M4000/M5000
15mm Bracket 541-3004
SELX3E11Z		 Nemo Bkt FRU
M8000/M9000
15mm Bracket 541-3004
SEMX3C11Z
542-0384 542-0387 542-0388
NEBS Nemo Bracket FRU
15mm Bracket 541-3004
XRB-SS2ND-300G10K2		 Manta Ray Bracket FRU
Bracket 371-4760
XRB-SS2CM-300G10K2		 Marlin Bracket FRU
15mm Bracket 541-2123
XRB-SS2CF-300G10K2
SESX3G12Z
SE6X3G12Z
542-0422 7012423 7013660 7020384
15mm Bkt 541-2123
XRA-SS2NF-300G10K2		 Nemo Bkt FRU
M4000/M5000
15mm Bracket 541-3004
Option 7100410
Option SEVX3G11Z		 Nemo Bkt FRU
M8000/M9000
15mm Bracket 541-3004
Option 7100407		 Nemo Bkt FRU
M8000/M9000
15mm Bracket 541-3004
Option 7100407

Notes

  1. Drive 390-0451 was released in February 2011. (E0002604)
  2. Assemblies 542-0384, 542-0387, 542-0388 and 542-0422 were released in February 2011. (E0002604)
  3. Assembly 7012423 with drive 390-0487 was released in March 2011. (E0003288)
  4. Assembly 7013660 with drive 390-0487 was released in March 2011. (E0003066)
  5. Assembly 7020384 (superseding 7013660) with drive 390-0487 was released in September 2011. (E0005261)
  6. Drive 390-0487 was added to 540-7903 in March 2011. (E0001553)
  7. Drive 390-0487 was added to 540-7988 in March 2011. (E0003066)

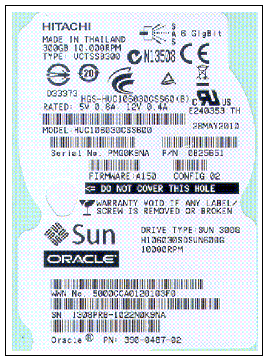

  8. The Hitachi model number on the serial number label is HUC106030CSS600.
  9. The Sun model number on the serial number label is H106030SDSUN300G.
  10. The Product Identification in SCSI Inquiry data bytes 16-31 is H106030SDSUN300G.
