2-Slot x8/x16 PCI Express Riser

Servers: SPARC Enterprise T5220, T5240

501-7715 541-2108

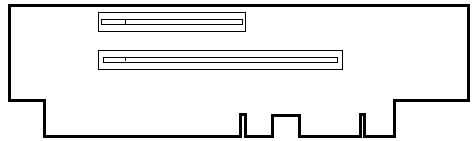

x8/x16 PCI Express Riser
PCI Express Riser FRU
501-7715 + Bracket 541-2531


SPARC Enterprise T5220 Codename: Huron 2U
SPARC Enterprise T5240 Codename: Maramba 2U

T5220 Notes

  1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
  2. Slot 0/3 and 1/4 PCI Express Channels are electrically four lanes wide.
  3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
  4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

T5240 Notes

  1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
  2. Slot 0/3 and 1/4 PCI Express Channels are electrically eight lanes wide.
  3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
  4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

References

  1. Sun SPARC Enterprise T5220 Server Documentation.
  2. Sun SPARC Enterprise T5240 Server Documentation.
