Servers:	SPARC Enterprise T5120, T5140, T5220, T5240, T5440 Sun Blade T6320
Telco:	Netra T5220, T5440

Options: X4200A / X4203A / X4204A
X4200AF / X4203AF / X4290AF
SESX2A1Z / SESX2B1Z / SESX2C1Z / SESX2D1Z
SESX2A2Z / SESX2B2Z
SEVX1CB1Z / SEVX1CC1Z / SEVX1CD1Z
SEVX1DB1Z / SEVX1DC1Z / SEVX1DD1Z
SEVX1EB1Z / SEVX1EC1Z / SEVX1ED1Z / SEVX1EC2Z

501-7952	501-7953	501-7954

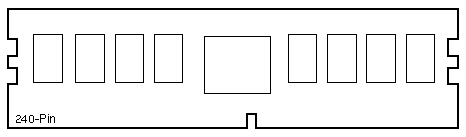

371-2142 DDR2-667/PC2-5300 2-Rank/512Mbit SDRAM 1.8V VDD/VDDQ 1GB Fully Buffered DIMM 1GB FRU 501-7952 2GB Option X4200A 2GB Option SESX2A1Z	371-2143 DDR2-667/PC2-5300 2-Rank/512Mbit SDRAM 1.8V VDD/VDDQ 2GB Fully Buffered DIMM 2GB FRU 501-7953 4GB Option X4203A 4GB Option SESX2B1Z	371-2145 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.8V VDD/VDDQ 4GB Fully Buffered DIMM 4GB FRU 501-7954 8GB Option X4204 8GB Option SESX2C1Z 16GB Option SEVX1EC1Z 32GB Option SEVX1CC1Z 32GB Option SEVX1DC1Z

511-1161	511-1262	511-1264	511-1408
371-2144 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.8V VDD/VDDQ 2GB Fully Buffered DIMM 2GB FRU 511-1161 4GB Option X4203AF 4GB Option SESX2B2Z 8GB Option SEVX1CB1Z 8GB Option SEVX1DB1Z 8GB Option SEVX1EB1Z	371-2146 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.8V VDD/VDDQ 8GB Fully Buffered DIMM 8GB FRU 511-1262 16GB Option X4290AF 16GB Option SESX2D1Z 16GB Option SEVX1CD1Z 16GB Option SEVX1DD1Z 32GB Option SEVX1ED1Z	371-4070 DDR2-667/PC2-5300 1-Rank/1Gbit SDRAM 1.8V VDD/VDDQ 1GB Fully Buffered DIMM 1GB FRU 511-1264 2GB Option X4200AF 2GB Option SESX2A2Z	371-4597 DDR2-800/PC2-6400 2-Rank/1Gbit SDRAM 1.8V VDD/VDDQ 4GB Fully Buffered DIMM 4GB FRU 511-1408 8GB Option SESX2C4Z 16GB Option SEVX1EC2Z

Netra T5220 Codename: Turgo Netra T5440 Codename: Congo SPARC Enterprise T5120 Codename: Huron 1U SPARC Enterprise T5220 Codename: Huron 2U SPARC Enterprise T5140 Codename: Maramba 1U SPARC Enterprise T5240 Codename: Maramba 2U SPARC Enterprise T5440 Codename: Batoka Sun Blade T6320 Codename: Glendale

T5120/T5220/T6320 Notes

1. Quantity and size of components are dependent on DIMM size and manufacturer.
2. Four, eight, and sixteen FBDIMM configurations are supported.
3. All FBDIMMs in a Branch must have the same Sun part number.
4. All FBDIMMs in the server must be the same capacity (i.e. all 1GB, all 2GB, all 4GB, or if supported, all 8GB).
5. The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.

T5140/T5240 Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs within a CMP must have the same memory size.
5. If Firmware is < 7.1.7.f, all FBDIMMs must have the same memory size.

6. Different size FBDIMMs on different CMPs are supported
   (i.e. FBDIMMs in CMP0 can have different memory size than those in CMP1)
   with Firmware 7.1.7.f and Firmware 7.2.2.e, but
   BugID 6879970 affects mixed memory configurations with Firmware 7.2.2.e,
7. Firmware 7.2.6 (Patch 139444-06) fixes BugID 6879970.
8. FBDIMMs within a Branch must have the same Sun part number.
9. Mixing 1.8V and 1.5V FBDIMMs is not supported.
10. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.d.

Netra T5440 Notes

1. All FBDIMMs must have the same memory size.
2. FBDIMMs within a Branch must have the same Sun part number.
3. Mixing 1.8V and 1.5V FBDIMMs is not supported.
4. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.d.
5. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
6. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.

SPARC Enterprise T5440 Notes

1. All FBDIMMs within a single CPU/Memory module must have the same memory size.
2. FBDIMMs on different CPU/Memory modules can be of different sizes.
3. FBDIMMs within a Branch must have the same Sun part number.
4. 4GB 800MHz FBDIMMs are only available on 1.6GHz systems, and cannot be mixed with FBDIMMs of other speeds.
5. Install the first four FBDIMMs on the CPU/Memory Module.
6. Install the next four FBDIMMs on the Memory Module in the D1 slots.
7. Install the next eight FBDIMMs on the Memory Module in the D2 and D3 slots.

References

1. Sun Netra T5220 Server Documentation.
2. Sun Netra T5440 Server Documentation.
3. Sun SPARC Enterprise T5120 Server Documentation.
4. Sun SPARC Enterprise T5220 Server Documentation.
5. Sun SPARC Enterprise T5140 Server Documentation.
6. Sun SPARC Enterprise T5240 Server Documentation.
7. Sun SPARC Enterprise T5440 Server Documentation.
8. Sun Blade T6320 Server Module Documentation.

Servers:	SPARC Enterprise T5140, T5240 Sun Blade T6340
Telco:	Netra T5440, T6340

Options T6340-X-21 / T6340-X-22 / T6340-X-24 / T6340-X-28
Options SESX2A3Z / SESX2B3Z / SESX2C3Z / SESX2D3Z

511-1150	511-1151	511-1152	511-1228
371-4138 DDR2-667/PC2-5300 1-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 1GB Fully Buffered DIMM 1GB FRU 511-1150 2GB Option T6340-X-21 2GB Option SESX2A3Z not supported on Netra T5440	371-4139 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 2GB Fully Buffered DIMM 2GB FRU 511-1151 4GB Option T6340-X-22 4GB Option SESX2B3Z	371-4140 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 4GB Fully Buffered DIMM 4GB FRU 511-1152 8GB Option T6340-X-24 8GB Option SESX2C3Z	371-4141 DDR2-667/PC2-5300 2-Rank/2Gbit SDRAM 1.5V VDD/VDDQ 8GB Fully Buffered DIMM 8GB FRU 511-1228 16GB Option T6340-X-28 16GB Option SESX2D3Z

7052193	7052205
7052194 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 2GB Fully Buffered DIMM 2GB Assembly 7052193 No Option	7052204 DDR2-667/PC2-5300 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 4GB Fully Buffered DIMM 4GB Assembly 7052205 No Option

Netra T5440 Codename: Congo Netra T6340 Codename: Scottsdale-LP SPARC Enterprise T5140 Codename: Maramba 1U SPARC Enterprise T5240 Codename: Maramba 2U Sun Blade T6340 Codename: Scottsdale

T5140/T5240 Notes

1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
4. All FBDIMMs within a CMP must have the same memory size.
5. If Firmware is < 7.1.7.f, all FBDIMMs must have the same memory size.

6. Different size FBDIMMs on different CMPs are supported
   (i.e. FBDIMMs in CMP0 can have different memory size than those in CMP1)
   with Firmware 7.1.7.f and Firmware 7.2.2.e, but
   BugID 6879970 affects mixed memory configurations with Firmware 7.2.2.e,
7. Firmware 7.2.6 (Patch 139444-06) fixes BugID 6879970.
8. FBDIMMs within a Branch must have the same Sun part number.
9. Mixing 1.8V and 1.5V FBDIMMs is not supported.
10. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.d.

Netra T5440 Notes

1. All FBDIMMs must have the same memory size.
2. FBDIMMs within a Branch must have the same Sun part number.
3. Mixing 1.8V and 1.5V FBDIMMs is not supported.
4. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.g.
5. Memory Riser 501-7678 is only compatible with 1.8V VDD/VDDQ DIMMs.
6. Memory Riser 511-1231 is compatible with 1.5V and 1.8V VDD/VDDQ DIMMs.

References

1. Sun SPARC Enterprise T5140 Server Documentation.
2. Sun SPARC Enterprise T5240 Server Documentation.
3. Sun Netra T5440 Server Documentation.
4. Sun Blade T6340 Server Module Documentation.
5. Sun Netra T6340 Server Module Documentation.
