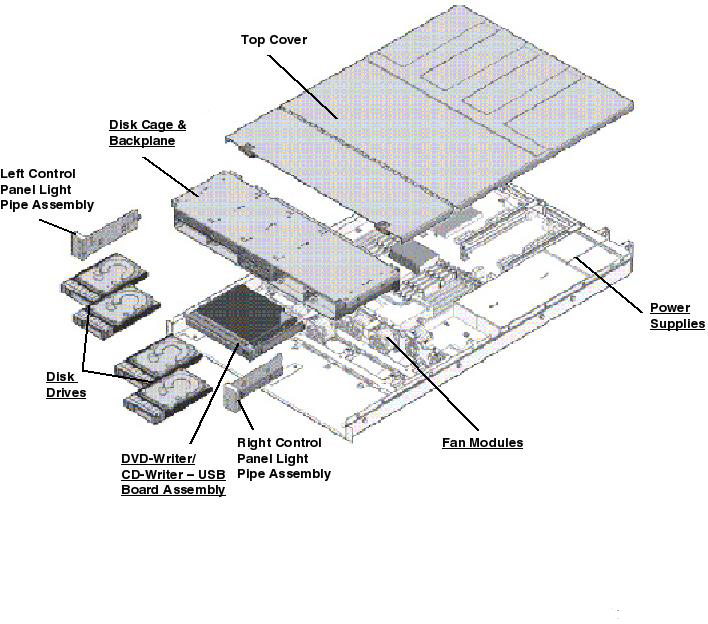

Sun SPARC Enterprise T5140 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-2210
[C]
CR2032 3V Battery,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X332A
Localized Power Cord Kit - Taiwan,
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black,
n/a
X332T
International Power Cord Kit,
180-2071
[C]
Blue 16A IEC 309 to IEC 320 C13 International 4.0M,
n/a
X333A-25-10-IL
Localized Power Cord Kit Israel,
180-2130
[C]
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black,
n/a
X333A-25-15-JP
Localized Power Cord Kit Japan,
180-2243
[C]
IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black,
n/a
X333F-25-15-JP
Localized Power Cord Kit Japan,
180-2244
[C]
IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black,
n/a
X340L
Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
X9237-1-A
Power Cord Jumper X-Option 1.0M,
180-2082 [C]
IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 1.0M,
n/a
X9238-1-A
Power Cord Jumper X-Option 2.5M,
180-2085 [C]
IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 13A 90° 2.5M,
n/a
n/a
530-3100
RJ45F to DB9F Adapter,
n/a
n/a
541-3370 [F]
PDB to System Board Ribbon Cable w/ insulator,
n/a
n/a
PDB to System Board Ribbon Cable,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 1
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile,
n/a
X4237A
[S]
375-3606
[C]
Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
NOTE: X-Option X4237A (Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter) is not supported in PCI Express slot 0.
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-7699
[F]
4-Slot Disk Backplane, PATA DVD,
n/a
n/a
501-7797
[F]
8-Slot Disk Backplane, PATA DVD,
n/a
n/a
511-1282
[F]
4-Slot Disk Backplane, SATA DVD,
n/a
n/a
511-1283
[F]
8-Slot Disk Backplane, SATA DVD,
n/a
n/a
542-0355 [F]
Backplane Retainer Clip Kit
n/a
Black 1U Backplane Retainer Clip
n/a
Disks
Option #
Manufacturing Part #
Description
Previous Part #
SESX3Y11Z
540-7841 [C]
32GB Solid State Drive SATA Assembly
n/a
32GB Solid State Drive, SATA Interface,
n/a
n/a
SESX3A11Z
[S]
540-7354 [C]
73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
SESX3A21Z
[S]
540-7361 [C]
73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks,
n/a
Seagate ST973451SS [ST973451SSUN72G]
(73GB - 15000 RPM - SAS Disk),
n/a
n/a
SESX3C11Z 2
[S]
540-7355 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
540-7868 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Seagate ST9146803SS [ST914603SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC103014CSS600 [H103014SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
SESX3G11Z
[S]
540-7869 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST93000SSUNG [ST930003SSUN300G]
(300GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G]
(300GB - 10000 RPM - SAS Disk),
n/a
n/a
SESX3G12Z
[S]
542-0388 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)
n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)
n/a
n/a
2 Assembly 540-7868 became the primary component in option SESX3C11Z, and 540-7355 became the secondary component, in April 2009.
(WO_41247)
(WO_40981)
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
SESX7XA1Z
501-7489 3
[C]
10GbE XAUI Card,
n/a
SESX7XT1Z
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
SESX7XT2Z
375-3495
[C]
10Gb/sec XFP Optical Transceiver Long Range (LR),
n/a
X1027A-Z
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X5558A
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
X5560A-Z
375-3495
[C]
10Gb/sec XFP Optical Transceiver Long Range (LR),
n/a
X7280A-2
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7054890 [C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
3 Requires one XFP Transceiver
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
330-4683
Fan Connector Cover,
n/a
n/a
541-2112
[F]
Fan Power Board,
n/a
n/a
n/a
n/a
n/a
541-2802 [C]
Fan Module,
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCIE1FC-EM4
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-EM8-Z
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF4
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF8-Z
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE2FC-EM4
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-EM8-Z
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF4
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF8-Z
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
Graphics
Option #
Manufacturing Part #
Description
Previous Part #
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator,
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm,
n/a
530-3998 4
[C]
DMS-59 to Dual DVI-I Cable, 215mm,
n/a
X4240A
[S]
605-4668
XVR-300X16 Graphics Accelerator,
n/a
XVR-300 Graphics Accelerator,
n/a
DVI-A(M) to HD15F Adapter, 49mm,
n/a
DMS-59 to Dual DVI-I Cable, 215mm,
n/a
4 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
5 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
541-2127
[F]
x16 PCI Express Riser Card Assembly,
n/a
n/a
n/a
n/a
541-2128
[F]
x8 PCI Express/XAUI Riser Card Assembly,
n/a
n/a
n/a
IDPROM
Socket
Manufacturing Part #
Component Type
Host ID
J11501
525-2344 [F]
System Configuration PROM
84xxxxxx
Memory
Option #
Manufacturing Part #
Description
Previous Part #
SESX2A1Z
[S]
2GB Memory Expansion (2 × 1GB) X-Option,
501-7952
[C]
1GB DDR2-667/PC2-5300 1.8V FBDIMM,
n/a
SESX2A3Z
[S]
2GB Memory Expansion (2 × 1GB) X-Option,
511-1150
[C]
1 GB DDR2-667/PC2-5300 1.5V DIMM,
n/a
SESX2B1Z
[S]
4GB Memory Expansion (2 × 2GB) X-Option,
501-7953
[C]
2GB DDR2-667/PC2-5300 1.8V FBDIMM,
n/a
SESX2B3Z
[S]
4GB Memory Expansion (2 × 2GB) X-Option,
511-1151
[C]
2GB DDR2-667/PC2-5300 1.5V DIMM,
n/a
SESX2C1Z
[S]
8GB Memory Expansion (2 × 4GB) X-Option,
501-7954
[C]
4GB DDR2-667/PC2-5300 1.8V FBDIMM,
n/a
SESX2C3Z
[S]
8GB Memory Expansion (2 × 4GB) X-Option,
511-1152
[C]
4GB DDR2-667/PC2-5300 1.5V DIMM,
n/a
SESX2D3Z
[S]
16GB Memory Expansion (2 × 8GB) X-Option,
511-1228
[C]
8GB DDR2-667/PC2-5300 1.5V DIMM,
n/a
n/a
7052193
[C]
2GB DDR2-667/PC2-5300 1.5V DIMM
n/a
n/a
7052205
[C]
4GB DDR2-667/PC2-5300 1.5V DIMM
n/a
NOTE: Mixing of 1.8 V and 1.5 V FB-DIMMs is not supported.
NOTE: Systems shipped with 1.5V DIMMs cannot support 1.8V DIMMs
Power
Option #
Manufacturing Part #
Description
Previous Part #
SETX9PS41Z
300-2137
[C]
Type A236 720 Watt AC Input Power Supply,
n/a
SETX9PS81Z
[S]
300-2143
[C]
Type A237 760 Watt AC Input Power Supply,
n/a
n/a
300-2186
[C]
Type D218 660 Watt DC Input Power Supply,
n/a
n/a
300-2233
[C]
Type A247 760 Watt AC Input Power Supply,
300-2143
[C]
n/a
501-7696
[F]
Power Distribution Board,
n/a
n/a
511-1604 6
[F]
Power Distribution Board
n/a
Rack
Option #
Manufacturing Part #
Description
Previous Part #
SESX9CA1Z
[S]
371-2742 [C]
1U/2U Cable Management Arm,
n/a
SESX9RK1Z
[S]
371-2741 [C]
1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm,
n/a
SESX9RK2Z
[S]
371-2740 [C]
1U/2U Snap-In Slide Rail Rackmount Kit, 730mm,
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
SESX9DV2Z
541-3493
[F]
SATA DVD-Writer/CD-Writer - USB Board Assembly,
n/a
n/a
8x SATA DVD-Writer/24x CD-Writer,
n/a
8x SATA DVD-Writer/24x CD-Writer,
n/a
8x SATA DVD Writer/24x CD-Writer
n/a
8x SATA DVD-Writer/24x CD-Writer, L
390-0443
n/a
SESX9DV1Z
[S]
541-2110
[F]
PATA DVD-Writer/CD-Writer - USB Board Assembly,
n/a
n/a
8x PATA DVD-Writer/24x CD-Writer,
n/a
n/a
n/a
n/a
541-2732 [F]
USB Assembly,
n/a
n/a
n/a
n/a
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCIE2SCSIU320Z
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
XTA-FAS-S3IE96GB
541-3731
96GB PCI Express Flash Accelerator F20 SAS HBA,
n/a
24GB Solid State Flash Memory Module,
n/a
Energy Storage Module (ESM),
n/a
511-1275
[C]
SETX9SA1Z
[S]
560-2916 [F]
Mini SAS Cable Kit,
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm,
n/a
4x Mini SATA Cable, SFF-8087 to SFF-8087, 600mm,
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 400mm,
n/a
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA,
n/a
SGXPCIESAS-R-INT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3536
7
[C]
8-Port SAS Adaptec RAID HBA,
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
1
599-3463
T5140 Base Chassis Assembly,
x16 PCI Express Riser Card Assembly,
NS
NS
1
NS
NS
NS
NS
NS
NS
NS
NS
NS
Connector Board Assembly, PATA DVD,
NS
NS
Connector Board (Paddle Card), PATA DVD,
NS
Magnetic Interlock Switch,
x8 PCI Express/XAUI Riser Card Assembly,
NS
NS
PDB to System Board Ribbon Cable w/ insulator,
NS
PDB to System Board Ribbon Cable,
NS
NS
341-3572
Ventilated 4-Disk Filler Panel,
NS
511-1281
Connector Board (Paddle Card), SATA DVD,
NS
530-2889
RJ45 to DB25 Serial Port Adapter,
NS
530-3623 [F]
Shielded RJ45 to RJ45 Cable, 4M,
NS
530-3956 [F]
PDB to System Board Ribbon Cable,
NS
541-2629
2.5" Disk Drive Filler Panel,
NS
541-2636 [F]
Lightpipe Assembly,
NS
541-3512
[F]
Connector Board Assembly, SATA DVD,
NS
NS
Magnetic Interlock Switch,
NS
560-2911 [F]
SAS Cable Kit,
NS
NS
NS
