8-Slot Disk Backplane

501-7797	511-1283
FAB 270-7797	FAB 271-1283
See PATA/SATA Compatibility Table

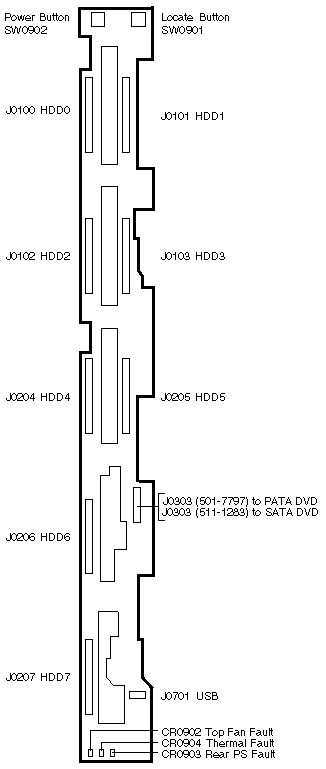

Front Side

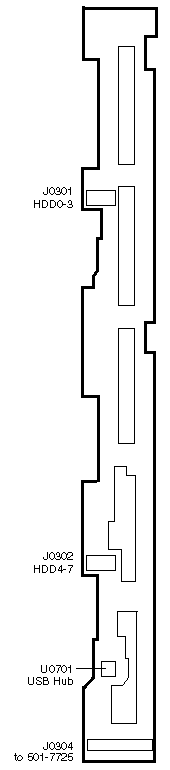

Rear Side

Sun Fire X4140 Codename: Dorado 1U Sun Fire X4150 Codename: Doradi Sun Fire X4170 Codename: Lynx 1U SPARC Enterprise T5120 Codename: Huron 1U SPARC Enterprise T5140 Codename: Maramba 1U Oracle Exadata V2 Codename: Quicksilver

References

1. Sun Fire X4150 Server Installation Guide, 820-1851.
2. Sun Fire X4150 Server Service Manual, 820-1852.
3. Sun Fire X4150 Server Product Notes, 820-1854.
4. Sun Fire X4170/X4270/X4275 Installation Guide, 820-5827.
5. Sun Fire X4170/X4270/X4275 Service Manual, 820-5830.
6. Sun Fire X4170/X4270/X4275 Product Notes, 820-5831.
