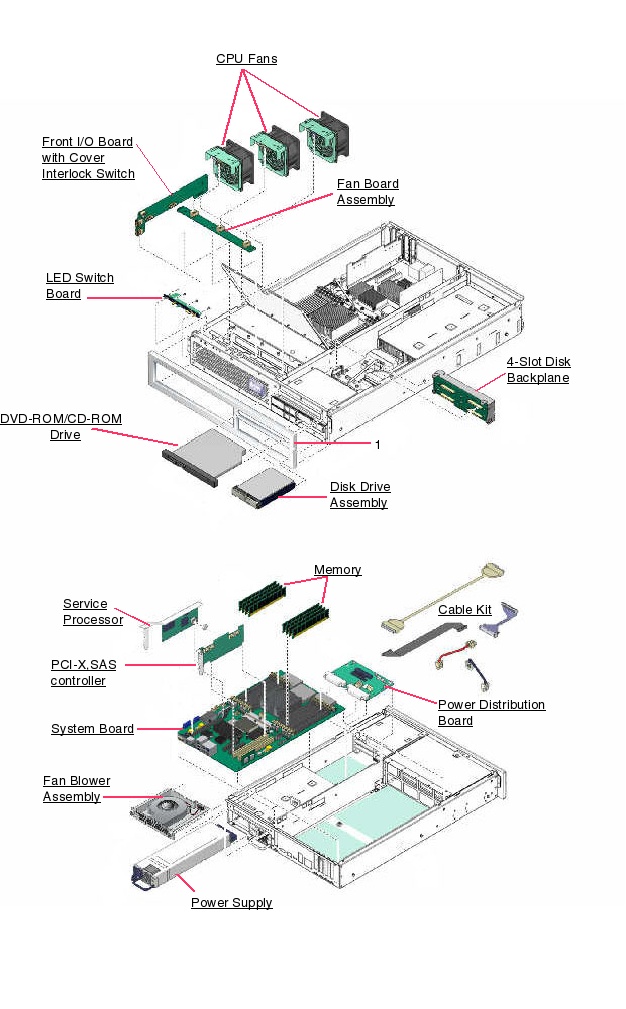

Sun Fire T2000 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
System Notes:
The non RoHS compliant Sun Fire T2000 server uses a 550 Watt power supply and uses 1 of the 2 PCI-X slots for the SAS controller. The Sun Fire T2000 ( L) server uses a 450 Watt power supply and support for the SAS controller is on the I/O board.
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
150-1204
[C]
3V Lithium battery,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X320A
Localized Power Cord Kit - North America/Asia,
180-2164
[C]
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black,
n/a
X332T
International Power Cord Kit,
180-2071
[C]
Blue 16A IEC 309 to IEC 320 C13 International 4.0M,
n/a
X333A-25-10-IL
Localized Power Cord Kit Israel,
180-2130
[C]
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black,
n/a
X333A-25-15-JP
Localized Power Cord Kit Japan,
180-2243
[C]
IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black,
n/a
X340L
Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
n/a
530-3361
CPU/Memory to I/O Board Cable,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
n/a
F530-3399 [F]
Cable Kit
n/a
Front I/O Board to System Board Cable,
n/a
Disk Backplane Power Cable,
n/a
PDB to System Board (DVD/PSU/I2 C) cable,
n/a
n/a
HDD3 to 90° PHY3 SAS Cable, 849mm
n/a
HDD2 to 90° PHY2 SAS Cable, 756mm
n/a
HDD1 to 90 ° PHY1 SAS Cable, 744mm
n/a
HDD0 to 90° PHY0 SAS Cable, 648mm
n/a
n/a
n/a
n/a
n/a
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 2
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
X1235A
[S]
375-3260 3
[C]
PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile
n/a
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile,
n/a
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card, L
n/a
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
3 Infiniband Host Channel Adapter includes no cables, so cable option 9280 or 9281 should be ordered with card.
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-7022
[F]
4-Slot Disk Backplane
n/a
Disks
Option #
Manufacturing Part #
Description
Previous Part #
XRA-SS2CD-146G10KZ
[S]
540-7151 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2CD-73G10K
[S]
541-0323 [C]
73GB 10000 RPM SAS Disk Assembly with 1 bracket
and 1 of the following disks, L
n/a
Fujitsu MAV2073RC [MAV2073RCSUN72G]
(73GB - 10000 RPM - SAS Disk), L
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
n/a
XRA-SS2CD-73G10KZ
[S]
540-6611 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X1027A-Z 4
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X5558A
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
X5560A-Z
375-3495
[C]
10Gb/sec XFP Optical Transceiver Long Range (LR),
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
4455A-4
[S]
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
501-7414
[C]
10Gb/sec PCI-X Ethernet Adapter,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
4466A
[S]
375-3361
[C]
XFP Optical PCI-X Transceiver Single Mode Fibre, L
n/a
501-7414
[C]
10Gb/sec PCI-X Ethernet Adapter,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
5544A
[S]
10Gb PCI-X Ethernet Adapter w/ Transceiver (standard brackets)
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
501-7036
[C]
10Gb/sec PCI-X Ethernet Adapter
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
5544A-4
[S]
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
501-7413
[C]
10Gb PCI-X Ethernet Adapter,
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
6644A
[S]
375-3361
[C]
XFP Optical PCI-X Transceiver Single Mode Fibre, L
n/a
501-7413
[C]
10Gb PCI-X Ethernet Adapter,
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
X4150A
[S]
501-6719
[C]
GigaSwift Ethernet UTP (GCS)
n/a
X4150A-2
[S]
501-7415
[C]
GigaSwift Ethernet UTP (GCS),
n/a
X4151A
[S]
501-6762
[C]
GigaSwift Ethernet MMF (GFS)
n/a
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS),
n/a
X5544A 5
[S]
10Gb PCI-X Ethernet Adapter, no transceiver
370-7792
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
501-7036
[C]
10Gb/sec PCI-X Ethernet Adapter
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
X5544A-4
[S]
10Gb PCI-X Ethernet Adapter, no transceiver,
501-7413
[C]
10Gb PCI-X Ethernet Adapter,
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
X5559A
[S]
375-3361
[C]
XFP Optical PCI-X Transceiver Single Mode Fibre, L
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
n/a
501-7163
10Gb/sec PCI-X Ethernet Adapter
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7054890 [C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
4 Requires either SR X5558A or LR X5560A-Z XFP Transceiver.
5 Standard bracket 370-7665 is installed. Low-profile bracket 370-7792 is included. Order Option 4455A for factory integration.
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-6917
[F]
Server Fan Board (A65/A87),
n/a
n/a
541-0275 [C]
CPU fan, L
n/a
n/a
541-0645 [C]
Rear Fan Tray,
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCIE1FC-EM4
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF4
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE2FC-EM4
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF4
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCI1FC-EM2
[S]
375-3304
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-EM4-Z
[S]
375-3398
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QF4
[S]
375-3354
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QL2
[S]
375-3383
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-QF2
[S]
375-3108
[C]
2Gb PCI/PCI-X Dual FC Host Adapter
n/a
n/a
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter,
n/a
n/a
Graphics
Option #
Manufacturing Part #
Description
Previous Part #
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator,
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm,
n/a
530-3998 6
[C]
DMS-59 to Dual DVI-I Cable, 215mm,
n/a
X3777
[S]
375-3433
[C]
XVR-200 Graphics Accelerator,
n/a
6 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-6978
[F]
Front I/O Board w/Cover Interlock Switch, L
n/a
Memory
Option #
Manufacturing Part #
Description
Previous Part #
X7800A
[S]
1GB (2 × 512MB DDR2) Memory Expansion Kit,
370-6207
[C]
512MB DDR2 DIMM, 533 MHz,
n/a
X7801A
[S]
2GB (2 × 1GB DDR2) Memory Expansion Kit,
370-6208
[C]
1GB DDR2 DIMM, 533 MHz,
n/a
X7802A
[S]
4GB (2 × 2GB DDR2) Memory Expansion Kit,
370-6209
[C]
2GB DDR2 DIMM, 533 MHz,
n/a
X7803A
[S]
8GB (2 × 4GB DDR2) Memory Expansion Kit
370-6210
[C]
4GB DDR2 DIMM,
n/a
NOTE: DIMMS must be installed in sets of 8.
Two basic memory configurations are supported: 8-DIMM or 16-DIMM. All DIMMs must have identical capacity. An 8 DIMM configuration fully populates Rank 0 slots.
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-6916
[F]
LED/Switch Board (A65/A87),
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
n/a
300-1757
[C]
Type A203 550 Watt AC Input Power Supply
n/a
n/a
501-7021
7
[F]
Power Distribution Board, L
n/a
7 An electronic copy of the chassis serial number is located in a CPROM at U20.
Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system.
The Sun Fire T2000 Server Service Manual describes the required service commands.
Rack
Option #
Manufacturing Part #
Description
Previous Part #
n/a
370-7668 [C]
Cable Management Arm,
n/a
n/a
370-7669 [C]
Slide Rail Kit,
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
XT20-DVD-RW
390-0251
[F]
Slimline 8X DVD-ROM / 24X CD-Writer,
n/a
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCIE2SCSIU320Z
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
SGX-SAS6-EXT-Z
375-3641
[C]
PCI Express 8-Port 6Gbps SAS HBA (LSI),
n/a
SG-XPCI1SCSI-LM320
[S]
375-3255
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
n/a
370-7696
8
9
[C]
PCI-X SAS controller, L
n/a
8 Use the OBP 'activate_volume' command to activate an inactive RAID
volume when replacing the SAS controller. Rquires 1064_FCode firmware revision 1.00.39. Refer to BugID 6378605 and patch id 122165 .
9 370-7696 is factory installed in Slot PCI-X 0 and controls internal disk drives.
System Board
Option #
Manufacturing Part #
Description
Previous Part #
n/a
541-0569 [F]
4-Core, UltraSPARC T1, 1.0GHz System + I/O Board
n/a
CPU/Memory + I/O Board Assembly
n/a
n/a
n/a
n/a
541-0570 [F]
8-Core, UltraSPARC T1, 1.0GHz System + I/O board
n/a
CPU/Memory + I/O Board Assembly
n/a
n/a
n/a
n/a
541-0599 [F]
6-Core, UltraSPARC T1, 1.0GHZ System + I/O Board
n/a
CPU/Memory + I/O Board Assembly
n/a
n/a
n/a
n/a
541-0827 [F]
8-Core, UltraSPARC T1, 1.2GHz System + I/O Board
n/a
CPU/Memory + I/O Board Assembly
n/a
n/a
n/a
NOTE: System Boards from the RoHS compliant Sun Fire T2000 are not backward compatible to the non RoHS Sun Fire T2000.
NOTE: In the the Sun Fire T2000, the I/O and System Boards are a single assembly.
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
1
541-0243
Front Bezel Assembly,
NS
330-3955
Power Supply Air Baffle/Damper,
NS
541-0231
Empty 4-Disk Drive/DVD Bay Assembly,
NS
541-0325
DVD Bezel,
NS
541-0565
CPU Fan Guard,
NS
541-0585
Rear Top Cover Assembly,
NS
541-0605 [F]
Blank Disk Drive Filler,
