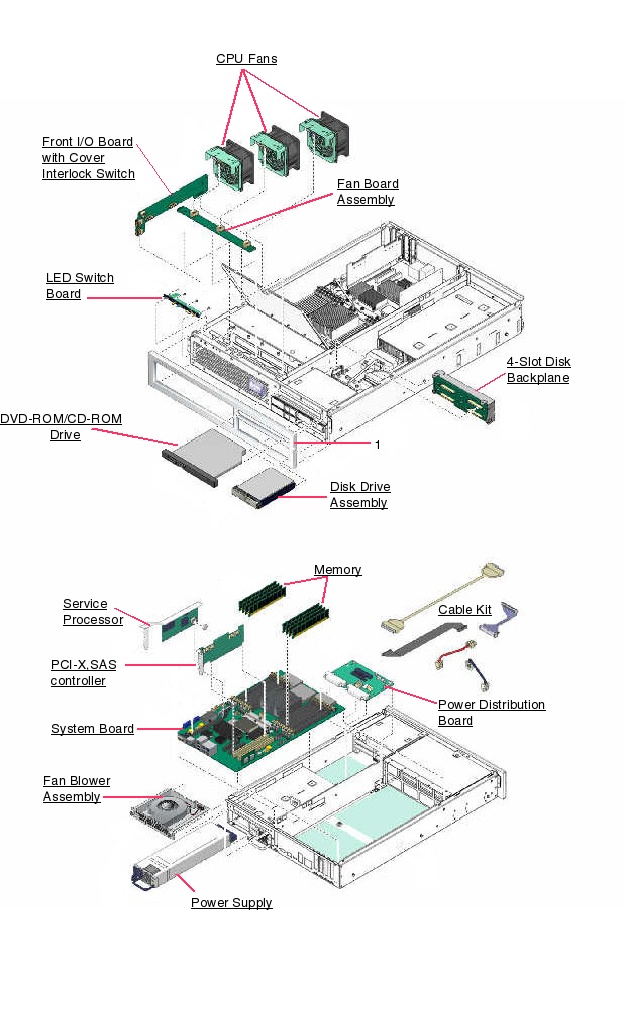

Sun SPARC Enterprise T2000 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
150-1204
[C]
3V Lithium battery,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X320A
Localized Power Cord Kit - North America/Asia,
180-2164
[C]
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black,
n/a
X332T
International Power Cord Kit,
180-2071
[C]
Blue 16A IEC 309 to IEC 320 C13 International 4.0M,
n/a
X333A-25-10-IL
Localized Power Cord Kit Israel,
180-2130
[C]
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black,
n/a
X333A-25-15-JP
Localized Power Cord Kit Japan,
180-2243
[C]
IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black,
n/a
X333F-25-15-JP
Localized Power Cord Kit Japan,
180-2244
[C]
IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black,
n/a
X340L
Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
X321L
[S]
North America/Asia Power Cords 4-Pack,
180-2023
IEC 320 C13 to NEMA 6-15P - 10A/250V 4.0M Black,
n/a
n/a
530-3361
CPU/Memory to I/O Board Cable,
n/a
n/a
530-3365
DVD Cable,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 1
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
X1235A
[S]
375-3260 2
[C]
PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile
n/a
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile,
n/a
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card, L
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
2 Infiniband Host Channel Adapter includes no cables, so cable option 9280 or 9281 should be ordered with card.
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-7755
[F]
4-Slot Disk Backplane, L
n/a
Disks
Option #
Manufacturing Part #
Description
Previous Part #
SEPX3A11Z
[S]
540-7307 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks,
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
SEPX3C11Z
[S]
540-7777 [C]
146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks,
540-7151 [C]
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Seagate ST9146803SS [ST914603SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2CD-146G10KZ
[S]
540-7151 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2CD-73G10KZ
[S]
540-6611 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X1027A-Z
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
X4150A
[S]
501-6719
[C]
GigaSwift Ethernet UTP (GCS)
n/a
X4150A-2
[S]
501-7415
[C]
GigaSwift Ethernet UTP (GCS),
n/a
X4151A
[S]
501-6762
[C]
GigaSwift Ethernet MMF (GFS)
n/a
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS),
n/a
X5544A 3
[S]
10Gb PCI-X Ethernet Adapter, no transceiver
370-7792
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
501-7036
[C]
10Gb/sec PCI-X Ethernet Adapter
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
X5544A-4
[S]
10Gb PCI-X Ethernet Adapter, no transceiver,
501-7413
[C]
10Gb PCI-X Ethernet Adapter,
n/a
Bracket Standard 10Gb PCI-X Ethernet,
n/a
Bracket Low-Profile 10Gb PCI-X Ethernet,
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7054890 [C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
3 Standard bracket 370-7665 is installed. Low-profile bracket 370-7792 is included. Order Option 4455A for factory integration.
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
541-0275 [C]
CPU fan, L
n/a
n/a
541-0645 [C]
Rear Fan Tray,
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCIE1FC-EM4
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-EM8-Z
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF4
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF8-Z
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE2FC-EM4
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-EM8-Z
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF4
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF8-Z
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCI1FC-EM2
[S]
375-3304
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-EM4-Z
[S]
375-3398
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QF4
[S]
375-3354
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QL2
[S]
375-3383
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter,
n/a
n/a
Graphics
Option #
Manufacturing Part #
Description
Previous Part #
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator,
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm,
n/a
530-3998 4
[C]
DMS-59 to Dual DVI-I Cable, 215mm,
n/a
X3777
[S]
375-3433
[C]
XVR-200 Graphics Accelerator,
n/a
4 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-6978
[F]
Front I/O Board w/Cover Interlock Switch, L
n/a
Memory
Option #
Manufacturing Part #
Description
Previous Part #
SEKX2A1Z
[S]
1GB (2 x 512MB DDR2) Memory Expansion Kit,
370-6207
[C]
512MB DDR2 DIMM, 533 MHz,
n/a
SEKX2B1Z
[S]
2GB (2 x 1Gb DDR2) Memory Expansion Kit,
370-6208
[C]
1GB DDR2 DIMM, 533 MHz,
n/a
SEKX2C1Z
[S]
4GB (2 x 2GB DDR2) Memory Expansion Kit,
370-6209
[C]
2GB DDR2 DIMM, 533 MHz,
n/a
SEKX2D1Z
[S]
8GB (2 x 4GB DDR2) Memory Expansion Kit,
370-6210
[C]
4GB DDR2 DIMM,
n/a
X7800A
[S]
1GB (2 × 512MB DDR2) Memory Expansion Kit,
370-6207
[C]
512MB DDR2 DIMM, 533 MHz,
n/a
X7801A
[S]
2GB (2 × 1GB DDR2) Memory Expansion Kit,
370-6208
[C]
1GB DDR2 DIMM, 533 MHz,
n/a
X7802A
[S]
4GB (2 × 2GB DDR2) Memory Expansion Kit,
370-6209
[C]
2GB DDR2 DIMM, 533 MHz,
n/a
X7803A
[S]
8GB (2 × 4GB DDR2) Memory Expansion Kit
370-6210
[C]
4GB DDR2 DIMM,
n/a
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-6916
[F]
LED/Switch Board (A65/A87),
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-7021
5
[F]
Power Distribution Board, L
n/a
n/a
F300-1735 [C]
Type A208 450 Watt AC Input Power Supply,
n/a
Type A208 450 AC Input Watt Power Supply, L
n/a
Type A208 450 Watt AC Input Power Supply, L
n/a
Type A208 450 Watt Power Supply, L
n/a
5 An electronic copy of the chassis serial number is located in a CPROM at U20.
Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system.
The a href="http://download.oracle.com/docs/cd/E19076-01/sparc.t2k/index.html" target="_syshbk">Sun SPARC Enterprise T2000 Server Service Manual describes the required service commands.
Rack
Option #
Manufacturing Part #
Description
Previous Part #
n/a
370-7668 [C]
Cable Management Arm,
n/a
n/a
370-7669 [C]
Slide Rail Kit,
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
n/a
390-0251
[F]
Slimline 8X DVD-ROM / 24X CD-Writer,
n/a
n/a
541-1474
DVD Cable Assembly, L
n/a
n/a
n/a
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI8SAS-E-Z
375-3488
[C]
3Gb PCI-X SAS 8-Port Host Adapter,
n/a
SG-XPCIE2SCSIU320Z
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter,
n/a
SG-XPCI1SCSI-LM320
[S]
375-3255
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA,
n/a
System Board
Option #
Manufacturing Part #
Description
Previous Part #
n/a
541-2142 [F]
0MB 8-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2192 [F]
0MB 8-Core 1.2GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2226 [F]
0MB 4-Core 1.0GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
n/a
541-2449 [F]
0MB 8-Core 1.4GHz System Board, L
n/a
System Board Assembly w/o UltraSPARC T1, L
n/a
n/a
n/a
CPU/Memory to I/O Board Cable,
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
1
541-0243
Front Bezel Assembly,
NS
375-3104
Paddleboard, L
