Sun Fire V245 Server, RoHS:YL - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-1404
[F]
3V Lithium Battery,N31/N32,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X320A
Localized Power Cord Kit - North America/Asia,
180-2164
[C]
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black,
n/a
X332A
Localized Power Cord Kit - Taiwan,
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black,
n/a
X340L
Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
530-1819
[C]
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
n/a
530-1819
[C]
Localized Power Cord Kit - Danish
n/a
n/a
530-3338 [C]
Front I/O Board to System Board Cable,
n/a
n/a
541-0648 [C]
Flex Circuit Assembly, L
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 1
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
X1355A-2
[S]
371-0982
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable,
n/a
375-3296
[C]
Quad Port High Speed Serial Interface PCI-X (HSI/U),
n/a
X2156A-2
[S]
375-3420 2
[C]
Serial Asynchronous Interface PCI (SAI/P) 3.0,
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
2 Requires X8425A-Z PCI-X Riser Card Assembly (2UEXL).
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
375-3403
[F]
4-Slot SAS Disk Backplane (SASBP2), L
n/a
Disks
Option #
Manufacturing Part #
Description
Previous Part #
XRB-SS2CD-146G10KZ
[S]
540-7151 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRB-SS2CD-73G10KZ
[S]
540-6611 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST973401SS [ST973401SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72]
(73GB - 10000 RPM - SAS Disk),
n/a
Seagate ST973402SS [ST973402SSUN72G]
(73GB - 10000 RPM - SAS Disk),
n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G]
(73.4GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
X4150A-2
[S]
501-7415
[C]
GigaSwift Ethernet UTP (GCS),
n/a
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS),
n/a
X4445A
[S]
501-6738
[C]
Quad GigaSwift PCI-X Ethernet (QGE-X),
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-0983 [C]
Disk Drive Fan Tray,
n/a
n/a
371-1797 [C]
Disk Drive Fan Tray Cable,
n/a
n/a
371-1904 [C]
System Fan Tray,
n/a
n/a
375-3445
[F]
System Fan Tray Connector Board, L
n/a
n/a
375-3448 [F]
Disk Drive Fan Tray Connector Board, L
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCIE1FC-EM4
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-EM8-Z
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF4
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE1FC-QF8-Z
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter,
n/a
SG-XPCIE2FC-EM4
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-EM8-Z
371-4306
[F]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF4
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF8-Z
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCI1FC-EM2
[S]
375-3304
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-EM4-Z
[S]
375-3398
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QF4
[S]
375-3354
[C]
4Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI1FC-QL2
[S]
375-3383
[C]
2Gb PCI-X Single FC Host Adapter,
n/a
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter,
n/a
n/a
Graphics
Option #
Manufacturing Part #
Description
Previous Part #
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator,
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm,
n/a
530-3998 3
[C]
DMS-59 to Dual DVI-I Cable, 215mm,
530-3459 [C]
X4240A
[S]
605-4668
XVR-300X16 Graphics Accelerator,
n/a
XVR-300 Graphics Accelerator,
n/a
DVI-A(M) to HD15F Adapter, 49mm,
n/a
DMS-59 to Dual DVI-I Cable, 215mm,
530-3459 [C]
X7295A
[S]
375-3292 5
[C]
XVR-2500 Graphics Accelerator,
n/a
X7296A
[S]
375-3290
6
[C]
XVR-100 Graphics Accelerator (64MB),
n/a
3 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
4 Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
5 Requires X8427A-Z PCI Express Riser Card Assembly (1UEEL).
6 Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.
I/O
Option #
Manufacturing Part #
Description
Previous Part #
X8425A-Z
[S]
375-3517 8
[C]
PCI-X Riser Card (2UEXL-I), L
n/a
X8427A-Z
[S]
375-3520 9
[C]
PCI Express Riser Card (2UEEL), L
n/a
n/a
375-3329
[C]
PCI Express Riser Card (2UEER), L
n/a
n/a
375-3443
[C]
PCI-X Riser Card (2UEXL-I), L
n/a
n/a
375-3447
[F]
Front I/O Board Assembly, L
n/a
7 Changes PCI-X I/O slot to accommodate X2156A-2 serial asynchronous (SAI/P) adapter,
8 Changes PCI-X I/O slot to accommodate X2156A-2 serial asynchronous (SAI/P) adapter,
9 Changes two PCI-X 133 MHz, full height, one long and one short I/O slots to two PCI Express x8 I/O slots.
IDPROM
Socket
Manufacturing Part #
Component Type
Host ID
n/a
525-2180
SEEPROM 10x MAC
83xxxxxx
Memory
Option #
Manufacturing Part #
Description
Previous Part #
X8703A
[S]
540-6466
[C]
1GB (2 × 512MB) Memory,
n/a
n/a
X8704A
[S]
540-6467
[C]
2GB (2 × 1GB) Memory,
n/a
n/a
X8711A
[S]
540-6468
[C]
4GB (2 × 2GB) Memory,
n/a
n/a
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
n/a
375-3444
[F]
Indicator Board Assembly
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
X8428A-Z 10
[S]
300-1852
[C]
Type A214 550 Watt AC Input Power Supply, L
n/a
300-1945
[C]
Type A203 550 Watt AC Input Power Supply, L
n/a
n/a
375-3401 [F]
Power Distribution Board (PDB) Assembly, L
n/a
10 300-1945 replaced 300-1852 in May 2007, and 300-1852 became the manufacturing substitute.
(WO_36947)
Rack
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-0066 [C]
Rack Mount/Cable Management Kit,
n/a
n/a
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
X8410A-Z
[S]
371-1106
8x DVD-Writer / 24x CD-Writer,
n/a
371-2261
DVD-ROM / CD-ROM Drive Bezel,
n/a
371-2549
8x DVD-Writer / 24x CD-Writer,
n/a
390-0403
[C]
8x PATA DVD-Writer / 24x CD-Writer,
n/a
390-0439
8x DVD-Writer / 24x CD-Writer,
n/a
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI8SAS-E-Z
375-3488
[C]
3Gb PCI-X SAS 8-Port Host Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
SG-XPCIESAS-E-Z
375-3488
[C]
3Gb PCI-X SAS 8-Port Host Adapter,
n/a
SGXPCI2SCSILM320-Z
375-3365
11
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA,
n/a
X4422A-2
[S]
501-7490
[C]
Dual GigabitEthernet / Dual SCSI PCI Adapter,
n/a
11 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing Part #
Description
Previous Part #
n/a
375-3463
[F]
Motherboard w/ 2 × US IIIi 1.5GHz, 0MB
n/a
n/a
n/a
n/a
n/a
375-3464
[F]
Motherboard w/ 1 × US IIIi 1.5GHz, 0MB
n/a
n/a
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

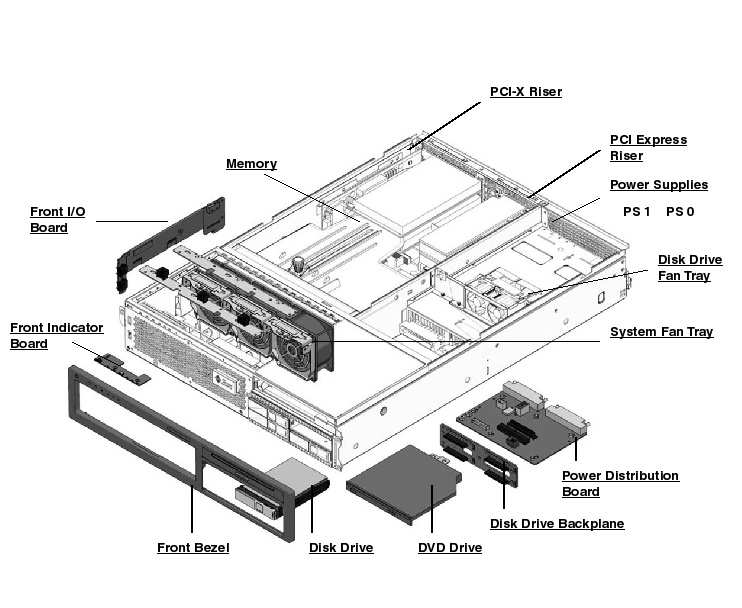

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
530-3459 [C]
DMS-59 to Dual DVI-I Cable, 215mm,
NS
541-2412 [C]
Bus Bar Replacement Kit,
