Netra X4200 M2, RoHS:YL - Full Components List

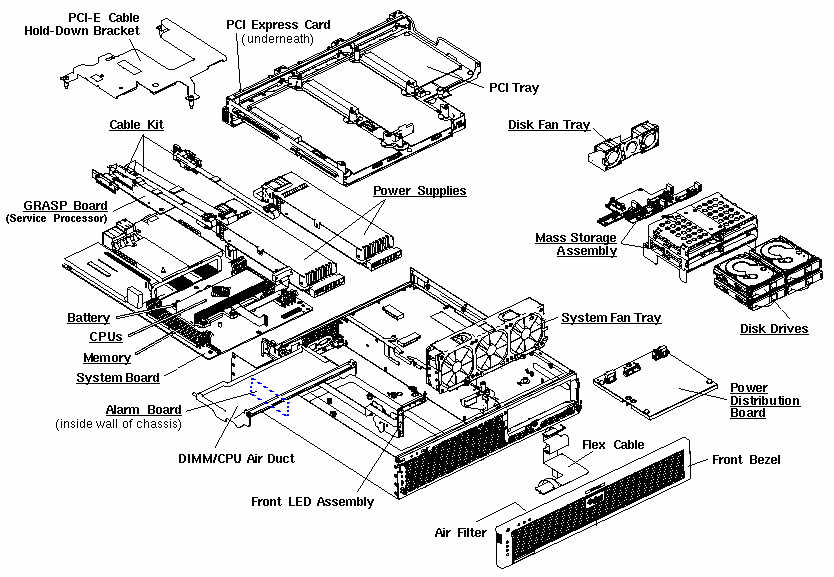

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
150-3993
[C]
3V Coin Cell Battery,
n/a
CPU Module
Option #
Manufacturing Part #
Description
Previous Part #
4232A-Z
310-0102
Heatsink,
n/a
371-2481
HyperTransport Termination Adapter,
n/a
X4351A-Z
[S]
371-2630
[C]
2.2GHz CPU, Next-Generation AMD Opteron 2214HE, F3 Stepping, 68W,
n/a
G751 Thermal Grease Syringe,
n/a
X5339A-Z
[S]
310-0049
G751 Thermal Grease Syringe,
n/a
371-4305
[C]
1.8GHz CPU, AMD Opteron Quad-Core 23HF HE, B3 Stepping, 79W,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X332A
Localized Power Cord Kit - Taiwan,
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
n/a
371-2638 [C]
PCI Express Cable Kit Assembly,
n/a
21 pin,X4,PCIe-Strip Cable,
n/a
21 pin,X4,PCIe-RA (Right Angle) Cable
n/a
41 pin,X8,PCIe-Straight Cable,
n/a
n/a
530-3100
RJ45F to DB9F Adapter,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 1
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card, L
n/a
n/a
371-2877 [C]
Telco Alarm Board, L
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-2556 [C]
2 Disk Slot Mass Storage Assembly with Flex Cable, L
n/a
Disk Backplane Board Assembly (HDD 0/1), L
n/a
n/a
DVD/CD Interface Board, L
n/a
n/a
371-2558 [C]
4 Disk Slot Mass Storage Assembly with Flex Cable,
n/a
Disk Backplane Board Assembly (HDD 0/1), L
n/a
Disk Backplane Board Assembly (HDD 2/3), L
n/a
n/a
n/a
371-4728 [C]
2 Disk Slot SATA Mass Storage Assembly with Flex Cable, L
n/a
Disk Backplane Board Assembly (HDD 0/1), L
n/a
n/a
SATA DVD/CD Interface Board, L
n/a
NOTE: A two-disk Netra X4200 M2 configuration with DVD-ROM (or w/out DVD-ROM) cannot be field converted to a four-disk Netra X4200 M2, or vice versa.
Disks
Option #
Manufacturing Part #
Description
Previous Part #
XRA-SS2ND-146G10KZ
[S]
540-7152 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2ND-300G10K
[S]
540-7867 [C]
300GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST93000SSUNG [ST930003SSUN300G]
(300GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
XRB-SS2ND-146G10K
[S]
540-7866 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Seagate ST9146803SS [ST914603SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X1027A-Z
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
X4151A-2
[S]
501-7430
[C]
GigaSwift Ethernet MMF (GFS),
n/a
X4445A
[S]
501-6738
[C]
Quad GigaSwift PCI-X Ethernet (QGE-X),
n/a
X7280A-2 2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7285A
[S]
371-0911
[C]
Low Profile PCI-X Dual Gigabit Ethernet UTP,
n/a
X7286A
[S]
371-0912
[C]
Low Profile PCI-X Single Gigabit Ethernet MMF,
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7054890 [C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
2 Requires a shielded cable to pass ESD discharge requirements at 8KV.
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-1955 [C]
HDD Fan Tray Assembly,
n/a
n/a
371-2736 [C]
System Fans Assembly,
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter,
n/a
n/a
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
F371-2368 [C]
PCI Assembly, L
n/a
n/a
n/a
Memory
Option #
Manufacturing Part #
Description
Previous Part #
X4225A-Z
[S]
2GB (2 × 1GB DDR2-667 DIMM) Option, L
371-1919
1GB DDR2-667 DIMM,
n/a
X4226A-C
[S]
4GB (2 × 2GB DDR2-667 DIMM), Memory Kit, L
371-4158
2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM,
n/a
X4226A-Z
[S]
4GB (2 × 2GB DDR2-667 DIMM) Option, L
371-1920
2GB DDR2-667 DIMM,
n/a
X4227A-Z
[S]
8GB (2 × 4GB DDR2-667 DIMM) Option, L
371-2205
4GB DDR2-667 DIMM,
n/a
X4233A
[S]
8GB (2 × 4GB DDR2-667 DIMM) Option for Dual-Core and Quad-Core CPUs, L
371-4322
4GB DDR2-667 DIMM,
n/a
n/a
F540-7116 [C]
2GB (2 × 1GB DDR2-667 DIMM),
n/a
n/a
n/a
F540-7117 [C]
4GB (2 × 2GB DDR2-667 DIMM),
n/a
n/a
n/a
F540-7118 [C]
8GB (2 × 4GB DDR2-667 DIMM),
n/a
n/a
n/a
F540-7795 [C]
8GB (2 × 4GB DDR2-667 DIMM) for Quad-Core CPUs,
n/a
n/a
n/a
F540-7849 [C]
4GB (2 × 2GB DDR2-667 DIMM),
n/a
2GB DDR2-667 Registered DIMM, 1-Rank/512 Mbit SDRAM,
n/a
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
X4234A-Z
594-3954
Air Filter 10-Pack,
n/a
n/a
X4353A-Z
594-4536
Air Filter for 4 Hard Disk Drive Chassis,
n/a
Air Filter for 4 Hard Disk Drive Chassis,
n/a
X949A-4
594-2682
Wago DC Connector Set (10 pack),
n/a
n/a
Wago DC Connector Strain Relief,
n/a
Wago DC Connector Opening Lever,
n/a
n/a
130-4361
DC Connector,
n/a
n/a
230-1708
DC Connector Strain Relief
n/a
n/a
230-1711
DC Connector Opening Lever
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
X8051A-Z
[S]
300-2006
[C]
Type D193 550 Watt DC Input Power Supply, L
n/a
X8052A-Z
[S]
300-1848
[C]
Type A214 550 Watt AC Input Power Supply, L
n/a
n/a
300-2306
[C]
Type A214 550 Watt AC Input Power Supply
n/a
n/a
371-1098
[C]
Power Distribution Board, L
n/a
Rack
Option #
Manufacturing Part #
Description
Previous Part #
X2089A
350-1387
19" 2-post Slide Rail Kit,
n/a
X7901A-4
371-1478
19" 2-post Rackmount Kit,
n/a
X7902A-4
371-1481
23" 2-post Rackmount Kit,
n/a
X7904A-4
371-1479
600mm x 600mm Rackmount Kit,
n/a
X8099A-4
371-1480
19" 4-post Slide Mount Kit,
n/a
SG-XARY030A
[S]
595-4706
72 inch Sun StorEdge Expansion Cabinet
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
X4356A-Z
DVD-Writer/CD-Writer, L
371-2261
DVD-ROM / CD-ROM Drive Bezel,
n/a
540-7563
[C]
DVD-Writer/CD-Writer, PATA,
n/a
8x PATA DVD-Writer/24x CD-Writer,
n/a
8x PATA DVD-Writer / 24x CD-Writer,
n/a
X4358A-Z
SATA DVD-Writer/CD-Writer,
390-0486
[C]
8x SATA DVD-Writer/24x CD-Writer, L
390-0443
[C]
X4352A-Z 3
[S]
8× Slimline DVD-RW Drive Assembly, L
390-0337
[C]
8x PATA DVD-Writer/24x CD-Writer,
n/a
3 Option X4352A-Z includes the DVD Bezel (PN#541-0325)
NOTE: DVD-ROM support requires the two-disk Netra X4200 M2 configuration.
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI8SAS-E-Z
375-3488
[C]
3Gb PCI-X SAS 8-Port Host Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
SGXPCI2SCSILM320-Z
375-3365
4
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
4 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing Part #
Description
Previous Part #
n/a
501-7590
[C]
System Board, L
n/a
n/a
n/a
501-7989
[C]
System Board, L
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
330-3968
Lightpipe,
NS
330-4032
Service Processor Bracket,
NS
370-6110
19" 4-Post Rackmount Kit,
NS
Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS
371-1103
DVD/CD Interface Board, L
NS
371-1905
Blank DVD Filler Panel,
NS
371-1958 5
[F]
LED Assembly, L
NS
NS
371-4260 7
[F]
LED Assembly, L
NS
NS
541-0605 [F]
Blank Disk Drive Filler,
NS
565-1882
Wago DC Connector Assembly Kit,
DC Connector Strain Relief
DC Connector Opening Lever
5 Replaced by LED Assembly 371-4260 on Netra X4200 M2 in May 2008.
(WO_39081)
6 Replaced LED Board 371-1104 in October 2008.
(WO_39867)
7 LED Assembly 371-4260 replaced 371-1958 on Netra X4200 M2 in May 2008.
(WO_39081)
