Sun Blade 6048 Modular System, RoHS:YL - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
System Notes:
Memory, CPU and Disk part information are found on the Blade Server Module Components page. Blade references.

Backplane/Centerplane
Option # Manufacturing
Part #
Description Previous
Part #
B22-B-MP-UPGKIT [S] 541-4236 [F] PCI Express Gen 2 Midplane Assembly, L 541-3542 [F]
  • 330-4398
  • Busbar Bolt Cover,
n/a
  • 330-4509
  • Busbar Cover,
n/a
  • 341-3317
  • Busbar,
n/a
  • 341-3592
  • Busbar Spacer,
n/a
  • 511-1473
  • PCI Express Gen 2 Midplane, L
511-1212
n/a 541-2445 [F] PCI Express 1.1 Midplane Assembly, L n/a
  • 330-4398
  • Busbar Bolt Cover,
n/a
  • 330-4509
  • Busbar Cover,
n/a
  • 341-3317
  • Busbar,
n/a
  • 341-3592
  • Busbar Spacer,
n/a
  • 501-7788
  • PCI Express 1.1 Midplane, L
n/a
Blade
Option # Manufacturing
Part #
Description Previous
Part #
Cables
Option # Manufacturing
Part #
Description Previous
Part #
X4622A Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, L
530-3100 RJ45F to DB9F Adapter, n/a
530-3936 [C] USB/VGA/RJ45 Dongle Cable Adapter, n/a
X5915A 2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M,
375-3493 [C] Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M, n/a
X2880-10M [S] 530-4343 [F] 10 Meter Optical QDR 12x InfiniBand cable, n/a
X2880-20M [S] 530-4344 [F] 20 Meter Optical QDR 12x InfiniBand cable, n/a
X2881-20M [S] 530-4347 [F] 20 Meter QDR 12x InfiniBand splitter cable, n/a
X2882-0.4M [S] 530-4346 [C] 0.4m Copper QDR 12x InfiniBand jumper cable n/a
X4621A [S] Dongle Cable Assembly for Universal Connector Port (UCP) with four connectors: 1 VGA HD15, 1 RJ45, 2USB, 1 DB9 Serial and 1 DB9 to RJ45 Adapter, L
530-3813 DB9F to RJ45F, DCE Adapter, n/a
530-3934 [C] USB/VGA/DB-9/RJ45 Dongle Cable Adapter, n/a
X5044A-Z [S] 6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m,
180-2005 [C] AC Input Power Cord, 20A, Americas, NEMA L6-20P to IEC320-C19, 4m, n/a
X5045A-Z [S] 4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m,
180-2004 [C] AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m, n/a
Communication
Option # Manufacturing
Part #
Description Previous
Part #
X1288A-Z [S] 375-3439 [C] Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule, L n/a
X4216A-Z [S] 375-3548 [C] Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule, n/a
X4219A-Z [S] 375-3605 Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express ExpressModule, n/a
X5196A-Z [S] 375-3551 [C] 24-port 4x DDR InfiniBand Network Express Module (NEM), n/a
X5500A [S] 541-3378 [C] InfiniBand QDR Switched Network Express Module (NEM) n/a
Ethernet
Option # Manufacturing
Part #
Description Previous
Part #
SG-XEMFCOE2-Q-SR 375-3684 [C] Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR, n/a
SG-XEMFCOE2-Q-TA 375-3685 [C] Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA, n/a
X1110A-Z 375-3616 [C] Dual 10-Gigabit SFP+ Ethernet ExpressModule, n/a
X7284A-Z 375-3498 [C] x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule n/a
X1028A-Z [S] 541-2400 [C] x8 PCI Express Dual 10-Gigabit Ethernet ExpressModule, n/a
X1108A-Z [S] 375-3591 [C] x8 PCI Express Dual 10-Gigabit SFP+ Ethernet ExpressModule, n/a
X4731A [S] 540-7544 [C] 12-port, GbE, Pass-Thru Network Express Module (NEM), L n/a
X7282A-Z [S] 541-0924 [C] x4 PCI Express Dual Gigabit Ethernet UTP ExpressModule, n/a
X7283A-Z [S] 541-1206 [C] x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule, n/a
X7287A-Z [S] 541-2487 [C] x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule, n/a
n/a 135-1196 [C] 10GbE, Small Form-Factor Pluggable (SFP+) with Short Reach Transceiver, n/a
n/a 7055026 [C] x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule 375-3498 [C]
Fan
Option # Manufacturing
Part #
Description Previous
Part #
n/a 371-1446 [C] Rear Fan Controller Assembly, n/a
  • 501-7377
  • Rear Fan Controller Board,L
n/a
n/a 371-1450 [C] Rear Fan Module (RFM), n/a
Fibre Channel
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCIEFCGBE-E8-Z 371-4666 [C] 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex n/a
SG-XPCIEFCGBE-Q8-Z 371-4522 [C] 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic n/a
SG-XPCIE2FC-EB4-Z [S] 375-3386 [C] 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex, n/a
SG-XPCIE2FC-QB4-Z [S] 375-3384 [C] 4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic, n/a
SG-XPCIE2FCGBE-E-Z [S] 371-4018 [C] 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex, n/a
SG-XPCIE2FCGBE-Q-Z [S] 371-4017 [C] 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic, n/a
Miscellaneous
Option # Manufacturing
Part #
Description Previous
Part #
X5964-A [S] 371-4555 Rear Refrigerant Gas Cooling Door 5600, n/a
X5965-A [S] 371-4556 [F] Rear Water-Based Cooling Door 5200, n/a
NOTE: Installation and service of Cooling Door options is performed by Liebert-certified personnel. A support agreement with Liebert is required. Contact Liebert for for support. Liebert contact information is located on the Liebert refrigerant door.
NOTE: Cooling Door options are not compatible with Sun Blade 6048 B22-A or B22-B. The PCI Express Gen 2 compatible mid-plane chassis is required: B22-C and B22-D.
Requires a Liebert XDP refrigerant distribution unit.
Power
Option # Manufacturing
Part #
Description Previous
Part #
X4760A-Z [S] 300-2188 [C] Type A231 8400 Watt AC Input Power Supply, L 300-2057 [C]
  • 371-4197 [C]
  • Power Supply Fan Tray, L
371-2524 [C]
NOTE: Fan Trays 371-2524 and 371-4197 are not mechanically interchangeable.
SCSI
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCIE8SAS-EB-Z 375-3486 [C] Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule, n/a
System Service Processor
Option # Manufacturing
Part #
Description Previous
Part #
X4627A [S] 540-7545 [C] Chassis Management Module (CMM) Assembly, L n/a
  • Chassis Management Module (CMM) Board, L
n/a
  • Service Processor, L
n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

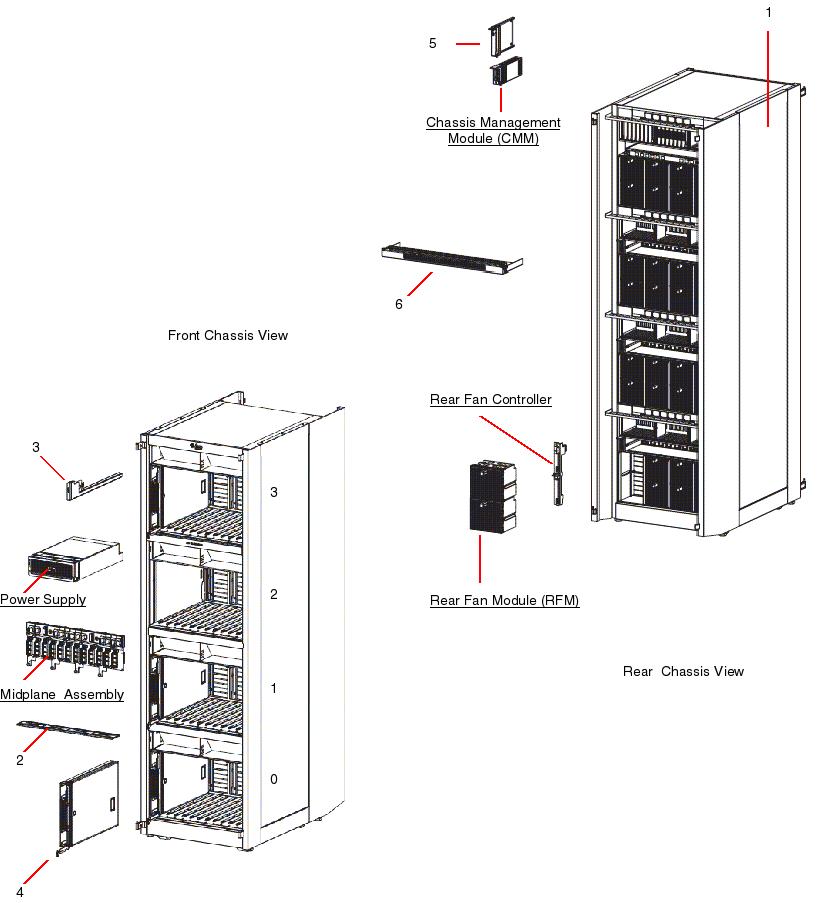

Sun Blade 6048, RoHS:YL Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
1 540-7543 System Assembly, L
2
  • 330-4627
  • Midplane Air Baffle,
3
  • 371-1448 [C]
  • Front Indicator Module
NS
    • 501-7378
    • LED Board Assembly, L
NS
  • 371-3027
  • Top Chassis Assembly (replaced by 371-4552 April 2009)
NS
    • 371-0296
    • Front Alloy Door,
NS
    • 371-1340
    • Rear Alloy Door,
4 371-1738 Blade Filler Panel, [X4460A] [S],
5 541-0729 PCI Express ExpressModule Filler Panel [X4462A],
NS
  • 341-1810
  • PCI Express Filler,
6 371-3065 NEM Filler Panel [X4461A] [S],
NS 371-4552 Top Chassis Assembly,
NS
  • 371-0296
  • Front Alloy Door,
NS
  • 371-1340
  • Rear Alloy Door,
