Delta A231
8400 Watt Power Supply

Servers: Sun Blade 6048

Option X4760A-Z

300-2057 300-2188
Type A231
AC Input Power Supply
Fan Tray 371-2524
Specification 950-5322
L		 Type A231
AC Input Power Supply
Fan Tray 371-4197
Specification 950-5322
L

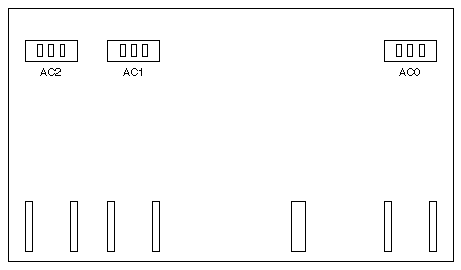

AC Input

Input 1 200-240Vac 50-60Hz 16.0A Max
Input 2 200-240Vac 50-60Hz 16.0A Max
Input 3 200-240Vac 50-60Hz 16.0A Max

DC Output

Output A +12V 240A
Output B +12V 240A
Output C +12V 240A
Output D +3.3V 12A

Sun Blade 6048 Codename: Constellation 48

Notes

  1. Power Supply 300-2057 includes Fan Assembly 371-2524.
  2. Fan Assembly 371-2524 is also available as a FRU.
  3. Power Supply 300-2188 includes Fan Assembly 371-4197.
  4. Fan Assembly 371-4197 is also available as a FRU.
  5. Fan Trays 371-2524 and 371-4197 are not mechanically interchangeable.
