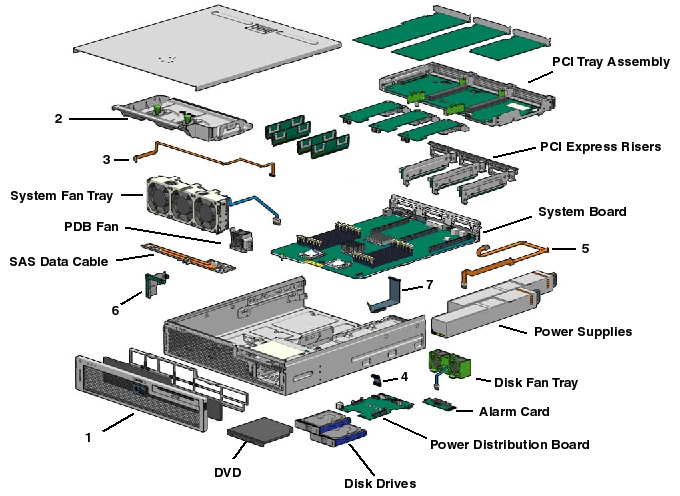

Sun Netra X4250 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-2210
[C]
CR2032 3V Battery,
n/a
CPU Module
Option #
Manufacturing Part #
Description
Previous Part #
X5178A
[S]
371-3953
[F]
2.13 GHz CPU, L5408 Intel Xeon Quad Core,
n/a
Cables
Option #
Manufacturing Part #
Description
Previous Part #
X311L
Localized Power Cord Kit - North America/Asia,
180-1097
[C]
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,
n/a
X312E
Localized Power Code Kit - China,
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M,
n/a
X312F
Localized Power Cord Kit - Argentina,
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black,
n/a
X312G
Localized Power Cord Kit - Korea,
180-1662
[C]
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black,
n/a
X312L
Localized Power Cord Kit - Continental Europe,
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black,
n/a
X314L
Localized Power Cord Kit - Swiss,
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black,
n/a
X317L
Localized Power Cord Kit - U.K.,
180-1997
[C]
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black,
n/a
X320A
Localized Power Cord Kit - North America/Asia,
180-2164
[C]
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black,
n/a
X332A
Localized Power Cord Kit - Taiwan,
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black,
n/a
X333A-25-10-IL
Localized Power Cord Kit Israel,
180-2130
[C]
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black,
n/a
X333A-25-15-JP
Localized Power Cord Kit Japan,
180-2243
[C]
IEC 320 C13 to PSE 5-15P, 15A/125V, 2.5M, Black,
n/a
X333A-25-15-TW
Localized Power Cord Kit - Taiwan,
180-2333
[C]
IEC 320 C13 to CNS 690 - 15A/125V 2.5M Black,
n/a
X333F-25-15-JP
Localized Power Cord Kit Japan,
180-2244
[C]
IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black,
n/a
X340L
Power Kit for North America, L6-20 20A Twist Lock Plug,
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M,
n/a
X383L
Localized Power Cord Kit - Danish,
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black,
n/a
X384L
Localized Power Cord Kit - Italian,
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black,
n/a
X386L
Localized Power Cord Kit - Australian,
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black,
n/a
X8224A
530-4088 [C]
4× Mini SAS Cable, 90° SFF-8087 to 90° SFF-8087
n/a
n/a
530-3100
RJ45F to DB9F Adapter,
n/a
n/a
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
Communication
Option #
Manufacturing Part #
Description
Previous Part #
X6000A 1
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000,
n/a
n/a
371-2699
[C]
Alarm Card,
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-2612
[C]
4-Drive Cluster/Media Bay Assembly,
n/a
4-Disk Backplane 411764100036,
n/a
Disk Bracket 340764100039
n/a
n/a
371-2647
[C]
2-Drive Cluster/Media Bay Assembly, PATA,
n/a
2-Disk Backplane 411764100006,
n/a
PATA DVD Backplane 340764100014,
n/a
PDB J7 to DVD PATA Backplane J1 Cable 422764100004
n/a
Disk/DVD Bracket 340764100014
n/a
n/a
371-3931
[C]
2-Drive Cluster/Media Bay Assembly, PATA,
371-2647
[C]
2-Disk Backplane 411764100006,
n/a
PATA DVD Backplane 340764100014,
n/a
PDB J7 to DVD PATA Backplane J1 Cable 422764100004
n/a
Disk/DVD Bracket 340764100014
n/a
n/a
371-4877
[C]
4-Drive Cluster/Media Bay Assembly,
371-2612
[C]
4-Disk Backplane 411764100036,
n/a
Disk Bracket 340764100039
n/a
n/a
371-4878
[C]
2-Drive Cluster/Media Bay Assembly, SATA,
540-7990
[C]
2-Disk Backplane 411764100006,
n/a
SATA DVD Backplane 411764100088,
n/a
Disk/DVD Bracket 340764100014
n/a
PDB J7 to DVD SATA Backplane J1 Cable 422764100013
n/a
n/a
540-7990
[C]
2-Drive Cluster/Media Bay Assembly, SATA,
n/a
2-Disk Backplane 411764100006,
n/a
SATA DVD Backplane 411764100088,
n/a
Disk/DVD Bracket 340764100014
n/a
PDB J7 to DVD SATA Backplane J1 Cable 422764100013
n/a
Disks
Option #
Manufacturing Part #
Description
Previous Part #
XRA-SS2ND-600G10K2
542-0289 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)
n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)
n/a
Nemo Bracket with Insulator,
n/a
XRB-SS2ND-300G10K2
542-0384 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)
n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2ND-146G10KZ
[S]
540-7152 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 of the following disks and brackets,
n/a
Seagate ST9146802SS [ST914602SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
n/a
Nemo Bracket with Insulator,
n/a
XRA-SS2ND-300G10K
[S]
540-7867 [C]
300GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Seagate ST93000SSUNG [ST930003SSUN300G]
(300GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
XRB-SS2ND-146G10K
[S]
540-7866 [C]
146GB - 10000 RPM SAS, NEBS Compliant Disk Assembly with 1 bracket and 1 of the following disks:,
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Seagate ST9146803SS [ST914603SSUN146G]
(146GB - 10000 RPM - SAS Disk),
n/a
Nemo Bracket with Insulator,
n/a
Ethernet
Option #
Manufacturing Part #
Description
Previous Part #
X1027A-Z
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
X4446A-Z
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
X4447A-Z
511-1422
[C]
PCI Express Quad Gigabit Ethernet UTP
501-7606
[C]
n/a
560-2884
Ship Kit for Gigabit Ethernet options
n/a
n/a
X5558A
375-3301
[C]
10Gb/sec XFP Optical Transceiver Short Range (SR), L
n/a
X5560A-Z
375-3495
[C]
10Gb/sec XFP Optical Transceiver Long Range (LR),
n/a
X7281A-2
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF,
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP,
n/a
n/a
n/a
n/a
7054729 [C]
PCI Express Dual Gigabit Ethernet UTP
371-0905
[C]
n/a
7054890 [C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
n/a
7055021 [C]
PCI Express Quad Gigabit Ethernet UTP
511-1422
[C]
+
n/a
n/a
7056733 [C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
Fan
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-2628 [C]
System Fan (FT0),
n/a
n/a
371-2629 [C]
Disk Fan Tray (FT1),
n/a
n/a
371-2701 [C]
PDB Fan (FT2),
n/a
Fibre Channel
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCI2FC-QF4
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
SG-XPCIE2FC-EM4
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-EM8-Z
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF4
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCIE2FC-QF8-Z
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter,
n/a
SG-XPCI2FC-EM4-Z
[S]
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter,
n/a
NOTE: SG-XPCIE2FC-QF4 (4Gigabit/Sec PCI-E Dual FC Host Adapter) is NOT NEBS certified, This card is only supported in Non-NEBS environments
I/O
Option #
Manufacturing Part #
Description
Previous Part #
n/a
371-3763
[C]
PCI Tray Assembly,
n/a
n/a
540-7703
[C]
PCI Express Riser Kit,
n/a
n/a
n/a
n/a
Memory
Option #
Manufacturing Part #
Description
Previous Part #
X6381A
[S]
540-7347 [C]
4GB (2 × 2GB) Memory,
n/a
2GB Registered ECC DDR2-667/PC2-5300 DIMM,
n/a
X6382A
[S]
540-7348 [C]
8GB (2 × 4GB) Memory,
n/a
4GB Registered ECC DDR2-667/PC2-5300 DIMM,
n/a
n/a
540-7346 [C]
2GB (2 × 1GB) Memory,
n/a
1GB Registered ECC DDR2-667/PC5300 DIMM,
n/a
Miscellaneous
Option #
Manufacturing Part #
Description
Previous Part #
X4234A-Z
594-3954
Air Filter 10-Pack,
n/a
n/a
X4353A-Z
594-4536
Air Filter for 4 Hard Disk Drive Chassis,
n/a
Air Filter for 4 Hard Disk Drive Chassis,
n/a
X949A-4
594-2682
Wago DC Connector Set (10 pack),
n/a
n/a
Wago DC Connector Strain Relief,
n/a
Wago DC Connector Opening Lever,
n/a
Power
Option #
Manufacturing Part #
Description
Previous Part #
n/a
300-2015
[C]
Type A221 658 Watt AC Input Power Supply,
n/a
n/a
300-2186
[C]
Type D218 660 Watt DC Input Power Supply,
n/a
n/a
300-2299
[C]
Type A247A 760 Watt AC Input Power Supply,
n/a
n/a
371-2532
[C]
Power Distribution Board, PATA,
n/a
n/a
371-4571
[F]
Power Distribution Board, SATA,
n/a
Rack
Option #
Manufacturing Part #
Description
Previous Part #
X2089A
350-1387
19" 2-post Slide Rail Kit,
n/a
X7901A-4
371-1478
19" 2-post Rackmount Kit,
n/a
X7902A-4
371-1481
23" 2-post Rackmount Kit,
n/a
X7904A-4
371-1479
600mm x 600mm Rackmount Kit,
n/a
X8099A-4
371-1480
19" 4-post Slide Mount Kit,
n/a
Removable Media
Option #
Manufacturing Part #
Description
Previous Part #
X4356A-Z
DVD-Writer/CD-Writer, L
371-2261
DVD-ROM / CD-ROM Drive Bezel,
n/a
540-7563
[C]
DVD-Writer/CD-Writer, PATA,
n/a
8x PATA DVD-Writer/24x CD-Writer,
n/a
8x PATA DVD-Writer / 24x CD-Writer,
n/a
X4358A-Z
SATA DVD-Writer/CD-Writer,
390-0486
[C]
8x SATA DVD-Writer/24x CD-Writer, L
390-0443
[C]
SCSI
Option #
Manufacturing Part #
Description
Previous Part #
SG-XPCIE2SCSIU320Z
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter,
n/a
SG-XPCIE8SAS-E-Z
375-3487
[C]
PCI Express 8-Port Host Adapter,
n/a
SG-XPCIE8SAS-I-Z
371-3255
[C]
PCI Express 8-Port SAS Controller,
n/a
SGXPCI2SCSILM320-Z
375-3365
2
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
SGXPCIESAS-R-INT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3536
3
[C]
8-Port SAS Adaptec RAID HBA,
n/a
n/a
375-3640
[C]
8-Port 6Gbps SAS-2 HBA (LSI),
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
1
371-2536
2-Drive Bezel,
7
n/a
PDB J7 to DVD PATA Backplane J1 Cable 422764100004
NS
370-6110
19" 4-Post Rackmount Kit,
NS
Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS
371-2535
4-Drive Bezel,
NS
371-4110
2U Chassis, L
2
6
NS
NS
530-4076 4
[C]
Cable Kit, L
3
Alarm Card J1 to Front LED Board Cable
4
PDB J3 to System Board J2501 Cable
5
PDB J4 to PCI Tray Board J1 Cable
NS
Alarm Card J3 to PDB J8 Cable
NS
Alarm Card J2 to System Board Tray Alarm Port Cable
NS
PDB J9 to Disk Backplane J502 Cable
NS
541-0605 [F]
Blank Disk Drive Filler,
NS
560-2892
Ship Kit,
NS
NS
RJ45 to DB25 Serial Port Adapter,
NS
Shielded RJ45 to RJ45 Cable, 4M,
NS
596-7648
X4250 Base Assembly, L
NS
n/a
M3×6mm Drive Cluster Screw with Green Head
NS
n/a
PDB to System Board Bus Bar
NS
n/a
Bus Bar Bracket
NS
n/a
Disk Bracket 340764100039
NS
n/a
Disk/DVD Bracket 340764100014
NS
n/a
PDB J7 to DVD SATA Backplane J1 Cable 422764100013
4 Cable Kit 530-4076 has no bill of material. The SAS cable is shown on drawing 530-4076 but is not included. Order SAS Cable 530-4088.
