Netra[tm] CT 810

N09-810
8-Slot cPCI Logic Enclosure

Table Legend

[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU)

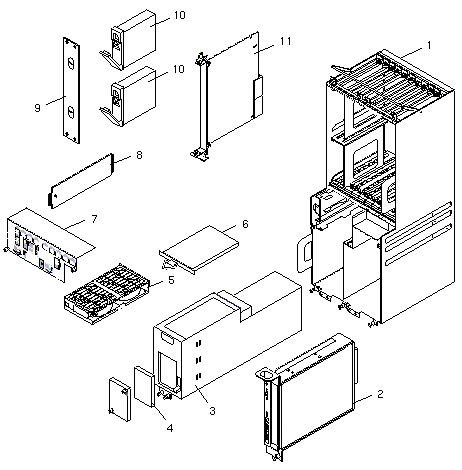

CODE PART # DESCRIPTION 1 - 540-5025 [F] 501-6119 8-Slot cPCI Drawer Assembly/FRU 8-Slot cPCI Backplane 2 2 540-4684 [F] 540-4409 [F] 10x DVD-ROM Assembly/FRU DDS-4 Tape Drive Assembly/FRU (>=540-4409-07) 3 3 4 300-1535 [F] 300-1543 [F] 250-1672 420 Watt DC Input Power Supply Type D148 420 Watt AC Input Power Supply Type A174 Power Supply Air Filter, Option 7221 5 540-4928 [F] Fan Tray 6 250-1671 Air Filter, Option 7221 7 540-5010 [F] System Status Panel 8 501-6118 [F] System Control Board 9 340-7140 Disk Drive Slot Cover 10 10 10 10 540-4689 [C] 540-5455 [C] 540-5771 [C] 540-7480 [C] 36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU 73.4GB 10000 RPM NEBS Disk Drive Assembly/FRU 1 73.4GB 10000 RPM NEBS Disk Drive Assembly/FRU 1 73.4GB 15000 RPM Disk Drive Assy/FRU 11 501-6171 [F] Alarm Board 11 501-5618 [F] Front CPU Transition Board NS Unknown Front Bezel 816-2480 Netra CT Server Product Overview 816-2481 Netra CT Server Installation Guide 816-2482 Netra CT Server Service Manual 816-2483 Netra CT Server System Administration Guide 817-0939 Netra CT Server Release Notes

1 Assembly 540-5455 was temporarily replaced by 540-5771 by WO_26047 . 1 Assembly 540-5455 was permanently replaced by 540-5771 by WO_25903 . 1 Assembly 540-5455 with drive 390-0108 was not tested in the CT 410/810.

Boards

PART #	DESCRIPTION
375-3025 [F] 375-3026 [F] 375-3114 [F] 375-3125 [F]	512MB Memory Module, Single Wide, 2"×4" 1GB Memory Module, Double Wide, 4"×5" 2GB Memory Module, Double Wide 1GB Memory Module, Single Wide
501-6403 [F] 501-6358 [F] 501-6772 [F] 375-3025 [F] 501-6967 [F] 501-6772 [F] 375-3025 [F] 501-6416 501-6358 [F] 375-3026 [F] 501-6417 501-6358 [F] 375-3114 [F] 501-6529 [F] 501-6358 [F] 375-3125 [F] 501-6913 [F] 501-6772 [F] 375-3125 [F]	1GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 0MB 650MHz CP2140 CPU FRU 512B Memory Module, Double Wide 1GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 512B Memory Module, Double Wide 2GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 1GB Memory Module, Double Wide 4GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 2GB Memory Module, Double Wide 2GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 1GB Memory Module, Single Wide 2GB 650MHz CP2140 CPU 0MB 650MHz CP2140 CPU FRU 1GB Memory Module, Single Wide
501-7062 [F] 501-7032 [F] 501-7064 [F]	2GB 960MHz CP2500 CPU FRU CP2500 Rear Transition Module CP2500 Rear Transition Module Satellite
501-5618 [F] 501-6437 [F] 501-6479 [F] 501-6124 [F] 501-7034 [F]	Front CPU Transition Board, Netra CT 810 Rear CPU Transition Board, Netra CT 410/810 Rear CPU Transition Board w PIM/PMC, Netra CT 410/810 Rear Alarm Transition Board, Netra CT 410/810 Rear Alarm Transition Board, Netra CT 410/810
340-6399 340-6410 340-6483 340-6484 370-4003 340-7367 340-7368	Rear Power Input Filler Panel Front Power Input Filler Panel Rear Empty Drawer Filler Panel Front Empty Drawer Filler Panel cPCI Filler Panel (replaced by 340-7367 and 340-7368) cPCI Rear Filler Panel (fails EMI - use 370-4003) cPCI Front Filler Panel (fails EMI - use 370-4003)
