StorEdge 10X DVD-ROM

Workstations: Ultra 60, 80
Sun Blade 1000, 2000
Servers: Enterprise 250, 450, 220R, 420R
Enterprise 3500, 4500, 5500, 6500
Sun Fire 280R, V880, 12K, 15K, E20K, E25K
Telco: Netra 20, ct 800
Netra t1120/1125, t1400/1405
Disk Arrays: StorEdge D240

Options 5883 / 6168

390-0025
Toshiba SD-M1401 (<= -02)
Toshiba SD-M1711 (>= -03)
SCSI Interface
1 5/8" Height
Medium Grey Bezel
540-4684 595-5473
Netra ct 800 FRU
Netra CT 810 FRU
D240 FRU
Assembly 599-2396
or Assembly 540-5699

Front View

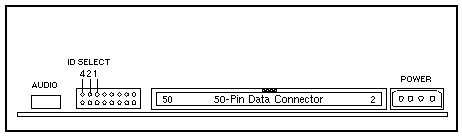

Rear View

Notes

  1. The minimum CD-ROM mode operating system is Solaris 2.5.1.
  2. The minimum DVD-ROM mode operating system is Solaris 8.
  3. The M1401 model requires patch 111649 to run on Solaris.
  4. The M1401 reached end of production in August 2003.
  5. The M1401 was replaced with the M1711 in August 2003.
  6. Performance specifications for the M1711 exceed those of the M1401.

Reference

Installation and User's Guide, 806-5518.
