20-40GB 4 mm DDS-4 Tape Drive

Workstations: Ultra 2, 60, 80
Sun Blade 1000, 2000
Servers: Enterprise 250, 450, 220R, 420R
Enterprise 3x00, 4x00, 5x00, 6x00
Sun Fire 280R, V880, V250, V1280, E2900
Sun Fire 12K, 15K, E20K, E25K
Telco: Netra 20, 1280
Netra t1400/1405
Disk Arrays: StorEdge D240

Options 5881 / 6295 / 6296 / 6297 / 7165 / TAP4MM-012A

390-0027 390-0028 390-0090
HP C5683-00625
Wide SCSI Enabled
Medium Grey Bezel
Option 6296 + Unipack
HP C5683-00625
Wide SCSI Disabled
Medium Grey Bezel
Option 6295
V120/V1280 FRU
Netra 120/1280 FRU
Medium Grey Bezel
Option 6297
540-4409 540-4409 595-5472
ct 800 FRU
RMM Tray with
DDS-4 390-0027
540-4409-05/06
ct 800/CT 810 FRU
RMM Tray with
DDS-4 390-0028
540-4409-07
D240 FRU
Assembly 599-2397
or Assembly 540-5700
DDS-4 390-0027

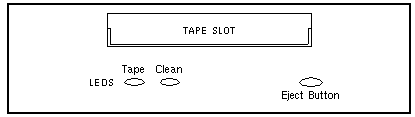

Front View

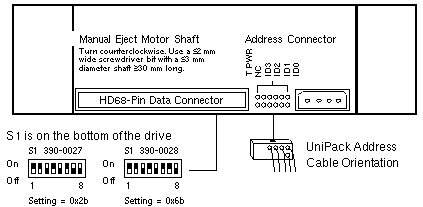

Rear View

Notes

  1. The minimum operating system is Solaris 2.5.1 with Patch 103857.
  2. Use the Address Cable or 2 mm shunts on the Address Connector.
  3. Solaris only supports S1 switch settings 0x2b and 0x6b.
  4. The Blank Data Tape part number is 370-4083-01.
  5. The Cleaning Kit part number is 370-1613-01.
  6. The DDS-4 drive can read and write DDS-2, DDS-3, and DDS-4 tapes.
  7. DDS-1 (90m) tapes can be read but not written by the DDS-4 drive.

Adapter Notes

  1. Option 6295 includes Narrow SCSI Adapter Cable 530-2924.
  2. Options 6295 and 7165 include Narrow SCSI 50-68 Pin Adapter 370-3548.
  3. Adapter 370-3548 is a Meritec 980211-1M1-3M0.
  4. Adapter Kit 540-4484 includes Cable 530-2924 and Adapter 370-3548.
  5. Option 6295 includes Adapter Kit 540-4484.
  6. Netra 20 SCSI Cable 530-3065 includes a 50-68 Pin Adapter.
  7. The Netra 20 50-68 Pin Adapter is a Datamate DM500-5068-25.

Reference

DDS-4 Tape Drive Installation and User Guide, 806-3313.
