Sun Netra 6000 Modular System - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Backplane/Centerplane
Option # Manufacturing
Part #
Description Previous
Part #
7100417 541-4712 [F] PCI Express 2.0 Midplane Assembly (Netra 6000 M2, DC) n/a
  • 541-4239
  • PCI Express 2.0 Midplane Assembly, L
n/a
    • 330-4398
    • Busbar Bolt Cover,
n/a
    • 330-4399
    • Busbar Cover,
n/a
    • 341-2337
    • Busbar,
n/a
    • 341-3592
    • Busbar Spacer,
n/a
    • 511-1487
    • PCI Express 2.0 Midplane,
n/a
7100418 541-4711 [F] PCI Express 2.0 Midplane Assembly (Netra 6000 M2, AC) n/a
  • 541-4239
  • PCI Express 2.0 Midplane Assembly, L
n/a
    • 330-4398
    • Busbar Bolt Cover,
n/a
    • 330-4399
    • Busbar Cover,
n/a
    • 341-2337
    • Busbar,
n/a
    • 341-3592
    • Busbar Spacer,
n/a
    • 511-1487
    • PCI Express 2.0 Midplane,
n/a
n/a 541-4289 [F] PCI Express 2.0 Midplane Assembly (Netra 6000 AC), L n/a
  • 541-3789 [F]
  • PCI Express 2.0 Midplane Assembly, L
n/a
    • 330-4398
    • Busbar Bolt Cover,
n/a
    • 330-4399
    • Busbar Cover,
n/a
    • 341-2337
    • Busbar,
n/a
    • 341-3592
    • Busbar Spacer,
n/a
    • 511-1298
    • PCI Express 2.0 Midplane, L
n/a
n/a 541-4393 [F] PCI Express 2.0 Midplane Assembly (Netra 6000 DC), L n/a
  • 541-4239
  • PCI Express 2.0 Midplane Assembly, L
n/a
    • 330-4398
    • Busbar Bolt Cover,
n/a
    • 330-4399
    • Busbar Cover,
n/a
    • 341-2337
    • Busbar,
n/a
    • 341-3592
    • Busbar Spacer,
n/a
    • 511-1487
    • PCI Express 2.0 Midplane,
n/a
NOTE: The Netra 6000 AC and Netra 6000 DC have a Last Order Date of November 30, 2011.
Cables
Option # Manufacturing
Part #
Description Previous
Part #
X2121A-3M-N 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m, n/a
X2121A-5M-N 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m, n/a
X2127A-10M 530-4480 [C] MPO to 4x LC Duplex Splitter Cable, 10m n/a
X2127A-50M 530-4482 [C] MPO to 4x LC Duplex Splitter Cable, 50m n/a
X2130A-5M 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m, n/a
X4622A 1 Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter, L
530-3100 RJ45F to DB9F Adapter, n/a
530-3936 [C] USB/VGA/RJ45 Dongle Cable Adapter, n/a
X5074A-Z 4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320,
180-2005 [C] AC Input Power Cord, 20A, Americas, NEMA L6-20P to IEC320-C19, 4m, n/a
X5075A-Z 4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m,
180-2004 [C] AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m, n/a
X5076A-Z 4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M),
180-2095 Power Cord, 20A, (IEC 320-C19 to IEC 320, 1.5 M), n/a
X5077A-Z 4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M),
180-2096 [C] Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M), n/a
X5915A 2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M,
375-3493 [C] Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M, n/a
X5044A-Z [S] 6 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320-C19, 4m,
180-2005 [C] AC Input Power Cord, 20A, Americas, NEMA L6-20P to IEC320-C19, 4m, n/a
1 X4622A is not a NEBS qualified product. The dongle cable is for debug purposes.
NOTE: Power cords are required for the AC system. The DC system is a lug and post design, where the cabling is provided by the customer. Please see the Sun Netra 6000 Modular System Installation Guide (821-0930) for details on DC system power cabling.
Ethernet
Option # Manufacturing
Part #
Description Previous
Part #
7100090 2 7020536 [C] Virtualized 40-Gigabit Ethernet Network Express Module n/a
  • NEM Board
n/a
7100483 7048479 [C] Sun Quad Port GbE PCI Express 2.0 ExpressModule, UTP 7014759 [C]
7100486 7048478 [C] Sun Quad Port GbE PCI Express 2.0 ExpressModule, MMF 7014763 [C]
7100490 7014780 [C] Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule n/a
X1110A-Z 375-3616 Dual 10-Gigabit SFP+ Ethernet ExpressModule, n/a
X2073A 541-3770 [C] 24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM), L n/a
X2123A 135-1203 [C] 1000Base-T SFP Transceiver n/a
X2124A-N 135-1204 [C] 10Gbps QDR Ethernet QSFP Transceiver, n/a
X2129A-N 530-4449 [C] 10Gbps Short Wave Pluggable Transceiver (SFP+), n/a
X4250A 371-1451 [C] 10-port, GbE, Pass-Thru Network Express (NEM) Module, L n/a
X5562A-Z 135-1205 [C] 10Gbps Long Wave Pluggable Transceiver (SFP+) n/a
X7284A-Z 375-3498 [C] x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule n/a
n/a 7055026 [C] x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule 375-3498 [C]
2 Requires CMM 7019286 and Midplane 541-3789 or 541-4239.
Fan
Option # Manufacturing
Part #
Description Previous
Part #
n/a 371-1446 [C] Rear Fan Controller Assembly, n/a
  • 501-7377
  • Rear Fan Controller Board,L
n/a
n/a 371-1450 3 [C] Rear Fan Module (RFM), n/a
n/a 371-4753 4 [C] Rear Fan Module (RFM), n/a
3 Supported in Netra 6000 AC & Netra 6000 DC.
4 Supported in Netra 6000 M2 & Netra 6000 M2 DC.
Fibre Channel
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCIEFCGBE-E8-Z 371-4666 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex n/a
SG-XPCIEFCGBE-Q8-Z 371-4522 8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic n/a
Power
Option # Manufacturing
Part #
Description Previous
Part #
n/a 300-2190 5 [C] Type A206 5600 Watt AC Input Power Supply, n/a
  • Power Supply Fan Tray, L
n/a
n/a 300-2259 6 [C] Type A251 5740 Watt AC Input Power Supply, L n/a
  • Power Supply Fan Tray, L
n/a
n/a 300-2263 [C] Type D223 2500 Watt DC Input Power Supply (Netra 6000 DC & Netra 6000 M2 DC), n/a
n/a 371-4823 [C] Power Supply Adapter Assembly (Netra 6000 DC), n/a
n/a 371-4964 [F] DC Input Unit, Power Plenum, n/a
  • 263-4502
  • Netra 6000 DC Nameplate
n/a
  • 511-1550
  • LED Board
n/a
n/a 530-4491 [F] PSU Input Power Cables, n/a
n/a 530-4492 LED Cable, n/a
5 Supported in Netra 6000 AC.
6 Supported in Netra 6000 M2 AC.
SCSI
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCIE8SAS-EB-Z 375-3486 [C] Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule, n/a
System Service Processor
Option # Manufacturing
Part #
Description Previous
Part #
X4626A [S] 371-1447 7 [C] Chassis Management Module (CMM) Assembly, L n/a
  • Chassis Management Module (CMM) Board, L
n/a
  • Service Processor, L
501-7516 [C]
n/a 501-7516 [C] Chassis Management Module (CMM) Assembly, L n/a
n/a 7026736 [F] Chassis Management Module Assembly (Netra 6000 M2 AC & Netra 6000 M2 DC) 7014261 [S]
  • 7019286 [F]
  • Chassis Management Module (CMM) Assembly
541-4340
    • Chassis Management Module (CMM) Board, L
n/a
7 Supported in Netra 6000 DC & Netra 6000 AC.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

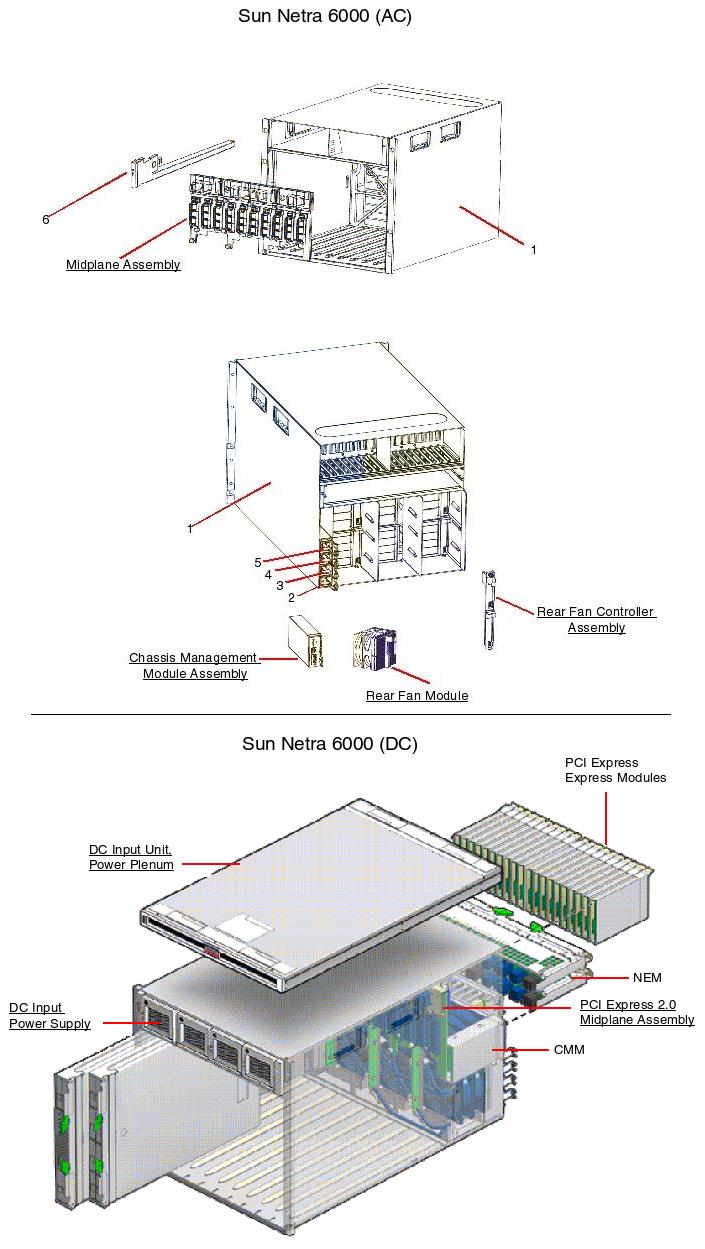

Sun Netra 6000 Modular System Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 594-6892 N6000-DC M2 System Assembly
  • 371-4964 [F]
  • DC Input Unit, Power Plenum,
NS
    • 263-4502
    • Netra 6000 DC Nameplate
    • 511-1550
    • LED Board
-
  • 530-4493
  • Power Supply Adapter Signal Cable
-
  • 541-4686
  • DC Chassis Assembly
-
    • 371-4963
    • DC Chassis Subassembly
-
      • 371-1448
      • Front Indicator Module
-
        • 501-7378
        • LED Board Assembly, L
NS
    • 330-4342
    • Midplane Air Baffle,
1 594-6438 N6000-AC System Assembly, L
1
  • 541-4254
  • Chassis Assembly, L
-
    • 263-4228
    • Netra 6000 Nameplate,
-
    • 350-1689 8
    • Chassis Subassembly
-
    • 371-1448
    • Front Indicator Module
-
      • 501-7378
      • LED Board Assembly, L
2
    • 371-1449
    • AC1/PS0-AC0 Internal Power Cord, 802mm,
3
    • 371-1610
    • AC2/PS0-AC1 Internal Power Cord, 665mm,
4
    • 371-1611
    • AC3/PS1-AC0 Internal Power Cord, 584mm,
5
    • 371-1612
    • AC4/PS1-AC1 Internal Power Cord, 498mm,
NS
    • 330-4342
    • Midplane Air Baffle,
NS
    • n/a
    • AC Input Line Filter, Schurter C20F
1 594-6893 N6000-AC M2 System Assembly
1
  • 541-4687
  • Chassis Assembly
-
    • 263-4228
    • Netra 6000 Nameplate,
-
    • 371-1448
    • Front Indicator Module
-
      • 501-7378
      • LED Board Assembly, L
2
    • 371-1449
    • AC1/PS0-AC0 Internal Power Cord, 802mm,
3
    • 371-1610
    • AC2/PS0-AC1 Internal Power Cord, 665mm,
4
    • 371-1611
    • AC3/PS1-AC0 Internal Power Cord, 584mm,
5
    • 371-1612
    • AC4/PS1-AC1 Internal Power Cord, 498mm,
NS
    • 330-4342
    • Midplane Air Baffle,
NS
    • 371-3244
    • Chassis Subassembly,
NS
    • n/a
    • AC Input Line Filter, Schurter C20F
NS 263-4502 Netra 6000 DC Nameplate
NS 371-1737 Network Express Module (NEM) Filler Panel,
NS 371-1738 Blade Filler Panel, [X4460A] [S],
NS 371-3245 Mounting Rail Kit,
NS 371-3610 Shipping Bracket Kit
NS 541-0729 PCI Express ExpressModule Filler Panel [X4462A],
NS
  • 341-1810
  • PCI Express Filler,
NS 594-6726 [F] N6000-DC System Assembly, L
NS
  • 541-4381
  • Chassis Assembly, L
    • 371-4964 [F]
    • DC Input Unit, Power Plenum,
NS
      • 263-4502
      • Netra 6000 DC Nameplate
      • 511-1550
      • LED Board
-
    • 371-4963
    • DC Chassis Subassembly
-
      • 371-1448
      • Front Indicator Module
-
        • 501-7378
        • LED Board Assembly, L
NS
    • 330-4342
    • Midplane Air Baffle,
8 350-1689 replaced 371-3244 in the 541-4254 chassis assembly in January 2011.
