Service Processor

501-7516 501-7985 501-7712 501-7986
FAB 270-6979
Flash 525-2390
Sun Blade 6000
L
FAB 270-6979-04
Flash 525-2390
Sun Blade 6000
L
FAB 270-6979
Flash 525-2395
Sun Blade X6220
L
FAB 270-6979-04
Flash 525-2395
Sun Blade X6220
L

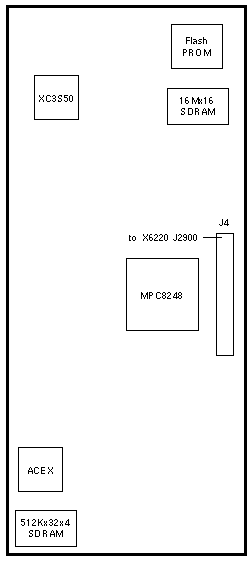

Top Side View

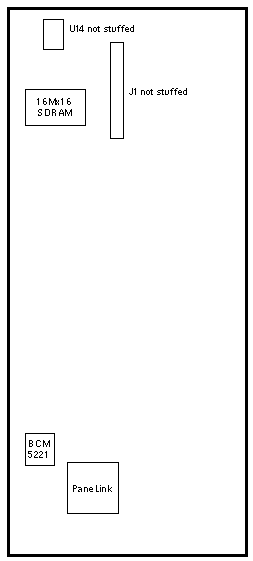

Bottom Side View

Netra 6000 Codename: N6000AC
Netra 6000 Codename: N6000DC
Sun Blade 6000 Codename: Constellation 10
Sun Blade X6220 Codename: Gemini

Notes

  1. The 501-7516 is a reprogrammed 501-6979. Flash 525-2153 is changed to 525-2390.
  2. The 501-7712 is a reprogrammed 501-6979. Flash 525-2153 is changed to 525-2395.
  3. The 501-7985 and 501-7986 were released in October 2007. (WO_37182)
  4. The Sun Blade X6220 Flash Memory slot is located below the Service Processor.

References

  1. Sun Blade 6000 Modular System Documentation.
  2. Sun Blade X6220 Server Module Documentation.
  3. Sun Netra 6000 Modular System Documentation.
