Chassis Management Module

501-7379 371-1447

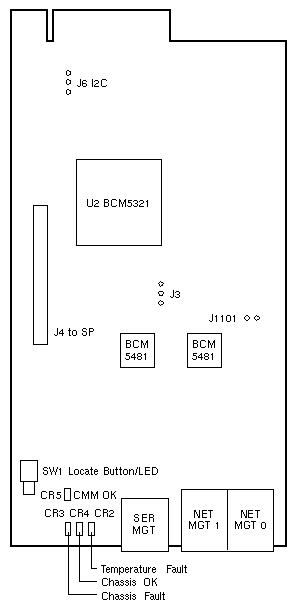

CMM Board
L
CMM Assembly/FRU
L

Netra 6000 Codename: N6000AC
Netra 6000 Codename: N6000DC
Sun Blade 6000 Codename: Constellation 10

Notes

  1. Assembly 371-1447 includes CMM 501-7379 and Service Processor 501-7516.
  2. SP 501-7985 replaced 501-7516 in 371-1447-07 Rev 51 in October 2007. (WO_37182)
  3. The SP is fastened to the CMM with locking standoff 240-4686.
  4. The locking standoff is fastened to the CMM Board with snap rivet 240-4699.

References

  1. Sun Blade 6000 Modular System Documentation.
  2. Sun Netra 6000 Modular System Documentation.



Chassis Management Module

511-1531
CMM Board
541-4340 7019286 7014261 7026736
CMM Assembly
Sun Blade 6000 M2
inactivated 06/28/11
CMM Assembly
Sun Blade 6000 M2
Netra 6000
replaced 541-4340
CMM Assembly
Netra 6000 M2
inactivated 09/07/11
CMM Assembly
Netra 6000 M2
replaced 7014261

Sun Blade 6000 Codename: Constellation 10
Netra 6000 M2 Codename: N6000M2

Notes

  1. The SP is fastened to the CMM with locking standoff 240-4686.
  2. The locking standoff is fastened to the CMM Board with snap rivet 240-4699.
  3. The CMM Assembly includes Enclosure 350-1575 or 7019290 and CMM 511-1531.
  4. CMM 7019286 fixed a grounding issue between the CMM and the Enclosure by
    replacing nylon washer 240-6368 with conductive washer 240-2785. This change
    is required for NEM Option 7100090.

References

  1. Sun Blade 6000 Modular System Documentation.
  2. Sun Netra 6000 Modular System Documentation.
