SPARCstation[tm] 5 Workstation

SS5 / Netra[tm] i5 / Netra s5 / Netra i500 / Netra i525

3-Slot SBus Logic Enclosure

System Board
Memory Modules
(please use Search function to find other SS4 components)

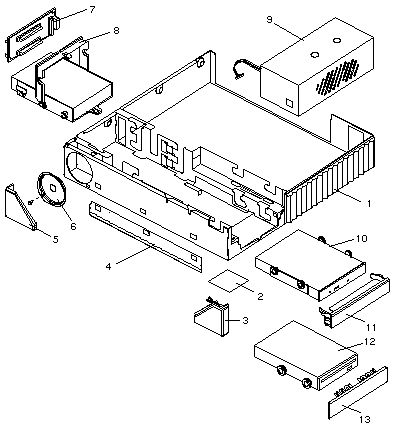

Table Legend
[F] = Field Replaceable Unit (FRU)

CODE PART # DESCRIPTION
1
-
-
-
2
3
4
5
6
7
-
-
-
-
-		 540-2438 [F]
240-1530 [F]
340-2915
540-2548
330-1450
540-2547
261-1009
330-1683
370-1579 [F]
501-2462 [F]
240-2159
330-1753
530-2053 [F]
530-2066 [F]
530-2080 [F]		 Base Assembly (phased out Nov/Dec 1996)
M3 × 6 mm Screw, Speaker Assembly
Chassis
Right Side Vent Panel
Foot
Right Front Corner
Purple Chassis Label
Left Front Corner
Speaker
SCSI I/O Board
M2 × 5 mm Screw
Bracket
Internal SCSI Cable, 660 mm
DC Wire Harness
Speaker and LED Wire Harness
8 540-2443 [F]
540-2560 [F]
540-2699 [F]
540-3988 [F]		 535MB Disk Drive Assembly/FRU
1.05GB Disk Drive Assembly/FRU
2.1GB Disk Drive Assembly/FRU
4.2GB Disk Drive Assembly/FRU
9
9
9
-
-		 300-1215 [F]
300-1279 [F]
540-2657
300-1279 [F]
370-1873		 150 Watt Power Supply (obsolete)
150 Watt Power Supply
Nordic Country Power Supply Assembly
150 Watt Power Supply
Noise Kit
10
-
-
-
-
-
NS		 540-2500 [F]
240-1463 [F]
240-2086 [F]
330-1748 [F]
340-3046
370-1679
530-2079 [F]		 CD-ROM Assembly/FRU
#6-32 × 1/4" Screw
M3 × 4 mm Screw
Mounting Grommet
Mounting Bracket
CD-ROM Drive
CD-ROM to CPU Audio Cable, 435 mm
11 540-2553 [F] CD-ROM Filler Panel, Purple
12
-
-
-
12
-
-
NS		 540-2509
240-2121 [F]
330-1748 [F]
370-1419 [F]
370-2151 [F]
240-1530 [F]
240-2295
530-2067 [F]		 Floppy Drive Assembly/FRU
#6-32 Shoulder Screw
Drive Mounting Grommet
Floppy Drive
Floppy Drive Assembly/FRU (replaced 540-2509 12/95)
M3 × 6 mm Screw
M3 Shoulder Screw
Internal Floppy Cable, 190 mm
13
13		 540-2551 [F]
540-2552 [F]		 Floppy Filler Panel without cutout, Purple
Floppy Filler Panel with cutout, Purple
NS
NS
NS
NS
NS
NS
NS
NS
NS
-
NS		 240-2101 [F]
250-1200
260-3059 [F]
260-6483
261-2082
261-4598
501-5468
261-4599
540-2434 [F]
240-2195
540-2540 [F]		 M3 Machine Screw, CPU, P/S, and Top Cover
Spring for M3 Screw, CPU, P/S, and Top Cover
Sun Logo
SPARCstation 5 Nameplate
SPARCserver 5 Nameplate
Netra i Nameplate
Floppy Interface Board
Netra s Nameplate
Top Cover Assembly
Tinnerman Clip (added to 540-2434-03)
Lockbox Assembly


References:

SPARCstation 5 Workstation

SS5 / Netra i 5 / Netra j 5/170

3-Slot SBus Logic Enclosure

System Board
Memory Modules
(please use Search function to find other SS5 components)

Table Legend
[F] = Field Replaceable Unit (FRU)

CODE PART # DESCRIPTION
1
-
-
-
2
3
4
5
6
7
-
-
-
-
-
-		 540-2850
240-1530 [F]
340-3397
540-2847
330-1450
540-2848
261-1009
330-1683
370-1579 [F]
501-2462 [F]
240-2159
330-1753
530-2278 [F]
530-2279 [F]
530-2291
530-2341 [F]		 Base Assembly (phased in July 1996)
M3 × 6 mm Screw, Speaker Assembly
Chassis
Right Side Vent Panel
Foot
Right Front Corner
Purple Chassis Label
Left Front Corner
Speaker
SCSI I/O Board
M2 × 5 mm Screw
Bracket
Internal SCSI Cable, 485 mm
DC Wire Harness
Speaker and LED Wire Harness (obsolete)
Speaker and LED Wire Harness
8 540-2560 [F]
540-2699 [F]
540-3988 [F]		 1.05GB Disk Drive Assembly/FRU
2.1GB Disk Drive Assembly/FRU
4.2GB Disk Drive Assembly/FRU
9
9
-
-		 300-1279 [F]
540-2657
300-1279 [F]
370-1873		 150 Watt Power Supply
Nordic Country Power Supply Assembly
150 Watt Power Supply
Noise Kit
10
-
-
-
10
-
-
-
NS
11		 540-2852 [F]
240-2296
330-2036
370-2102 [F]
540-2901 [F]
240-2296
330-2036
370-2816 [F]
530-2280 [F]
540-2845		 SunCD 4 CD-ROM Assembly/FRU
M3 Shoulder Screw
Mounting Grommet
SunCD 4 CD-ROM Drive
SunCD 12x CD-ROM Assembly
M3 Shoulder Screw
Mounting Grommet
12X CD-ROM Drive
CD-ROM to CPU Audio Cable, 435 mm
CD-ROM Filler Panel, Light Grey
12
-
-
-
-
NS		 540-2854 [F]
240-2318
330-2036
340-3401
370-2302
530-2277 [F]		 Floppy Drive Assembly/FRU
M2.5 × 3 mm Screw
Mounting Grommet
Mounting Bracket
Floppy Drive
Internal Floppy Cable, 250 mm
13
13		 540-2846
540-2853 [F]		 Floppy Filler Panel without cutout, Light Grey
Floppy Filler Panel with cutout, Light Grey
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
-		 240-2101 [F]
250-1200
260-3059 [F]
260-6483
261-2082
261-4598
261-4599
501-5468
540-2844 [F]
540-2540 [F]
240-2206		 M3 Machine Screw, CPU, P/S, and Top Cover
Spring for M3 Screw, CPU, P/S, and Top Cover
Sun Logo
SPARCstation 5 Nameplate
SPARCserver 5 Nameplate
Netra i Nameplate
Netra s Nameplate
Floppy Interface Board
Top Cover Assembly
Lockbox Assembly
M3 × 12 mm Screw
