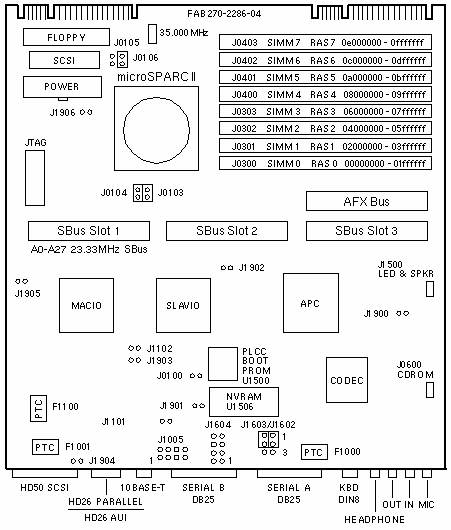

SPARCstation 5

SS5-70 / Netra i5

501-2286 501-2472 501-2508
70MHz 0MB FRU
2.3/2.5 microSPARC II
70MHz 16MB
2.3/2.5 microSPARC II
70MHz 32MB
2.3/2.5 microSPARC II
501-2798 501-2802 501-2811
70MHz 0MB FRU
microSPARC II*
70MHz 16MB
microSPARC II*
70MHz 32MB
microSPARC II*

* The chronological revision is 3.2, 3.3, 4.0.2, 2.6, and 2.6.2

Jumper Settings

Jumpers J0103 and J0104 set the microSPARC II memory controller wait states. Wait states are used to maintain the memory timing requirements of 60ns DRAM.

JUMPER PINS SETTING DESCRIPTION
J0103
J0104
1-2
1-2
In*
In*
spd_sel<0> = 0 (70MHz)
spd_sel<1> = 0 (70MHz)
J0103
J0104
1-2
1-2
Out
In
spd_sel<0> = 0 (85MHz)
spd_sel<1> = 1 (85MHz)
J0103
J0104
1-2
1-2
In
Out
spd_sel<0> = 1 (100MHz)
spd_sel<1> = 0 (100MHz)
J0103
J0104
1-2
1-2
Out
Out
spd_sel<0> = 1 (125MHz)
spd_sel<1> = 1 (125MHz)
* Default setting for the 70MHz CPU

Jumpers J0105 and J0106 set the divide control bits used by the microSPARC II. Set the 70MHz microSPARC II to divide by three to obtain an SBus speed of 23.33MHz.

JUMPER PINS SETTING DESCRIPTION
J0105
J0106
1-2
1-2
In
In
div_ctl <0> = 0 /2
div_ctl <1> = 0 /2
J0105
J0106
1-2
1-2
Out*
In*
div_ctl <0> = 1 /3
div_ctl <1> = 0 /3
J0105
J0106
1-2
1-2
In
Out
div_ctl <0> = 0 /4
div_ctl <1> = 1 /4
J0105
J0106
1-2
1-2
Out
Out
div_ctl <0> = 1 /5
div_ctl <1> = 1 /5
* Default setting for the 70MHz CPU

JUMPER PINS SETTING DESCRIPTION
J0100 1-2 Out Pin-1=Gnd / Pin-2=POK
J1101 1-2
1-2
Out
In
1= normal (default)
0= -4.5db
J1102 1-2
1-2
Out
In
1=100 Ohm (default)
0=150 Ohm
J1005 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point tpe<0>
Test point tpe<1>
Test point tpe<2>
Test point tpe<3>
J1602
J1603
J1602
J1603
1-2
1-2
2-3
2-3
In
In
In
In
Select RS-423 (default)
Select RS-423 (default)
Select RS-232 (-12Vdc)
Select RS-232 (+12Vdc)
J1604 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point rxda
Test point txda
Test point rxdb
Test point txdb
J1900 N/A N/A Ground test point
J1901 N/A N/A Ground test point
J1902 N/A N/A Ground test point
J1903 N/A N/A Ground test point
J1904 N/A N/A Ground test point
J1905 N/A N/A Ground test point
J1906 N/A N/A Ground test point

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 Edition II.
  2. SS5 audio requires the Solaris 1.1.1 Version B ms2 patch.
  3. Install the highest capacity SIMM in Slot 0 under Solaris 1.x.
  4. Use the MFAR value to determine the address of a failing SIMM.
  5. The PLCC Boot PROM is not a FRU and is not field replaceable.
  6. Serial Ports A and B support synchronous operation.

Reference

SPARCstation 5 Service Manual, 801-6396.

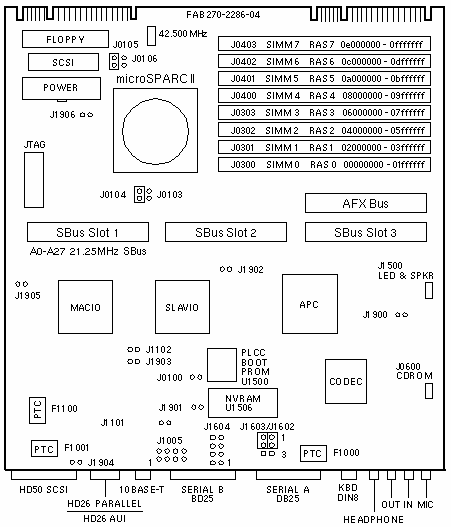

SPARCstation 5

SS5-85 / Netra i5 / Netra s5

501-2572 501-2574 501-2799 501-2803
85MHz 0MB FRU
2.3/2.5 microSPARC II
85MHz 32MB
2.3/2.5 microSPARC II
85MHz 0MB FRU
3.x microSPARC II
85MHz 32MB
3.x microSPARC II

Power

0MB Board
4.0 Amps @ +5Vdc
0.4 Amps @ +12Vdc
0.1 Amps @ -12Vdc
8.0 Watts

SPARCstation 5

SS5-85 / Netra i5 / Netra s5

501-2815 501-2816
85MHz 0MB FRU
microSPARC II *
85MHz 32MB
microSPARC II *

* The chronological revision of microSPARC II is 2.6 and 2.6.2.

Power

0MB Board
4.0 Amps @ +5Vdc
0.4 Amps @ +12Vdc
0.1 Amps @ -12Vdc
8.0 Watts

501-2572 / 501-2574 / 501-2799 / 501-2803 / 501-2815 / 501-2816
Jumper Settings

Jumpers J0103 and J0104 set the microSPARC II memory controller wait states. Wait states are used to maintain the memory timing requirements of 60ns DRAM.

JUMPER PINS SETTING DESCRIPTION
J0103
J0104
1-2
1-2
In
In
spd_sel<0> = 0 (70MHz)
spd_sel<1> = 0 (70MHz)
J0103
J0104
1-2
1-2
Out*
In*
spd_sel<0> = 0 (85MHz)
spd_sel<1> = 1 (85MHz)
J0103
J0104
1-2
1-2
In
Out
spd_sel<0> = 1 (100MHz)
spd_sel<1> = 0 (100MHz)
J0103
J0104
1-2
1-2
Out
Out
spd_sel<0> = 1 (125MHz)
spd_sel<1> = 1 (125MHz)
* Default setting for the 85MHz CPU

Jumpers J0105 and J0106 set the divide control bits used by the microSPARC II. Set the 85MHz microSPARC II to divide by four to obtain an SBus speed of 21.25MHz.

JUMPER PINS SETTING DESCRIPTION
J0105
J0106
1-2
1-2
In
In
div_ctl <0> = 0 /2
div_ctl <1> = 0 /2
J0105
J0106
1-2
1-2
Out
In
div_ctl <0> = 1 /3
div_ctl <1> = 0 /3
J0105
J0106
1-2
1-2
In*
Out*
div_ctl <0> = 0 /4
div_ctl <1> = 1 /4
J0105
J0106
1-2
1-2
Out
Out
div_ctl <0> = 1 /5
div_ctl <1> = 1 /5
* Default setting for the 85MHz CPU

JUMPER PINS SETTING DESCRIPTION
J0100 1-2 Out Pin-1=Gnd / Pin-2=POK
J1101 1-2
1-2
Out
In
1= normal (default)
0= -4.5db
J1102 1-2
1-2
Out
In
1=100 Ohm (default)
0=150 Ohm
J1005 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point tpe<0>
Test point tpe<1>
Test point tpe<2>
Test point tpe<3>
J1602
J1603
J1602
J1603
1-2
1-2
2-3
2-3
In
In
In
In
Select RS-423 (default)
Select RS-423 (default)
Select RS-232 (-12Vdc)
Select RS-232 (+12Vdc)
J1604 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point rxda
Test point txda
Test point rxdb
Test point txdb
J1900 N/A N/A Ground test point
J1901 N/A N/A Ground test point
J1902 N/A N/A Ground test point
J1903 N/A N/A Ground test point
J1904 N/A N/A Ground test point
J1905 N/A N/A Ground test point
J1906 N/A N/A Ground test point

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 Edition II.
  2. SS5 audio requires the Solaris 1.1.1 Version B ms2 patch.
  3. Install the highest capacity SIMM in Slot 0 under Solaris 1.x.
  4. Use the MFAR value to determine the address of a failing SIMM.
  5. The PLCC Boot PROM is not a FRU and is not field replaceable.
  6. Serial Ports A and B support synchronous operation.

Reference

SPARCstation 5 Service Manual, 801-6396.

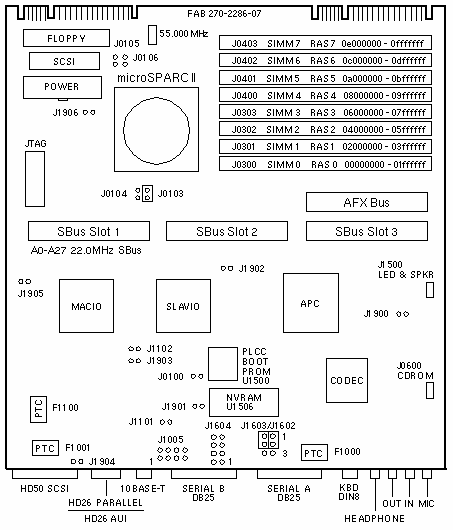

SPARCstation 5

SS5-110 / Netra i5 / Netra i500 / Netra i525

501-2778 501-2779
110MHz 0MB FRU
microSPARC II
110MHz 32MB
microSPARC II

Power: 0MB Board

4.0 Amps @ +5Vdc
0.4 Amps @ +12Vdc
0.1 Amps @ -12Vdc
8.0 Watts

Jumper Settings

Jumpers J0103 and J0104 set the microSPARC II memory controller wait states. Wait states are used to maintain the memory timing requirements of 60ns DRAM.

JUMPER PINS SETTING DESCRIPTION
J0103
J0104
1-2
1-2
In
In
spd_sel<0> = 0 (70MHz)
spd_sel<1> = 0 (70MHz)
J0103
J0104
1-2
1-2
Out
In
spd_sel<0> = 0 (85MHz)
spd_sel<1> = 1 (85MHz)
J0103
J0104
1-2
1-2
In*
Out*
spd_sel<0> = 1 (110MHz)
spd_sel<1> = 0 (110MHz)
J0103
J0104
1-2
1-2
Out
Out
spd_sel<0> = 1 (125MHz)
spd_sel<1> = 1 (125MHz)
* Default setting for the 110MHz CPU

Jumpers J0105 and J0106 set the divide control bits used by the microSPARC II. Set the 110MHz microSPARC II to divide by five to obtain an SBus speed of 22.00MHz.

JUMPER PINS SETTING DESCRIPTION
J0105
J0106
1-2
1-2
In
In
div_ctl <0> = 0 /2
div_ctl <1> = 0 /2
J0105
J0106
1-2
1-2
Out
In
div_ctl <0> = 1 /3
div_ctl <1> = 0 /3
J0105
J0106
1-2
1-2
In
Out
div_ctl <0> = 0 /4
div_ctl <1> = 1 /4
J0105
J0106
1-2
1-2
Out*
Out*
div_ctl <0> = 1 /5
div_ctl <1> = 1 /5
* Default setting for the 110MHz CPU

JUMPER PINS SETTING DESCRIPTION
J0100 1-2 Out Pin-1=Gnd / Pin-2=POK
J1101 1-2
1-2
Out
In
1= normal (default)
0= -4.5db
J1102 1-2
1-2
Out
In
1=100 Ohm (default)
0=150 Ohm
J1005 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point tpe<0>
Test point tpe<1>
Test point tpe<2>
Test point tpe<3>
J1602
J1603
J1602
J1603
1-2
1-2
2-3
2-3
In
In
In
In
Select RS-423 (default)
Select RS-423 (default)
Select RS-232 (-12Vdc)
Select RS-232 (+12Vdc)
J1604 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point rxda
Test point txda
Test point rxdb
Test point txdb
J1900 N/A N/A Ground test point
J1901 N/A N/A Ground test point
J1902 N/A N/A Ground test point
J1903 N/A N/A Ground test point
J1904 N/A N/A Ground test point
J1905 N/A N/A Ground test point
J1906 N/A N/A Ground test point

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 Edition II.
  2. SS5 audio requires the Solaris 1.1.1 Version B ms2 patch.
  3. Install the highest capacity SIMM in Slot 0 under Solaris 1.x.
  4. Use the MFAR value to determine the address of a failing SIMM.
  5. The PLCC Boot PROM is not a FRU and is not field replaceable.
  6. Serial Ports A and B support synchronous operation.

Reference

SPARCstation 5 Service Manual, 801-6396.

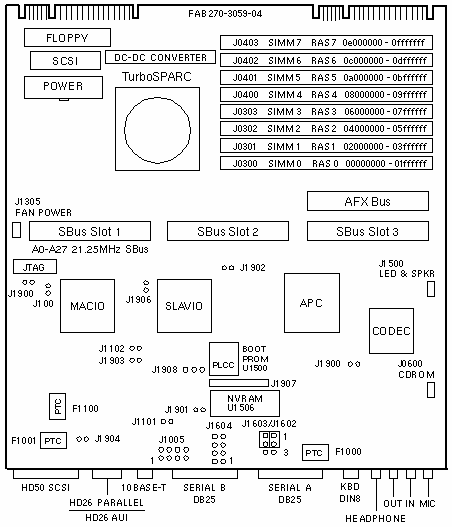

SPARCstation 5

SS5-170 / Netra i 5 / Netra j 5/170

501-3059 501-3103
170MHz 0MB FRU
TurboSPARC II
170MHz 32MB
TurboSPARC II

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J0100 1-2 Out Pin-1=Gnd / Pin-2=POK
J1101 1-2
1-2
Out
In
1= normal (default)
0= -4.5db
J1102 1-2
1-2
Out
In
1=100 Ohm (default)
0=150 Ohm
J1005 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point tpe<0>
Test point tpe<1>
Test point tpe<2>
Test point tpe<3>
J1602
J1603
J1602
J1603
1-2
1-2
2-3
2-3
In
In
In
In
Select RS-423 (default)
Select RS-423 (default)
Select RS-232 (-12Vdc)
Select RS-232 (+12Vdc)
J1604 1-2
3-4
5-6
7-8
Out
Out
Out
Out
Test point rxda
Test point txda
Test point rxdb
Test point txdb
J1900 N/A N/A Ground test point
J1901 N/A N/A Ground test point
J1902 N/A N/A Ground test point
J1903 N/A N/A Ground test point
J1904 N/A N/A Ground test point
J1905 N/A N/A Ground test point
J1906 N/A N/A Ground test point
J1908 N/A N/A ROMBO Selection

Notes

  1. The minimum OS is Solaris 1.1.1 Version B or Solaris 2.3 Edition II.
  2. SS5 audio requires the Solaris 1.1.1 Version B ms2 patch.
  3. SS5 S24 configurations require Solaris 2.3 Hardware: 8/94.
  4. Install the highest capacity SIMM in Slot 0 under Solaris 1.x.
  5. Use the MFAR value to determine the address of a failing SIMM.
  6. The PLCC Boot PROM is not a FRU and is not field replaceable.
  7. Serial Ports A and B support synchronous operation.

Reference

SPARCstation 5 Service Manual, 801-6396.
