Sun Server X3-2 / Sun Fire X4170 M3 - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #
Description Previous
Part #
n/a 150-3993 [C] 3V Coin Cell Battery, n/a
CPU Module
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7020774 [F] Pre-Greased CPU Heatsink n/a
n/a 7026168 CPU Installation/Removal Tool n/a
n/a 7026878 [F] 2.9GHz Intel 8-core Xeon E5-2690, 135W n/a
n/a 7026881 [F] 2.2GHz Intel 8-core Xeon E5-2660, 95W n/a
n/a 7026882 [F] 2.5GHz Intel 6-core Xeon E5-2640, 95W n/a
n/a 7026883 [F] 2.4GHz Intel 4-Core Xeon E5-2609, 80W n/a
NOTE: CPU Installation/Removal Tool ships with each CPU FRU
Cables
Option # Manufacturing
Part #
Description Previous
Part #
X2130A-1M-N 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m, n/a
X2130A-3M-N 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m, n/a
X2130A-5M-N 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m, n/a
n/a 7019614 [F] Sun Fire X4170 M3 Cable Kit n/a
  • 530-4537
  • Disk Drive Flex Cable
n/a
  • 7014918
  • Dual Backplane Power Cable
n/a
  • 7014919
  • Single Backplane Power Cable
n/a
  • 7019726
  • Interlock Switch Cable
n/a
  • 7020903
  • Disk Data Cable, SFF-8087 to SFF-8643, 620mm
n/a
  • 7027302
  • Front Indicator Module Cable
n/a
  • 7041996
  • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
n/a
Communication
Option # Manufacturing
Part #
Description Previous
Part #
X4242A 375-3696 [C] Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter, n/a
Disk Backplane
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7039833 8-Slot 2.5" Disk Cage Assembly n/a
  • 350-1692
  • Disk Cage Cover
n/a
  • 350-1693
  • Disk Cage
n/a
  • 530-4537
  • Disk Drive Flex Cable
n/a
  • 7014918
  • Dual Backplane Power Cable
n/a
  • 7027302
  • Front Indicator Module Cable
n/a
  • 4-Slot 2.5" Disk Backplane Assembly
n/a
    • 7014619
    • 2.5" Lightpipe Assembly
n/a
    • 4-Slot 3.5" Disk Backplane
n/a
  • 7039841 [F]
  • 2.5" Disk Cage Front Indicator Module
n/a
  • 7045703
  • Disk Cage
350-1693
  • 7047794
  • Disk Cage
7045703
  • 7051152
  • Disk Cage
7047794
n/a 7039834 4-Slot 2.5" Disk Cage Assembly n/a
  • 350-1826
  • Disk Cage
n/a
  • 350-1827
  • Disk Cage Cover
n/a
  • 530-4537
  • Disk Drive Flex Cable
n/a
  • 7014919
  • Single Backplane Power Cable
n/a
  • 7027302
  • Front Indicator Module Cable
n/a
  • 4-Slot 2.5" Disk Backplane Assembly
n/a
    • 7014619
    • 2.5" Lightpipe Assembly
n/a
    • 4-Slot 3.5" Disk Backplane
n/a
  • 7039841 [F]
  • 2.5" Disk Cage Front Indicator Module
n/a
n/a 7043563 4-Slot 3.5" Disk Cage Assembly n/a
  • 530-4537
  • Disk Drive Flex Cable
n/a
  • 7014919
  • Single Backplane Power Cable
n/a
  • 7027302
  • Front Indicator Module Cable
n/a
  • 4-Slot 3.5" Disk Backplane Assembly
n/a
    • 7014384
    • 3.5" Lightpipe Assembly
n/a
    • 4-Slot 3.5" Disk Backplane
n/a
  • 3.5" Disk Cage Front Indicator Module
n/a
Disks
Option # Manufacturing
Part #
Description Previous
Part #
7101423 7017183 [C] 100GB Solid State SATA Drive Assembly n/a
  • 100GB Intel SSDSA2BZ100G3 Solid State Drive
n/a
  • Marlin 2.5" Bracket,
n/a
7101469 7017184 [C] 300GB Solid State Drive SATA Assembly n/a
  • 300GB Intel SSDSA2BZ100G3 Solid State Drive
n/a
  • Marlin 2.5" Bracket,
n/a
7102760 7010036 [C] 3TB - 7200 RPM SAS Disk Assembly with 1 bracket and 2 of the following disks: n/a
  • Seagate ST33000650SS [ST33000SSSSUN3.0T] (3TB - 7200 RPM - SAS Disk)
n/a
  • Coral 3.5" Disk Drive Bracket,
n/a
XRA-SS2CF-600G10K2 542-0287 [C] 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
  • Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)
n/a
  • Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)
n/a
  • Marlin 2.5" Bracket,
n/a
XRB-SS2CF-300G10K2 542-0388 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)
n/a
  • Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)
n/a
  • Marlin 2.5" Bracket,
n/a
XRA-SS1CR600G15K-N [S] 542-0166 [C] 600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:, n/a
  • Seagate ST3600057SS [ST360057SSUN600G]
    (600GB - 15000 RPM - SAS Disk),
n/a
  • Coral 3.5" Disk Drive Bracket,
n/a
Ethernet
Option # Manufacturing
Part #
Description Previous
Part #
7100477 7048474 [C] Sun Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP 7014741 [C]
7100481 7014747 [C] Sun Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
7100488 7014776 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
SG-XPCIEFCOE2-Q-SR 375-3681 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR, n/a
SG-XPCIEFCOE2-Q-TA 375-3682 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach, n/a
X1109A-Z 375-3617 [C] Dual 10-Gigabit Ethernet SFP+ LP, n/a
X2129A-N 530-4449 [C] 10Gbps Short Wave Pluggable Transceiver (SFP+), n/a
X5562A-Z 135-1205 [C] 10Gbps Long Wave Pluggable Transceiver (SFP+) n/a
Fan
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7013526 [C] Dual Counter Rotating Fan Module n/a
  • 371-4787
  • 40×56mm Dual Counter Rotating Fan
n/a
Fibre Channel
Option # Manufacturing
Part #
Description Previous
Part #
SG-XPCIE2FC-EM8-N 371-4306 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
SG-XPCIE2FC-QF8-N 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, n/a
I/O
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7039838 [C] 1-Slot PCI Express Riser Assembly n/a
  • 1-Slot PCI Express Riser
n/a
  • 7016035
  • Mounting Bracket
n/a
n/a 7039839 [C] 2-Slot PCI Express Riser Assembly n/a
  • 541-4684
  • Mounting Bracket
n/a
  • 2-Slot PCI Express Riser
n/a
n/a 7048707 [C] 2-Slot PCI Express Riser Assembly 7039839 [C]
  • 541-4684
  • Mounting Bracket
n/a
  • 2-Slot PCI Express Riser
n/a
n/a 7048710 [C] 1-Slot PCI Express Riser Assembly 7039838 [C]
  • 7016035
  • Mounting Bracket
n/a
  • 1-Slot PCI Express Riser
n/a
Memory
Option # Manufacturing
Part #
Description Previous
Part #
7100790 7020486 [C] 8GB DDR3-1600 DIMM, 1.35V n/a
7100792 7038750 [C] 32GB DDR3-1066/DDR3-1333 DIMM, 1.35V n/a
7100794 7018701 [C] 16GB DDR3-1600 DIMM, 1.35V n/a
n/a 7038488 [C] 4GB USB 2.0 Oracle System Assistant (OSA) Flash Drive n/a
Power
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7038476 [C] A256 600 Watt AC Input Power Supply n/a
n/a 7047410 [C] A256 600 Watt AC Input Power Supply 7038476 [C]
Rack
Option # Manufacturing
Part #
Description Previous
Part #
n/a 350-1287 [C] 1U/2U Cable Management Arm, n/a
n/a 350-1719 [C] 1U/2U Snap-In Slide Rail Rackmount Kit n/a
Removable Media
Option # Manufacturing
Part #
Description Previous
Part #
n/a 541-4688 [C] DVD Assembly n/a
  • 8x SATA DVD-Writer/24x CD-Writer, L
n/a
  • 7020884
  • DVD Mounting Tray
n/a
n/a 7014928 DVD Data/Power Cable n/a
SCSI
Option # Manufacturing
Part #
Description Previous
Part #
SGX-SAS6-EXT-Z 375-3641 [C] PCI Express 8-Port 6Gbps SAS HBA (LSI), n/a
SGX-SAS6-INT-Z 375-3640 [C] 8-Port 6Gbps SAS-2 HBA (LSI), n/a
SGX-SAS6-R-INT-Z 371-4982 [C] 6Gigabit SAS RAID PCI Battery Module, BBU08, n/a
375-3701 [C] 6Gigabit SAS RAID PCI Express HBA, B4 ASIC, n/a
System Board
Option # Manufacturing
Part #
Description Previous
Part #
n/a 7039829 [F] System Board Assembly n/a
  • 350-1832
  • System Board Tray
n/a
  • 7019726
  • Interlock Switch Cable
n/a
  • System Board
n/a
    • 3V Coin Cell Battery,
n/a
n/a 7048712 [F] System Board Assembly 7039829 [F]
  • 350-1832
  • System Board Tray
n/a
  • 7019726
  • Interlock Switch Cable
n/a
  • System Board
n/a
    • 3V Coin Cell Battery,
n/a
NOTE: CPU Installation/Removal Tool ships with each System Board FRU

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

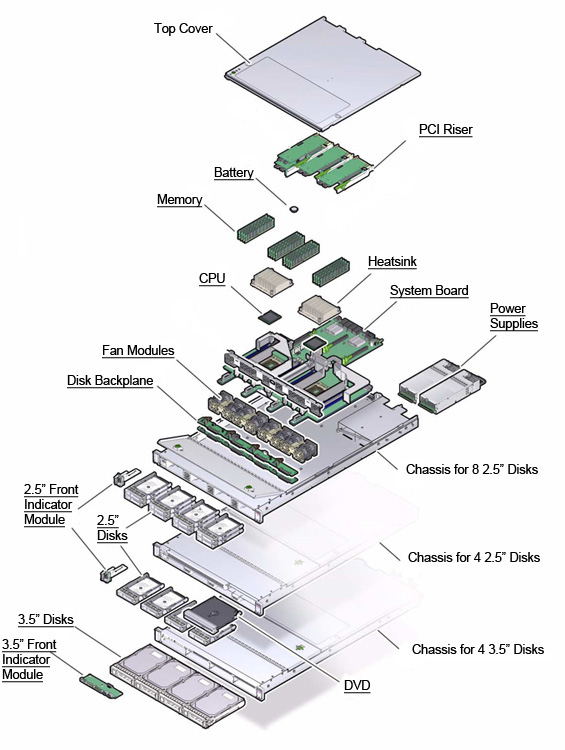

Sun Server X3-2 / Sun Fire X4170 M3 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 240-4674 PCI Express Filler Panel,
- 350-1288 DIMM Slot Filler,
- 541-2629 2.5" Disk Drive Filler Panel,
-
  • 330-4577
  • Disk Bezel Filler,
NS 541-3066 3.5" Disk Filler Panel
NS 541-4595 X4170 M3 Base Chassis Assembly
NS
  • 501-4446
  • Chassis Assembly
NS
    • 7014540
    • Chassis Subassembly
NS
      • 350-1682
      • Rear Cover
NS
        • 150-4065
        • Interlock Switch Magnet,
NS 7051125 2 X4170 M3 Base Chassis Assembly
NS
  • 7051124 1
  • Chassis Assembly
NS
    • 7014540
    • Chassis Subassembly
NS
      • 350-1682
      • Rear Cover
NS
        • 150-4065
        • Interlock Switch Magnet,
1 7051124 supercedes 540-4446.
2 7051125 supercedes 541-4595.
