Options 7100790 / 7100792 / 7100794

7020486 7018701 7038750

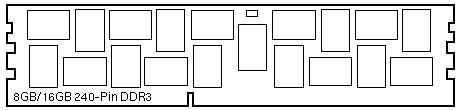

DDR3-1600/PC3L-12800
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
8GB Registered DIMM
8GB XOption 7100790
DDR3-1600/PC3L-12800
2-Rank/2Gbit SDRAM
1.35V VDD/VDDQ
16GB Registered DIMM
16GB XOption 7100794
DDR3-1066/PC3L-8500
DDR3-1333/PC3L-10600
4-Rank/4Gbit SDRAM
1.35V VDD/VDDQ
32GB Registered DIMM
32GB XOption 7100792



Sun Blade X6270 M3 Memory Installation Notes

  1. Install memory filler panel 350-1288 in all unused slots.
  2. Install DIMMs in the blue slots first.
  3. Install DIMMs in the white slots second.
  4. Install DIMMs in the black slots third.
  5. Each CPU supports one, two, three, or four dimms per socket color.
  6. CPU0 and CPU1 require identical memory configurations.
  7. Install the highest capacity DIMMs in the blue sockets, then white, then black.
  8. Refer to the service manual for additional memory configuration information.

References

  1. Sun Fire X4170 M3 Server Documentation.
  2. Sun Fire X4270 M3 Server Documentation.
  3. Sun Blade X6270 M3 Server Module Information Library.
