Sun Netra 6000 Modular System - System Breakdown

Sun Netra 6000 Modular System Home Page
Service Views
Front
Rear
Components
Full Components List
Backplane/Centerplane
Cables
Ethernet
Fan
Fibre Channel
Power
SCSI
System Service Processor
System Breakdown
Exploded View

Exploded View

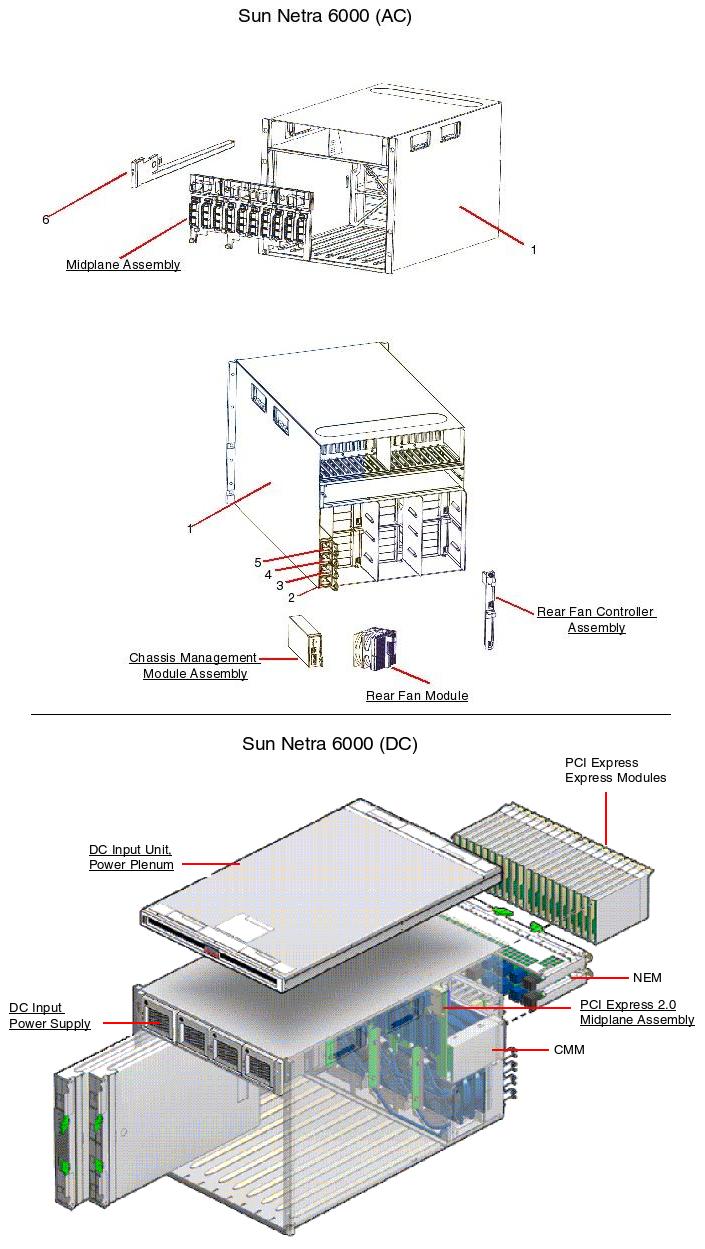

Sun Netra 6000 Modular System Exploded View
                    Backplane/Centerplane Chassis Management Module Assembly Rear Fan Module Rear Fan Controller Assembly
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 594-6892 N6000-DC M2 System Assembly
  • 371-4964 [F]
  • DC Input Unit, Power Plenum,
NS
    • 263-4502
    • Netra 6000 DC Nameplate
    • 511-1550
    • LED Board
-
  • 530-4493
  • Power Supply Adapter Signal Cable
-
  • 541-4686
  • DC Chassis Assembly
-
    • 371-4963
    • DC Chassis Subassembly
-
      • 371-1448
      • Front Indicator Module
-
        • 501-7378
        • LED Board Assembly, L
NS
    • 330-4342
    • Midplane Air Baffle,
1 594-6438 N6000-AC System Assembly, L
1
  • 541-4254
  • Chassis Assembly, L
-
    • 263-4228
    • Netra 6000 Nameplate,
-
    • 350-1689 8
    • Chassis Subassembly
-
    • 371-1448
    • Front Indicator Module
-
      • 501-7378
      • LED Board Assembly, L
2
    • 371-1449
    • AC1/PS0-AC0 Internal Power Cord, 802mm,
3
    • 371-1610
    • AC2/PS0-AC1 Internal Power Cord, 665mm,
4
    • 371-1611
    • AC3/PS1-AC0 Internal Power Cord, 584mm,
5
    • 371-1612
    • AC4/PS1-AC1 Internal Power Cord, 498mm,
NS
    • 330-4342
    • Midplane Air Baffle,
NS
    • n/a
    • AC Input Line Filter, Schurter C20F
1 594-6893 N6000-AC M2 System Assembly
1
  • 541-4687
  • Chassis Assembly
-
    • 263-4228
    • Netra 6000 Nameplate,
-
    • 371-1448
    • Front Indicator Module
-
      • 501-7378
      • LED Board Assembly, L
2
    • 371-1449
    • AC1/PS0-AC0 Internal Power Cord, 802mm,
3
    • 371-1610
    • AC2/PS0-AC1 Internal Power Cord, 665mm,
4
    • 371-1611
    • AC3/PS1-AC0 Internal Power Cord, 584mm,
5
    • 371-1612
    • AC4/PS1-AC1 Internal Power Cord, 498mm,
NS
    • 330-4342
    • Midplane Air Baffle,
NS
    • 371-3244
    • Chassis Subassembly,
NS
    • n/a
    • AC Input Line Filter, Schurter C20F
NS 263-4502 Netra 6000 DC Nameplate
NS 371-1737 Network Express Module (NEM) Filler Panel,
NS 371-1738 Blade Filler Panel, [X4460A] [S],
NS 371-3245 Mounting Rail Kit,
NS 371-3610 Shipping Bracket Kit
NS 541-0729 PCI Express ExpressModule Filler Panel [X4462A],
NS
  • 341-1810
  • PCI Express Filler,
NS 594-6726 [F] N6000-DC System Assembly, L
NS
  • 541-4381
  • Chassis Assembly, L
    • 371-4964 [F]
    • DC Input Unit, Power Plenum,
NS
      • 263-4502
      • Netra 6000 DC Nameplate
      • 511-1550
      • LED Board
-
    • 371-4963
    • DC Chassis Subassembly
-
      • 371-1448
      • Front Indicator Module
-
        • 501-7378
        • LED Board Assembly, L
NS
    • 330-4342
    • Midplane Air Baffle,
8 350-1689 replaced 371-3244 in the 541-4254 chassis assembly in January 2011.
