Netra[tm] CT 410

Codename: Makaha

Serial Number Location Rear, bottom left corner of the chassis

N09-410
5-Slot cPCI Logic Enclosure



Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)

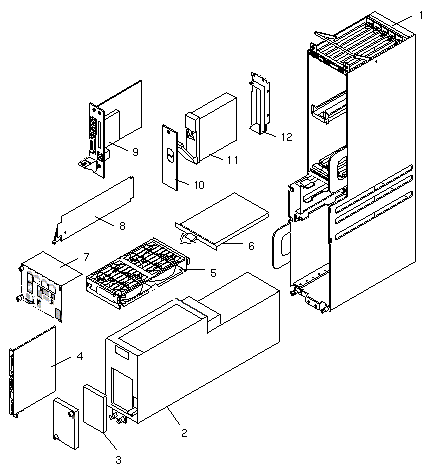

CODE PART # DESCRIPTION
1
-
-
-
-
540-5026 [F]
340-6326
501-6121
501-5625
540-4930
5-Slot cPCI Diskfull Drawer Assembly/FRU 1
3U Mounting Bar
5-Slot cPCI Backplane
Extension Board for Front CPU Termination Board
Drawer Assembly
1
-
-
-
540-5390 [F]
501-6121
501-5625
540-4930
5-Slot cPCI Diskless Drawer Assembly/FRU 2
5-Slot cPCI Backplane
Extension Board for Front CPU Termination Board
Drawer Assembly
2
2
3
300-1535 [F]
300-1543 [F]
250-1672
420 Watt DC Input Power Supply Type D148
420 Watt AC Input Power Supply Type A174
Power Supply Air Filter, Option 7221
4 501-6438 [F] Front CPU Transition Board
5 540-4931 [F] Fan Tray
6 250-1671 Air Filter, Option 7221
7 540-5011 [F] System Status Panel
8 501-6118 [F] System Control Board
9 501-6123 [F] 3U Alarm Board
10 340-6394 Disk Drive Slot Cover
11
11
11
11
540-4689 [C]
540-5455 [C]
540-5771 [C]
540-7480 [C]
36.4GB 10000 RPM NEBS Disk Drive Assembly/FRU
73.4GB 10000 RPM NEBS Disk Drive Assembly/FRU 3
73.4GB 10000 RPM NEBS Disk Drive Assembly/FRU 3
73.4GB 15000 RPM NEBS Disk Drive Assembly/FRU 4
12 540-4398 [C]
501-5623
Disk Drive Adapter Bracket 5
Disk Drive Adapter Board
NS Unknown Front Bezel

816-2480 Netra CT Server Product Overview

816-2481 Netra CT Server Installation Guide

816-2482 Netra CT Server Service Manual

816-2483 Netra CT Server System Administration Guide

817-0939 Netra CT Server Release Notes
1 Supports one Disk Drive and one 3U Alarm. Disk Drive is not included.
2 Does not support a Disk Drive or 3U Alarm.
3 Assembly 540-5455 was temporarily replaced by 540-5771 by WO_26047 .
3 Assembly 540-5455 was permanently replaced by 540-5771 by WO_25903 .
3 Assembly 540-5455 with drive 390-0108 was not tested in the CT 410/810.

4 Seagate drive 390-0325 was added to 540-7480 in February 2010 by WO_42769 .
5 Drive 390-0325 requires EMI gasket 343-0958 added to 540-6652-02 in March 2010.
Gasket 343-0958 and Installation Guide 821-1498 are included with 540-7480-02.

Boards

PART # DESCRIPTION
375-3025 [F]
375-3026 [F]
375-3114 [F]
375-3125 [F]
512MB Memory Module, Single Wide, 2"×4"
1GB Memory Module, Double Wide, 4"×5"
2GB Memory Module, Double Wide
1GB Memory Module, Single Wide
501-6403 [F]
501-6358 [F]
501-6772 [F]
375-3025 [F]
501-6967 [F]
501-6772 [F]
501-6416
501-6358 [F]
375-3026 [F]
501-6417
501-6358 [F]
375-3114 [F]
501-6529 [F]
501-6358 [F]
375-3125 [F]
1GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
0MB 650MHz CP2140 CPU FRU
512B Memory Module, Single Wide
1GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
2GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
1GB Memory Module, Double Wide
4GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
2GB Memory Module, Double Wide
2GB 650MHz CP2140 CPU
0MB 650MHz CP2140 CPU FRU
1GB Memory Module, Single Wide
501-7062 [F]
501-7032 [F]
501-7064 [F]
2GB 960MHz CP2500 CPU FRU
CP2500 Rear Transition Module
CP2500 Rear Transition Module Satellite
501-5748
501-6438 [F]
501-5618 [F]
501-6437 [F]
501-6479 [F]
501-6124 [F]
501-7034 [F]
Front CPU Termination Board, Netra CT 410
Front CPU Transition Board, Netra CT 410
Front CPU Transition Board, Netra CT 810
Rear CPU Transition Board, Netra CT 410/810
Rear CPU Transition Board w PIM/PMC, Netra CT 410/810
Rear Alarm Transition Board, Netra CT 410/810
Rear Alarm Transition Board, Netra CT 410/810
340-6399
340-6410
340-6483
340-6484
370-4003
340-7367
340-7368
Rear Power Input Filler Panel
Front Power Input Filler Panel
Rear Empty Drawer Filler Panel
Front Empty Drawer Filler Panel
cPCI Filler Panel (replaced by 340-7367 and 340-7368)
cPCI Rear Filler Panel (fails EMI - use 370-4003)
cPCI Front Filler Panel (fails EMI - use 370-4003)
