Netra[tm] X1 Server - Full Components List
| Disk |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
X7096A
(500MHz Models) |
595-6003 |
370-4419 [F] |
Seagate ST340824A (40.8GB - 7200 RPM) |
n/a |
|
370-4419 [F] |
IBM IC35L040AVER07 (40.8GB - 7200 RPM) |
n/a |
|
370-4419 [F] |
Seagate ST340016A (40.8GB - 7200 RPM) |
n/a |
X7095A [S]
(400MHz Models) |
595-5822 |
370-4365 [F] |
Seagate ST320413A (20GB - 5400 RPM) |
n/a |
| Memory
|
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| X7090A |
595-5821 |
370-4289 [F] |
128MB REG/BUFF DIMM |
n/a |
| X7091A |
595-5783 |
370-4237 [F] |
256MB SDRAM DIMM |
n/a |
X7092A
(500MHz Models Only) |
595-5784 |
370-4281 [F] |
512MB SDRAM DIMM |
n/a |
|
Miscellaneous |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
370-4285 [F] |
System Configuration Card |
n/a |
|
Power |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
370-4363 |
80W AC Input Power Supply |
n/a |
|
System Board |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| n/a |
n/a |
375-3015 |
0MB 400MHz UltraSPARC IIe |
n/a |
| n/a |
n/a |
375-3058 |
0MB 500MHz UltraSPARC IIe |
n/a |
|
X1 Server (FRU) |
| Option # |
Top Level
Part # |
Manufacturing
Part # |
Description |
Substitute
Part # |
| N19-UPE1-9S-128AX1 |
600-7295 [F] |
380-0460 |
Netra X1 FRU 500MHz CPU, 128MB RAM, 1× 40GB Disk |
n/a |
| N19-UPE1-9S-512AX1 |
600-7296 [F] |
380-0461 |
Netra X1 FRU 500MHz CPU, 512MB RAM, 1× 40GB Disk |
n/a |
| N19-UPE1-9S-102AX1 |
600-7297 [F] |
380-0462 |
Netra X1 FRU 500MHz CPU, 1G RAM, 2× 40GB Disk |
n/a |
| N19-UPE1-9S-202AX1 |
600-7298 [F] |
380-0463 |
Netra X1 FRU 500MHz CPU, 2GB RAM, 2× 40GB Disk |
n/a |
| N19-UJE1-9S-128AT1 [S] |
600-7084 [F] |
380-0425 |
Netra X1 FRU 400MHz CPU, 128MB RAM, 1× 20GB Disk |
n/a |
| N19-UJE1-9S-512AT1 [S] |
600-7085 [F] |
380-0426 |
Netra X1 FRU 400MHz CPU, 512MB RAM, 1× 20GB Disk |
n/a |
| N19-UJE1-9S-102AT1 [S] |
600-7097 [F] |
380-0427 |
Netra X1 FRU 400MHz CPU, 1GB RAM, 2× 20GB Disk |
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[S] = Supported, but can no longer be ordered
with this system
[N] = No longer supported for this system |

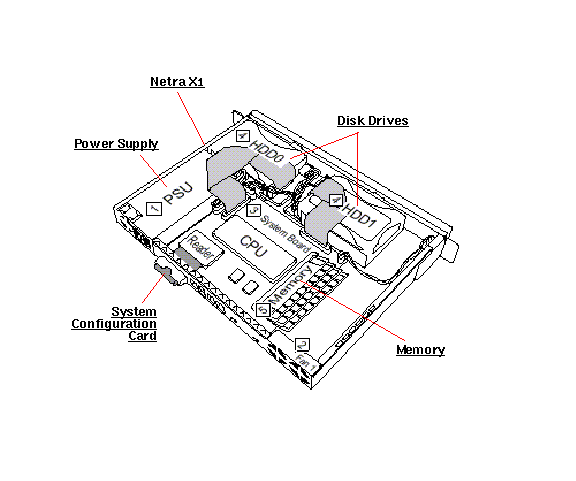

Exploded View
| Table Legend |
|
[F] = Field Replaceable Unit (FRU) |
MANUFACTURING
PART #
|
DESCRIPTION
|
| 240-1207 |
Rackmounting screws, 10-32×1/2 |
| 370-4366 |
Chassis |
| 530-2889 |
RJ45 to DB25 adapter |
| 530-2961 |
RJ45 to RJ45 patch cable for ethernet or serial connection |
| n/a |
Localized Power Cord Kit - North America/Asia, Option X311L |
| n/a |
Localized Power Cord Kit - Continental Europe, Option X312L |
| n/a |
Localized Power Cord Kit - Swiss, Option X314L |
| n/a |
Localized Power Cord Kit - U.K., Option X317L |
| n/a |
Localized Power Cord Kit - Danish, Option X383L |
| n/a |
Localized Power Cord Kit - Italian, Option X384L |
| n/a |
Localized Power Cord Kit - Australian, Option X386L |
|
