Sun Blade X3-2B / Sun Blade X6270 M3 Server Module - Service Views

Sun Blade X3-2B / Sun Blade X6270 M3 Server Module Home Page
Service Views
Front
Top
Components
Full Components List
Blade
CPU Module
Cables
Disks
Ethernet
Memory
SCSI
System Breakdown
Exploded View
Top View
(Click on underlined text to view components)
Zoom In

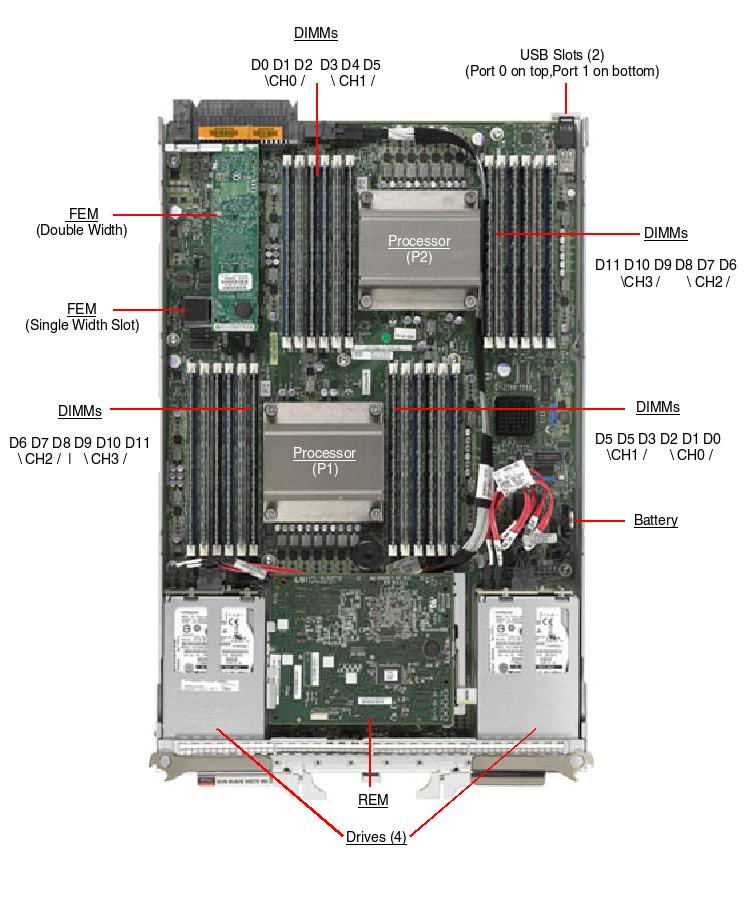

Sun Blade X3-2B / Sun Blade X6270 M3 Server Module Top Callout Double Width Fabric Expansion Module (FEM) Single Width Fabric Expansion Module (FEM) DIMMs DIMMs DIMMs Battery DIMMs Processor (P2) Processor (P1) RAID Expansion Module (RAID) Disk Drives (4)
