Oracle Database Appliance - Service Views

Oracle Database Appliance Home Page
Service Views
Front
Top
Rear
Components
Full Components List
Backplane/Centerplane
Batteries
CPU Module
Cables
Disk Backplane
Disks
Ethernet
Fan
I/O
Memory
Power
Rack
SCSI
System Controller
System Breakdown
Exploded View
Wiring Diagram
Rear View
(Click on underlined text to view components)
Zoom In

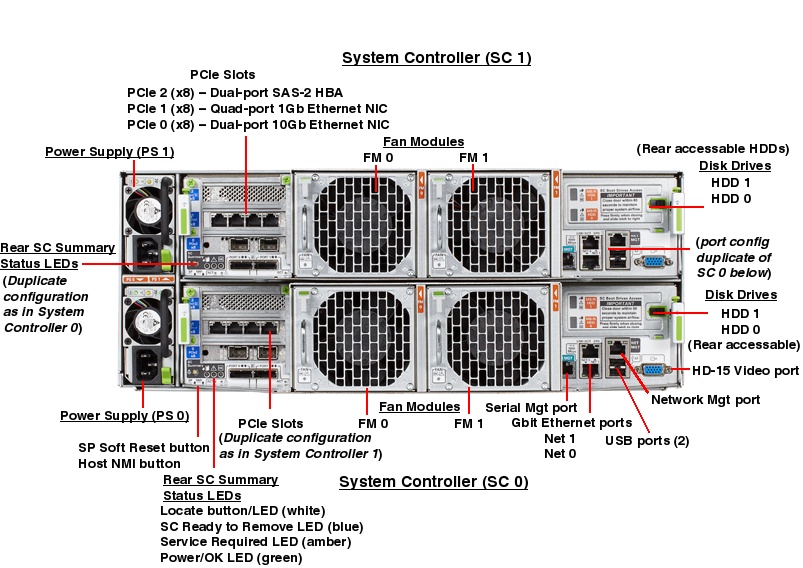

Oracle Database Appliance Rear Callout System Controller (SC 1) Power Supply (PS 1) Fan Modules Disk Drives Disk Drives Fan Modules System Controller (SC 0) System Controller Rear Panel LEDs Power Supply (PS 0) System Controller Rear Panel LEDs
