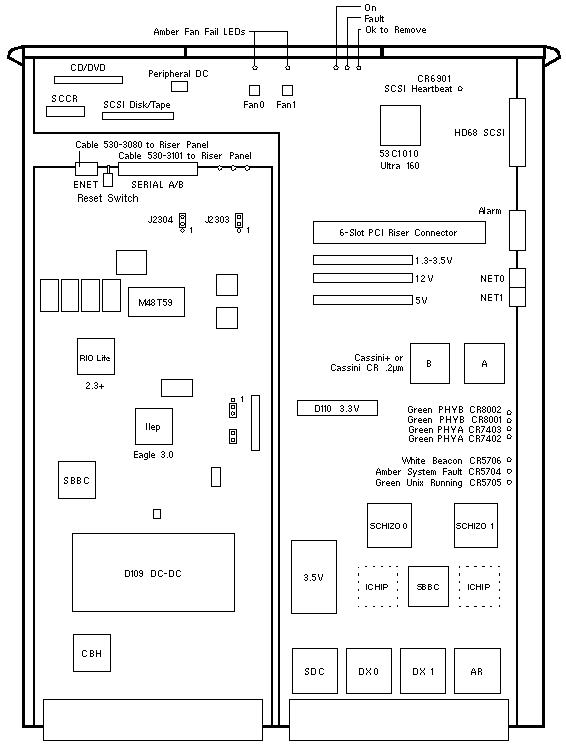

PCI I/O Board and System Controller (IB_SSC)

Sun Fire V1280 / Netra 1280

Go to Upgrade Option 2764 (Controller = 501-6779)
Go to Upgrade Option 2764 RoHS (Controller = 501-7233/501-7325)
Go to Upgrade Option 2765 (I/O Board = 501-6812)
Go to Upgrade Option 2766 (I/O Board = 501-7544)

501-6012 501-6459
I/O Board
FAB 270-6012
System Controller
FAB 270-5407
540-4967 540-5290
IB_SSC Assembly
Sun Fire V1280
FRU Assembly
Sun Fire V1280
540-5564 540-5565
IB_SSC Assembly
Netra 1280
FRU Assembly
Netra 1280

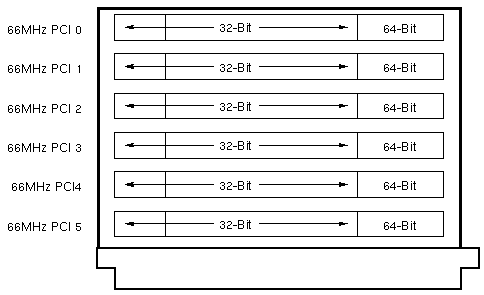

PCI Riser Assembly 540-4963 with PCI Riser 501-6013

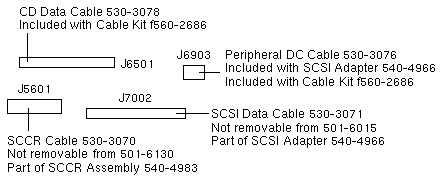

I/O Board Cable Conections
(under Media Bay cover)

PCI Device Mapping

PHYSICAL
SLOT #
DEVICE PATH I/O
CTLR #
BUS
0 /[email protected],0/[email protected],700000/<device>@1 0 B
1 /[email protected],0/[email protected],700000/<device>@2 0 B
2 /[email protected],0/[email protected],700000/<device>@1 1 B
3 /[email protected],0/[email protected],700000/<device>@2 1 B
4 /[email protected],0/[email protected],700000/<device>@3 1 B
5 /[email protected],0/[email protected],600000/<device>@1 0 A
w /[email protected],0/[email protected],600000/<device>@2 0 A
x /[email protected],0/[email protected],700000/<device>@3 0 B
y /[email protected],0/[email protected],600000/<device>@1 1 A
z /[email protected],0/[email protected],600000/<device>@2 1 A
w = onboard LSI 1010R SCSI controller
x = onboard CMD646U2 EIDE controller
y = onboard Gigaswift Ethernet controller 0 (NET0)
z = onboard Gigaswift Ethernet controller 1 (NET1)

Sun Fire V1280 Codename: Lightweight 8

Notes

  1. The minimum operating system is Solaris 8 02/02.
  2. The maximum PCI Card length is approximately 197 mm.
  3. The I/O Board and System Controller slot is labeled IB6_SSC1.
  4. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  5. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Assembly Notes

  1. Assembly 540-4967 includes Top Cover/Door 540-5216, I/O Board 501-6012, System Controller 501-6459, PCI Riser 501-6013, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, Thermal Fuse Bypass Cable 530-3253, and two 540-5222 Fans.
  2. Assembly 540-5564 includes Top Cover/Door 540-5216, I/O Board 501-6012, System Controller 501-6459, PCI Riser 501-6013, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, Thermal Fuse Cable 530-3198, and two 540-5222 Fans.

References

  1. Sun Fire V1280 Server Documentation.
  2. Sun Netra 1280 Server Documentation.



PCI I/O Board and System Controller (IB_SSC)

Upgrade Option 2764

Sun Fire V1280 / Sun Fire E2900

501-6012 501-6779
I/O Board
FAB 270-6012
System Controller
FAB 270-6631
540-6047 540-6045
IB_SSC Assembly
V1280/E2900
Option 2764
FRU Assembly
V1280/E2900

PCI Riser Assembly 540-4963 with PCI Riser 501-6013

I/O Board Cable Conections
(under Media Bay cover)

PCI Device Mapping

PHYSICAL
SLOT #
DEVICE PATH I/O
CTLR #
BUS
0 /[email protected],0/[email protected],700000/<device>@1 0 B
1 /[email protected],0/[email protected],700000/<device>@2 0 B
2 /[email protected],0/[email protected],700000/<device>@1 1 B
3 /[email protected],0/[email protected],700000/<device>@2 1 B
4 /[email protected],0/[email protected],700000/<device>@3 1 B
5 /[email protected],0/[email protected],600000/<device>@1 0 A
w /[email protected],0/[email protected],600000/<device>@2 0 A
x /[email protected],0/[email protected],700000/<device>@3 0 B
y /[email protected],0/[email protected],600000/<device>@1 1 A
z /[email protected],0/[email protected],600000/<device>@2 1 A
w = onboard LSI 1010R SCSI controller
x = onboard CMD646U2 EIDE controller
y = onboard Gigaswift Ethernet controller 0 (NET0)
z = onboard Gigaswift Ethernet controller 1 (NET1)

Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2

Notes

  1. The minimum E2900 operating system is Solaris 8 02/04 or Solaris 9 04/04.
  2. The maximum PCI Card length is approximately 197 mm.
  3. Version 2 of the IB_SSC includes advanced features, including enhanced error logging. These features require firmware 5.17.0.
  4. The I/O Board and System Controller slot is labeled IB6_SSC1.
  5. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  6. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Assembly Notes

  1. Assembly 540-6045 includes Top Cover/Door 540-6111, I/O Board 501-6012, System Controller 501-6779, PCI Riser 501-6013, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, Thermal Fuse Bypass Cable 530-3253, and two 540-5222 Fans.
  2. Assembly 540-6047 includes Top Cover/Door 540-6111, I/O Board 501-6012, System Controller 501-6779, PCI Riser 501-6013, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, Thermal Fuse Bypass Cable 530-3253, and two 540-5222 Fans.

References

  1. Sun Fire V1280 Server Documentation.
  2. Sun Netra 1280 Server Documentation.
  3. Sun Fire E2900 Server Documentation.

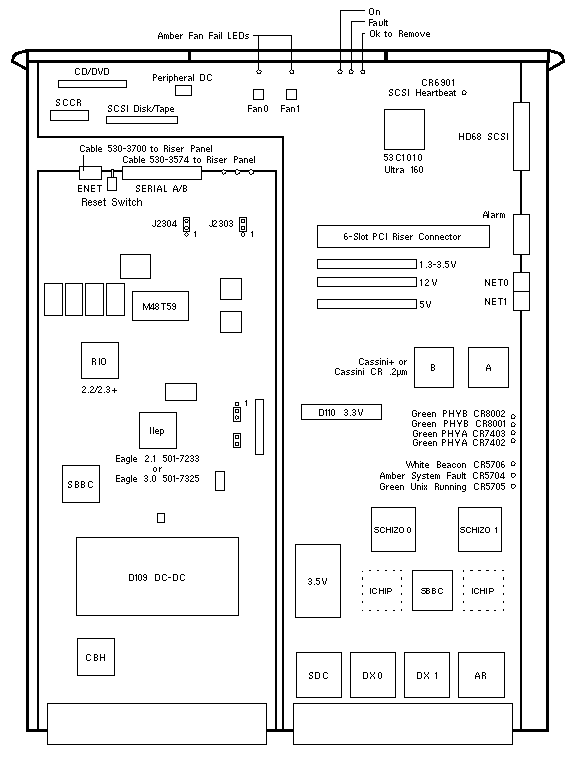

PCI I/O Board and System Controller (IB_SSC)

Upgrade Option 2764A-Z

Sun Fire V1280 / Netra 1280 / Sun Fire E2900

501-7326 501-7233 540-6882 541-1513
I/O Board
FAB 270-6012
L
System Controller
FAB 270-5407
L
IB_SSC Assembly
V1280 FRU
L
IB_SSC Assembly
Netra 1280 FRU
L
501-7326 501-7325 541-1388 541-2663 541-2664
I/O Board
FAB 270-6012
L
System Controller
FAB 270-6631
L
IB_SSC Assembly
V1280/E2900 FRU
X2764A-Z
L
IB_SSC Assembly
Netra 1280 FRU
L
IB_SSC Assembly
E2900/V1280 FRU
L

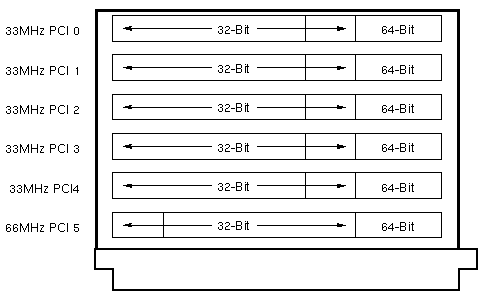

PCI Riser Assembly 540-6883 with PCI Riser 501-7230 (FAB 270-6013)

I/O Board Cable Conections
(under Media Bay cover)

PCI Device Mapping

PHYSICAL
SLOT #
DEVICE PATH I/O
CTLR #
BUS
0 /[email protected],0/[email protected],700000/<device>@1 0 B
1 /[email protected],0/[email protected],700000/<device>@2 0 B
2 /[email protected],0/[email protected],700000/<device>@1 1 B
3 /[email protected],0/[email protected],700000/<device>@2 1 B
4 /[email protected],0/[email protected],700000/<device>@3 1 B
5 /[email protected],0/[email protected],600000/<device>@1 0 A
w /[email protected],0/[email protected],600000/<device>@2 0 A
x /[email protected],0/[email protected],700000/<device>@3 0 B
y /[email protected],0/[email protected],600000/<device>@1 1 A
z /[email protected],0/[email protected],600000/<device>@2 1 A
w = onboard LSI 1010R SCSI controller
x = onboard CMD646U2 EIDE controller
y = onboard Gigaswift Ethernet controller 0 (NET0)
z = onboard Gigaswift Ethernet controller 1 (NET1)

Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2

Notes

  1. The minimum E2900 operating system is Solaris 8 02/04 or Solaris 9 04/04.
  2. The maximum PCI Card length is approximately 197 mm.
  3. Version 2 of the IB_SSC includes advanced features, including enhanced error logging. These features require firmware 5.17.0.
  4. The I/O Board and System Controller slot is labeled IB6_SSC1.
  5. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  6. Clutch grease changed from Reell 9236-001 to 695-018 (Krytox GPL 226) in February 2008. (WO_38608)
  7. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Assembly Notes

  1. Assembly 540-6882 includes Top Cover/Door 540-6817, I/O Board 501-7326, System Controller 501-7233, PCI Riser 501-7230, Dual Serial Cable 530-3700, Ethernet Cable 530-3574, Thermal Fuse Bypass Cable 530-3253, and two 540-6818 Fans.
  2. Assembly 541-1513 includes Top Cover/Door 540-6823, I/O Board 501-7326, System Controller 501-7233, PCI Riser 501-7230, Dual Serial Cable 530-3700, Ethernet Cable 530-3574, Thermal Fuse Bypass Cable 530-3253, and two 540-6818 Fans.
  3. Assembly 541-1388 includes Top Cover/Door 540-6817, I/O Board 501-7326, System Controller 501-7325, PCI Riser 501-7230, Dual Serial Cable 530-3700, Ethernet Cable 530-3574, Thermal Fuse Bypass Cable 530-3253, and two 540-6818 Fans.
  4. Assembly 541-2663 includes Top Cover/Door 540-6823, I/O Board 501-7326, System Controller 501-7325, PCI Riser 501-7230, Dual Serial Cable 530-3700, Ethernet Cable 530-3574, Thermal Fuse Bypass Cable 530-3253, and two 540-6818 Fans.
  5. Assembly 541-2664 includes Top Cover/Door 540-6817, I/O Board 501-7326, System Controller 501-7325, PCI Riser 501-7230, Dual Serial Cable 530-3700, Ethernet Cable 530-3574, Thermal Fuse Bypass Cable 530-3253, and two 540-6818 Fans.
  6. Assembly 541-1513 was inactivated as a FRU in February 2008. (WO_37134)
  7. Assembly 541-2664 was used as FRU F540-6882 under Deviation WO_38918.

References

  1. Sun Fire V1280 Server Documentation.
  2. Sun Netra 1280 Server Documentation.
  3. Sun Fire E2900 Server Documentation.

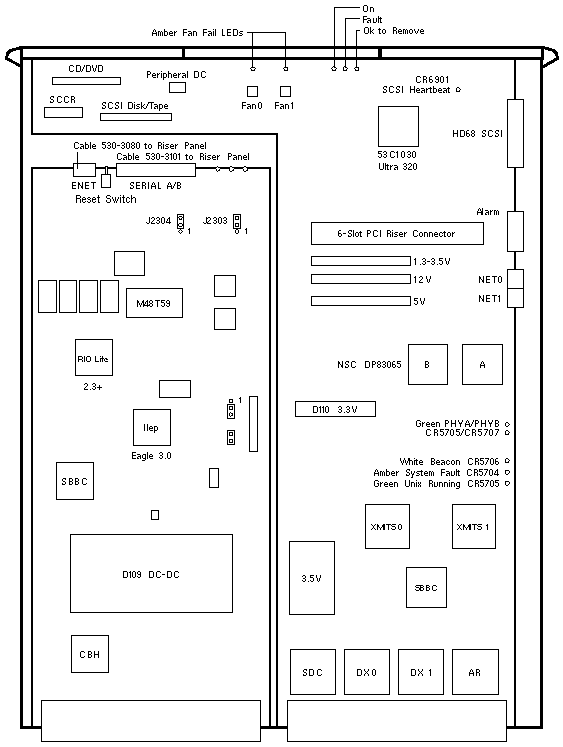

PCI+ I/O Board and System Controller (IB_SSC)

Options 2765A / 2765A-Z

Sun Fire V1280 / Sun Fire E2900

501-6812 501-6779 541-0382
I/O Board
FAB 270-6812
System Controller
Version 2
FAB 270-6631
IB_SSC Assembly/FRU
Option 2765A
501-7541 501-7325 541-1503
I/O Board
FAB 270-6812
L
System Controller
Version 2
FAB 270-6631
L
IB_SSC Assembly/FRU
Option 2765A-Z
L

PCI Riser Assembly 541-0321 with PCI+ Riser 501-6815
PCI+ Riser Assembly 541-1511, L with PCI+ Riser 501-7542, L

Pre-RoHS I/O Board Cable Conections
(under Media Bay cover)

PCI+ Device Mapping

PHYSICAL
SLOT #
DEVICE PATH XMITS BUS
0 /[email protected],0/[email protected],600000/<device>@1 1 A
1 /[email protected],0/[email protected],600000/<device>@2 1 A
2 /[email protected],0/[email protected],700000/<device>@1 1 B
3 /[email protected],0/[email protected],700000/<device>@2 1 B
4 /[email protected],0/[email protected],600000/<device>@1 0 A
5 /[email protected],0/[email protected],600000/<device>@2 0 A
u /[email protected],0/[email protected],700000/[email protected]/[email protected] 0 B
v /[email protected],0/[email protected],700000/[email protected]/[email protected] 0 B
w /[email protected],0/[email protected],700000/[email protected] 0 B
x /[email protected],0/[email protected],700000/[email protected],1 0 B
y /[email protected],0/[email protected],700000/[email protected] 0 B
z /[email protected],0/[email protected],700000/[email protected] 0 B
u = SBBC
v = DVD-R
w = LSI 1030 2× internal SCSI disks (Ultra320) + DAT
x = LSI 1030 external SCSI (Ultra320)
y = Ethernet controller ce0 (NET0)
z = Ethernet controller ce1 (NET1)

Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2

Notes

  1. The minimum E2900 operating system is Solaris 8 02/04 or Solaris 9 04/04.
  2. The minimum PCI+ operating system is Solaris 8 02/04, Solaris 9 09/05, or Solaris 10 3/05 HW1.
  3. Refer to FAB article 1001327.1 for instructions on installing Solaris 8 02/04.
  4. Refer to FAB article 1000952.1 for instructions on installing Solaris 9 09/05.
  5. The minimum Sun Fire V1280 and Sun Fire E2900 firmware is 5.19.3.
  6. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Mechanical Notes

  1. The maximum PCI Card length is approximately 197 mm.
  2. The I/O Board and System Controller slot is labeled IB6_SSC1.
  3. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  4. Clutch grease changed from Reell 9236-001 to 695-018 (Krytox GPL 226) in February 2008. (WO_38608)

Assembly Notes

  1. Assembly 541-0382 includes Top Cover/Door 540-5216, I/O Board 501-6012, System Controller 501-6779, PCI Riser 501-6815, Dual Serial Cable 530-3101, Ethernet Cable 530-3080, Thermal Fuse Cable 530-3198, and two 540-5222 Fans.
  2. Assembly 541-1503 includes Top Cover/Door 540-6817, I/O Board 501-7541, System Controller 501-7325, PCI Riser 501-7542, Dual Serial Cable 530-3574, Ethernet Cable 530-3700, Thermal Fuse Cable 530-3577, and two 540-6818 Fans.

References

  1. Sun Fire V1280 Server Documentation.
  2. Sun Netra 1280 Server Documentation.
  3. Sun Fire E2900 Server Documentation.

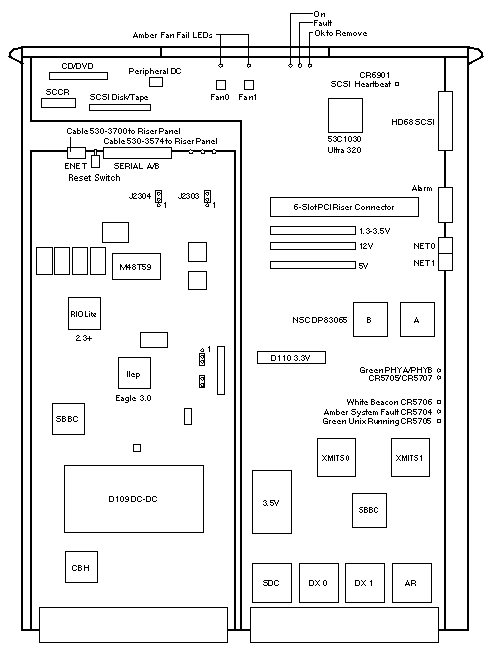

PCI-X I/O Board and System Controller (IB_SSC)

Option 2766A-Z

Sun Fire V1280 / Sun Fire E2900

501-7544 501-7325 541-1486
I/O Board
L
System Controller
L
IB_SSC Assembly/FRU
L

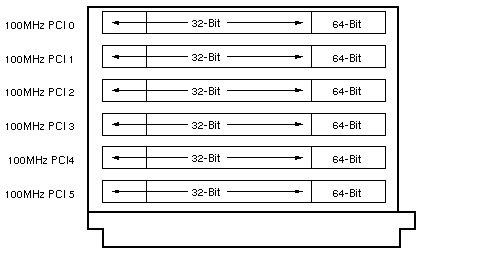

PCI-X Riser Assembly 541-1511, L with PCI-X Riser 501-7542, L

PCI-X Device Mapping

For Physical Device Mapping, see Article 1003932.1
Physical device mapping for PCI-X I/O Boards (Sun Fire 4800, E4900, 6800, E6900) and
PCI-X IB_SSC (Sun Fire v1280, E2900 and Sun Netra 1280, 1290).

Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2

Notes

  1. The minimum PCI-X operating system is Solaris 9 09/05 or Solaris 10 3/05 HW1.
  2. The minimum Sun Fire V1280 and Sun Fire E2900 firmware is 5.20.1.
  3. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Mechanical Notes

  1. The I/O Board and System Controller slot is labeled IB6_SSC1.
  2. The I/O Board and System Controller includes a toothed rack and the chassis includes clutched pinions in the front of slot IB6_SSC1.
  3. Clutch grease changed from Reell 9236-001 to 695-018 (Krytox GPL 226) in February 2008. (WO_38608)

Assembly Notes

  1. Assembly 541-1486 includes Top Cover/Door 540-6817, I/O Board 501-7544, System Controller 501-7325, PCI Riser 501-7542, Dual Serial Cable 530-3574, Ethernet Cable 530-3700, Thermal Fuse Cable 530-3577, and two 540-6818 Fans.

References

  1. Sun Fire V1280 Server Documentation.
  2. Sun Netra 1280 Server Documentation.
  3. Sun Fire E2900 Server Documentation.
