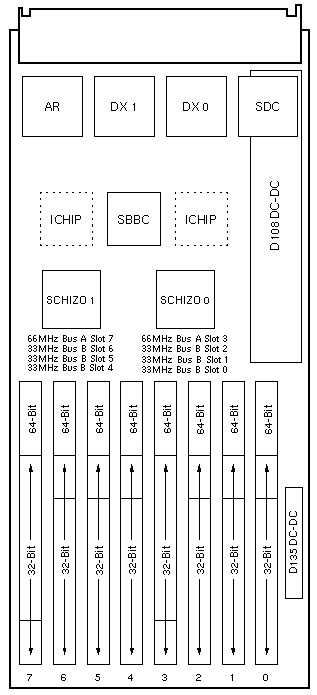

PCI I/O Board

Sun Fire 4800 / 4810 / 6800 / E4900 / E6900

Option 4050

501-4404 540-4616
PCI Assembly FRU Assembly

PCI Device Mapping

PHYSICAL SLOT # DEVICE PATH SCHIZO LEAF
7 IB9 /[email protected],0/[email protected],600000/<device>@1 1 A
IB8 /[email protected],0/[email protected],600000/<device>@1
IB7 /[email protected],0/[email protected],600000/<device>@1
IB6 /[email protected],0/[email protected],600000/<device>@1
6 IB9 /[email protected],0/[email protected],700000/<device>@3 B
IB8 /[email protected],0/[email protected],700000/<device>@3
IB7 /[email protected],0/[email protected],700000/<device>@3
IB6 /[email protected],0/[email protected],700000/<device>@3
5 IB9 /[email protected],0/[email protected],700000/<device>@2
IB8 /[email protected],0/[email protected],700000/<device>@2
IB7 /[email protected],0/[email protected],700000/<device>@2
IB6 /[email protected],0/[email protected],700000/<device>@2
4 IB9 /[email protected],0/[email protected],700000/<device>@1
IB8 /[email protected],0/[email protected],700000/<device>@1
IB7 /[email protected],0/[email protected],700000/<device>@1
IB6 /[email protected],0/[email protected],700000/<device>@1
3 IB9 /[email protected],0/[email protected],600000/<device>@1 0 A
IB8 /[email protected],0/[email protected],600000/<device>@1
IB7 /[email protected],0/[email protected],600000/<device>@1
IB6 /[email protected],0/[email protected],600000/<device>@1
2 IB9 /[email protected],0/[email protected],700000/<device>@3 B
IB8 /[email protected],0/[email protected],700000/<device>@3
IB7 /[email protected],0/[email protected],700000/<device>@3
IB6 /[email protected],0/[email protected],700000/<device>@3
1 IB9 /[email protected],0/[email protected],700000/<device>@2
IB8 /[email protected],0/[email protected],700000/<device>@2
IB7 /[email protected],0/[email protected],700000/<device>@2
IB6 /[email protected],0/[email protected],700000/<device>@2
0 IB9 /[email protected],0/[email protected],700000/<device>@1
IB8 /[email protected],0/[email protected],700000/<device>@1
IB7 /[email protected],0/[email protected],700000/<device>@1
IB6 /[email protected],0/[email protected],700000/<device>@1

Sun Fire 3800-6800 Codename: Serengeti

Notes

  1. The minimum operating system is Solaris 8 4/01.
  2. I/O Board slots are labeled IB6 to IB9.
  3. The left to right system installation sequence is IB6, IB8, IB7, and IB9.
  4. Slots 0 and 1 support short length (174.63 mm) PCI boards.
  5. Slots 0 and 1 do not support standard length (312 mm) PCI boards.
  6. Slots 2 through 7 support short and standard length PCI boards.
  7. How To article 1005873.1 provides a "ftp-only" shortcut for updating the flashprom firmware.
  8. Refer to the Install.info file of any Firmware patch for information on firmware verification and compatibility.

Filler Notes

  1. Install PCI Filler Board 540-4045 in all short empty PCI board slots.
  2. Install PCI Filler Board 540-4046 in all long empty PCI board slots.
  3. Install Filler Panel 330-2822 when servicing a PCI I/O board slot.

References

  1. PCI I/O Installation Guide, 806-2949.
  2. Powering On and Off Guide, 806-2956.
