Sun StorageTek Virtual Library Extension (VLE)

Additional Information

VLE-BASE-UNIT	VLE-BASE-CAP	XVLE-220TB-CAPUPG
One 42RU Cabinet w/2 PDUs Two Disk Shelf 24x3.5" SAS-2 24 × 2TB HDD Per Disk Shelf One Sun Fire X4470	Two Disk Shelf 24x3.5" SAS-2 24 × 2TB HDD Per Disk Shelf	VLE Capacity Upgrade Two Disk Shelf 24x3.5" SAS-2 24 × 2TB HDD Per Disk Shelf

VLE50HZ-POWER-Z	VLE60HZ-POWER-Z
Two PDU 10kVA, Single Phase, HV (INT)	Two PDU 10kVA, Single Phase, LV (NA)

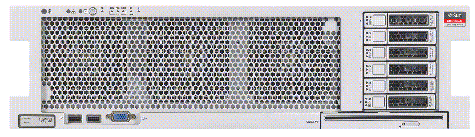

Sun Fire X4470 Front View (Parts)

Disk Shelf 24x3.5" SAS-2 Front View (Parts)

Table Legend

[F] = Field Replaceable Unit (FRU)

PART #	DESCRIPTION
594-5593 371-4226	Rack with Heavy Duty Pallet, Option XSR-1242E 42U-1200 Rack
594-6462 350-1531 None None	Rackmount Kit Option DS2X-4URK-19U Rackmount Kit Left Mounting Rail, FAJB5014010 + FAJB1010010 Right Mounting Rail, FAJB5015010 + FAJB1008010
180-2379 [F]	13A/250V 90� IEC 320 Sheet E to IEC 320 C13 Cord, 1M
530-3883 [F]	4X Mini SAS Cable, SFF-8088 to SFF-8088, 2M, Option TA25X0-2.0M-SAS-Z
540-7758 540-7759 540-7760	1U Filler Panel 2U Filler Panel 4U Filler Panel
594-5602 371-4198 [F]	Option XSR-10K-L630 10KVA Single-Phase PDU with two 30A/250V 2-Pole/3-Wire NEMA L6-30P Plugs 1
594-5604 371-4200 [F]	Option XSR-10K-IEC309 10KVA Single-Phase PDU with two Blue 32A/240V Splashproof 2-Pole/3-Wire IEC 60309 Plugs 1

1 Includes six single-phase 20A 200-240V output groups with one IEC 320 Sheet J and seven IEC 320 Sheet F connectors per group.

Sun Fire X4470

PART #	DESCRIPTION
300-2228 [F]	A239A 2000W AC Input Power Supply
330-4839	Memory Slot Filler
341-2610	PCI Filler Panel
371-4791 [F]	Tool-less Slide Rail Rack Mount Kit, Option X2365A
371-4812 [F]	Cable Management Arm
371-4860 [F] 310-0228 [F]	2.26GHz 8-Core Xeon X7560 CPU Module CPU Heatsink
375-3481 [F]	PCI Express Quad Gigabit Ethernet UTP, Option X4446A-Z-N
375-3609 [F]	8-Port 6Gbps SAS-2 RAID HBA
511-1246 [F]	6-Slot Disk Backplane
541-2629	Disk Drive Filler Panel
541-3540 [F] 150-3993 [F] 341-5567 511-1240 511-1245 530-3510 530-4348	System Board Assembly Panasonic BR2032 Battery System Board Tray System Board Rear I/O Board Magnetic Interlock Switch System Board to Rear I/O Board Signal Cable
541-3535 [F] 511-1243 530-4349 [F]	Fan Cage Assembly Fan Board with USB and VGA Flex Circuit
541-3539 [F]	92mm Fan Module
541-3541 [F] 371-4446 511-1242	Power Distribution Board Assembly Bus Bar Power Distribution Board
541-3819 [F] 341-5773 511-1241	Memory Riser, Option X2350A Memory Riser Tray Memory Riser Board
541-4272 [F] 341-5817 341-6168 390-0443	DVD Assembly/FRU Mounting Tray Bezel. RoHS:Y 8x SATA DVD-Writer/24x CD-Writer
542-0371 [F] 390-0468 541-2123	500GB 7200 RPM SATA Disk Drive Assy/FRU Seagate ST9500530NS [ST95000NSSUN500G] (500GB - 7200 RPM - SATA Disk) Marlin Bracket 15mm
542-0246 [F] 371-4776	16GB Memory, Option X8505A 8GB DDR3-1066 DIMM
560-2951 [F] 530-4118 530-4287 530-4288 530-4289 530-4290 530-4291 530-4352	Cable Kit 4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm Fan Board to System Board Signal Cable Fan Board to System Board Power Cable System Board to PDB Cable System Board to Disk Backplane Signal Cable System Board to Disk Backplane Power Cable SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm

Disk Shelf 24x3.5" SAS-2

PART #	DESCRIPTION
540-7980 [F] 330-5203 330-5204 375-3659	Disk Shelf Chassis Assembly/FRU Front Left End Cap Front Right End Cap Centerplane Assembly
300-2276 [F]	764W AC Input Power Supply and Fan Assembly
542-0194 [F]	6Gbps SAS-2 Interface Module (SIM)
542-0274 [F] 390-0476 350-1508	2TB 7200 RPM SAS Disk Drive Assembly/FRU Seagate ST32000444SS [ST32000SSSUN2.0T] (2TB - 7200 RPM - SAS Disk) Stingray Mounting Bracket
541-4242	Disk Shelf HDD Filler Panel
350-1574	Disk Shelf SSD Filler Panel
530-3886	4X Mini SAS Cable, SFF-8088 to SFF-8088, 0.5ML
594-6462 350-1531 None None	Rackmount Kit Option DS2X-4URK-19U Rackmount Kit Left Mounting Rail, FAJB5014010 + FAJB1010010 Right Mounting Rail, FAJB5015010 + FAJB1008010
