Sun Ultra 40 M2 Workstation - System Breakdown
Sun Ultra 40 M2 Workstation, RoHS:Y Home Page
Service Views
Front
Left Open
Rear
Components
Full Components List
Batteries
CPU Module
Cables
Disk Backplane
Disks
Ethernet
Fan
Graphics
Memory
Power
Removable Media
SCSI
System Board
System Breakdown
Exploded View

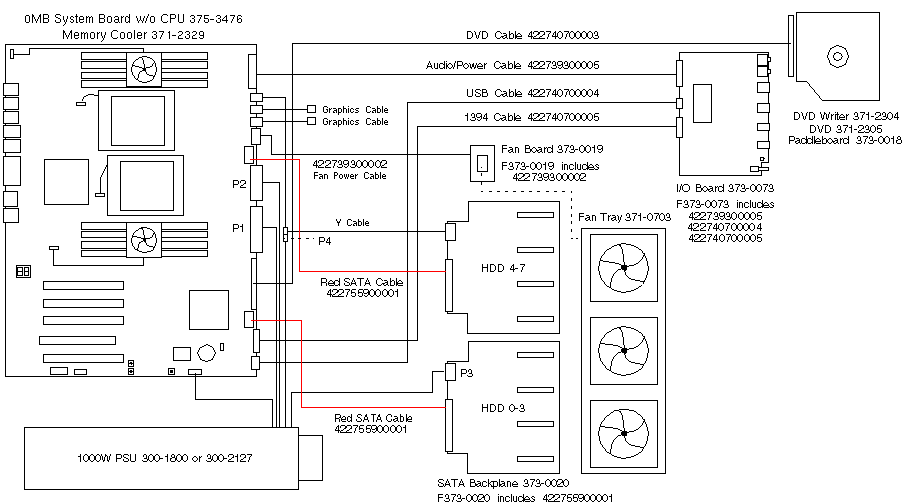

Wiring Diagram

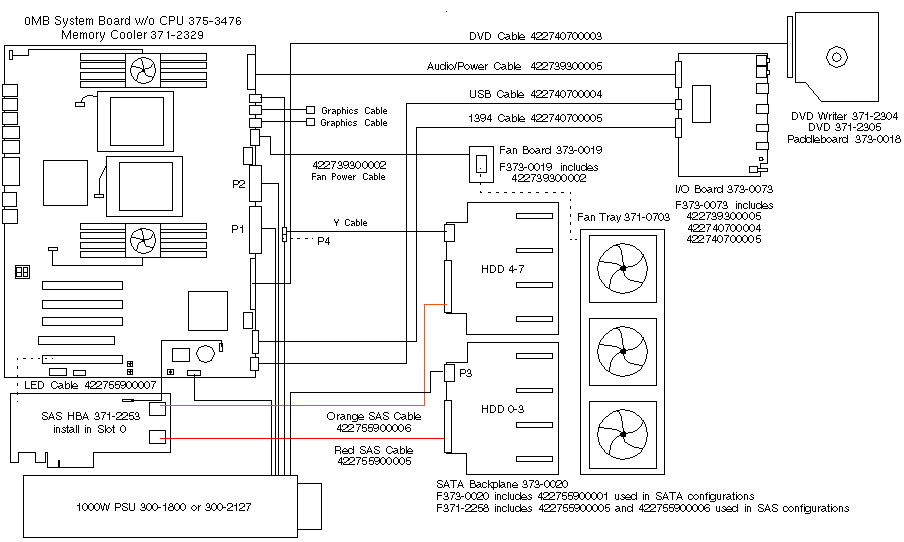

Wiring Diagram
