SPARC T3-2 Server - Service Views

SPARC T3-2 Home Page
Service Views
Front
Top
Rear
Components
Full Components List
Batteries
Cables
Disk Backplane
Disks
Ethernet
Fan
Fibre Channel
Memory
Power
Rack
Removable Media
SCSI
System Board
System Service Processor
System Breakdown
Exploded View
Wiring Diagram
Top View
(Click on underlined text to view components)
Zoom In

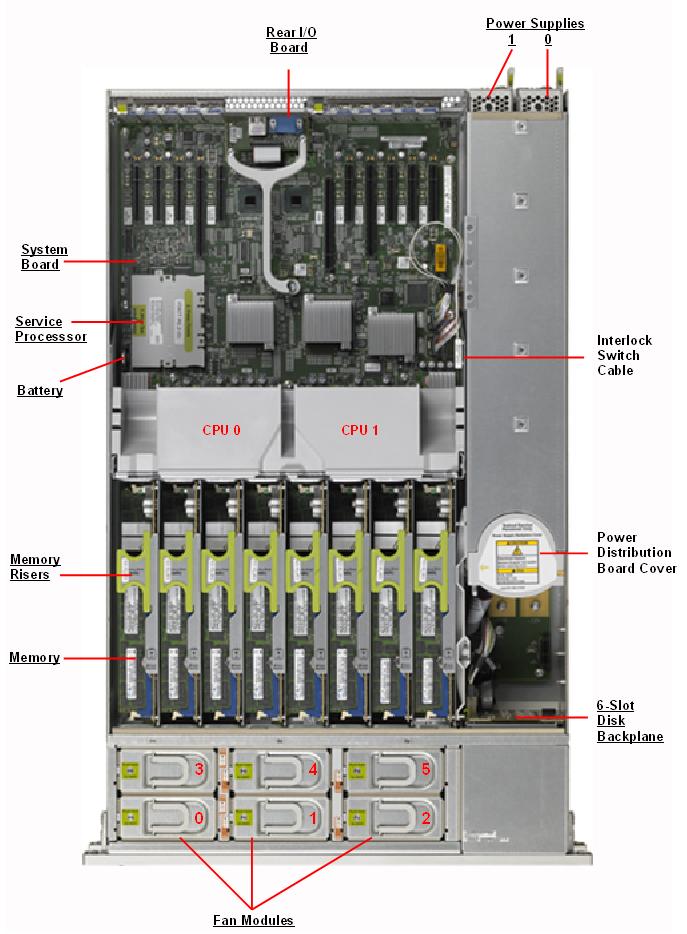

SPARC T3-2 Top Callout Rear I/O Board Power Supplies System Board Service Processor Battery Memory Risers Memory Fan Modules 6-Slot Disk Backplane
