Netra[tm] st A1000 Storage Array
| Serial Number Location |
Back, below the power switch button |
| ARY144A-36GAC
1
|
ARY144A-36GDC
1
|
AC Input Power - NEBS Level 3
4 × 9.1GB 10000 RPM Disks
Shipped w Controller 375-0007
5
|
DC Input Power - NEBS Level 3
4 × 9.1GB 10000 RPM Disks
Shipped w Controller 375-0007
5
|
| ARY151A-72GAC
2
|
ARY151A-72GDC
2
|
AC Input Power - NEBS Level 2
4 × 18.2GB 10000 RPM Disks
Shipped w Controller 375-0007
5
|
DC Input Power - NEBS Level 2
4 × 18.2GB 10000 RPM Disks
Shipped w Controller 375-0007
5
|
| ARY171A-145GAC
3
|
ARY171A-145GDC
3
|
AC Input Power - NEBS Level 2
4 × 36.4GB 10000 RPM Disks 540-4689
Shipped w Controller 375-0007
5
|
DC Input Power - NEBS Level 2
4 × 36.4GB 10000 RPM Disks 540-4689
Shipped w Controller 375-0007
5
|
| ARY171B-145GAC
4
|
ARY171B-145GDC
4
|
AC Input Power - NEBS Level 3
4 × 36.4GB 10000 RPM Disks 540-5451
Shipped w Controller 375-0134
6
|
DC Input Power - NEBS Level 3
4 × 36.4GB 10000 RPM Disks 540-5451
Shipped w Controller 375-0134
6
|
- The 18GB st A1000 was reclassified NEBS Level 2 in October 2001.
18GB drive assembly 540-4401 became NEBS Level 2 when drive 390-0085
was added.
- The 36GB st A1000 was reclassified NEBS Level 2 in October 2001.
36GB drive assembly 540-4689 became NEBS Level 2 when drive 390-0069
was added.
- The NEBS Level 3 36GB st A1000 requires drive assembly 540-5160 or 540-5451.
- Controllers 375-0007, 375-0015, and 375-0016 are compatible with
RM 6.0, 6.1, and 6.1.1.
Firmware is not compatible with RM 6.22.
- Controllers 375-0134, 375-0135, and 375-0136 are compatible with
RM 6.22.
Firmware is not compatible with RM 6.0, 6.1, and 6.1.1.

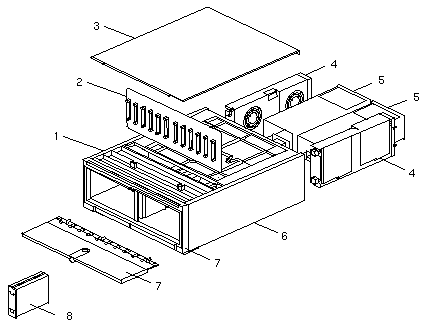

| Table Legend |
|
[F] = Field Replaceable Unit (FRU) |
| CODE |
PART # |
DESCRIPTION |
1
1
1 |
540-3989
540-3995
540-4001 |
12-Drive AC Chassis Assembly
12-Drive DC Chassis Assembly
Empty 12-Drive Chassis Assembly |
| 2 |
501-4440 [F] |
12-Slot SCSI Disk Backplane |
| 3 |
340-5432 |
Top Cover |
| 4 |
540-3999 [F] |
Fan Tray |
5
5
5 |
300-1340 [F]
300-1428 [F]
300-1498 [F] |
360 Watt AC Input Power Supply
360 Watt DC Input Power Supply, Phoenix Connector
360 Watt DC Input Power Supply, Wago Connector |
| 6 |
340-5433 |
Bottom Cover |
| 7 |
540-3990 |
Front Door Assembly |
| 8 |
370-3760
540-3881 [F]
540-4401 [F]
540-4178 [F]
540-4689 [F]
540-4520 [F]
540-5160 [F]
540-5451 [F] |
Empty 1.0" Disk Drive Slot Filler
9.1GB 10000 RPM Disk Drive FRU, NEBS Level 3
18.2GB 10000 RPM Disk Drive FRU, NEBS Level 2/3
18.2GB 10000 RPM Disk Drive FRU, NEBS Level 2
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 2/3
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 2
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 3
36.4GB 10000 RPM Disk Drive FRU, NEBS Level 3 |
| NS |
150-1890 [F] |
Differential Terminator, HD68 |
| NS |
240-2690 |
A1000/D1000 Key |
| NS |
250-1454 |
Air Filter |
| NS |
375-0007
375-0015 [F]
375-0016 [F]
375-0134
375-0135 [F]
375-0136 [F]
370-3417 [F] |
Raid Controller, 8MB MPU + 16MB RPA w/ Battery
Raid Controller FRU, 16MB MPU + 64MB RPA w/o Battery
Raid Controller FRU, 8MB MPU + 16MB RPA w/o Battery
Raid Controller, 8MB MPU + 16MB RPA w/ Battery
Raid Controller FRU, 8MB MPU + 16MB RPA w/o Battery
Raid Controller FRU, 16MB MPU + 64MB RPA w/o Battery
 Battery |
NS
NS |
530-2729 [F]
530-2751 |
SCSI Cable, 90° HD68 to VHDCI68, 2M (X992A)
SCSI Cable, 90° HD68 to VHDCI68, 4M (X993A) |
NS
NS |
530-2846 [F]
530-2847 |
Right 90° HD68 to VHDCI68, 2M (X959A)
Right 90° HD68 to VHDCI68, 4M (X947A) |
NS
NS
NS |
595-5112
250-1454
340-5439 |
EMI Shield and Air Filter, Option 994
Foam Air Filter
EMI Shield |
NS
NS |
595-5350
340-5435 |
19-inch Rack Mount Kit
Mounting Bracket (×2) |
NS
NS |
595-5117
340-4463 |
23-inch and 24-inch Rack Mount Kit, Option 6907
Mounting Bracket (×2) |
NS
NS |
595-5116
340-5559 |
600 mm Rack Mount Kit, Option 6909
Mounting Bracket (×2) |
| NS |
 805-7147 |
Netra st A1000 and D1000 Installation and Maintenance Manual |
| NS |
816-7261 |
Netra st A1000 and D1000 Product Notes |
