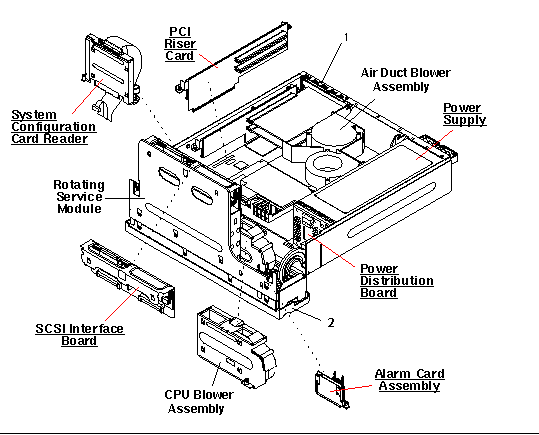

Exploded View Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown Code Manufacturing Part# Description 1 370-6106 Chassis Assembly, 2 371-0815 [C] Front Bezel Assembly, - 370-6105 LED Board, L - 370-6107 Front Bezel, NS 370-6110 19" 4-Post Rackmount Kit, NS n/a Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm NS 530-2889 RJ45 to DB25 Serial Port Adapter, NS 530-3623 [C] Shielded RJ45 to RJ45 Cable, 4M, NS 565-1882 8 Wago DC Connector Assembly Kit, 130-4361 DC Connector, 230-1708 DC Connector Strain Relief 230-1711 DC Connector Opening Lever 8 Wago Kit 565-1882 comes with the system. Wago 10 pack option X949A-4 is not required to install the system.
