Sun Datacenter InfiniBand Switch 72

Codename: Magnum 2 (NM2-72P)

X2825A-Z
Switch Option

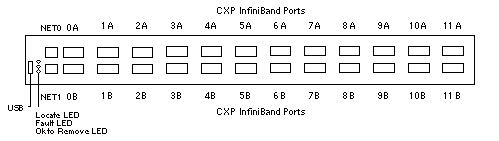

Front View
Rear View

Table Legend
[C] = Customer Replaceable Unit (CRU)

Additional Parts

PART # DESCRIPTION
541-4268
300-2143 [C]
300-2233 [C]
350-1312 [C]
541-3804 [C]
511-1217
371-2210 [C]
Data Center InfiniBand Switch 72
A237 760 Watt Power Supply,
A247 760 Watt Power Supply, (WO_43346, 06/28/10)
Fan Module,
Data Center InfiniBand Switch 72 Subassembly
72-Port CXP Switch,
CR2032 Battery
X2881-10M 10 Meter QDR 12x InfiniBand splitter cable
263-3923 Service Label
560-2932 Rack Mount Kit,

References

  1. Data Center InfiniBand Switch 72 User Guide, 820-7751.
  2. Data Center InfiniBand Switch 72 Command Reference, 820-7752.
  3. Data Center InfiniBand Switch 72 Product Notes, 820-7753.
