Sun Datacenter InfiniBand Switch 36

Codename: NM2-36 Port

If this unit is part of an Exadata V2, please reference the Sun System Handbook entry for Exadata V2

X2821A-Z
Switch Option
L

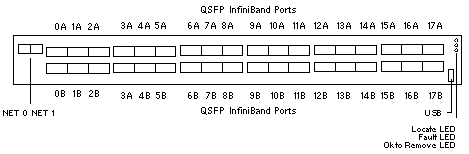

Front View
Rear View

Table Legend
[C] = Customer Replaceable Unit (CRU)

Additional Parts

PART # DESCRIPTION
541-4267
300-2143 [C]
300-2233 [C]
350-1312 [C]
350-1566 [C]
541-3495 [C]
350-1345
511-1312
511-1232
371-2210 [C]
530-4319
530-4320
Data Center InfiniBand Switch 36, L
A237 760 Watt Power Supply,
A247 760 Watt Power Supply, (WO_43346, 06/28/10)
Fan Module,
Fan Module (E0000812 10/29/10)
Data Center InfiniBand Switch 36 Subassembly, L
Fan Module Filler Panel, FT0 and FT4,
Fan Board,
36-Port QSFP Switch, L
CR2032 Battery
Internal Power Cable,
Internal Signal Cable,
263-3923 Service Label
382-3495 Assembly Drawing
560-2932 Rack Mount Kit,
950-5798 Engineering Specification

References

  1. Data Center InfiniBand Switch 36 User Guide, 820-7746.
  2. Data Center InfiniBand Switch 36 Command Reference, 820-7747.
  3. Data Center InfiniBand Switch 36 Product Notes, 820-7748.
