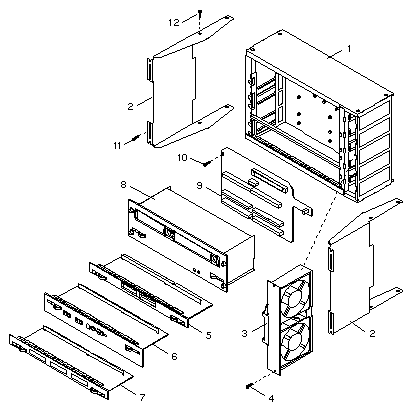

SPARCstorage [tm] Array Model 210
795
CODE
PART #
DESCRIPTION
1
540-2653
Chassis Assembly
1
340-3125
Chassis Enclosure
2
340-3103
Chassis Mounting Bracket
3
-
540-2610
370-1845
2-Fan Tray Assembly/FRU
DC Fan
4
240-1530
M3 × 6 mm Screw
5
501-2781
LCD Display
6
-
-
-
501-3024
501-3021
370-1426
501-2857
Configured Differential Array Controller
Differential SCSI Array Controller (110MHz)
Fibre Channel Optical Module
Battery Module
7
501-2670
Differential SCSI to Fibre Channel Adapter
8
-
540-2465
300-1098
Power Supply Assembly/FRU
440 Watt Power Supply
9
501-2664
Backplane
10
240-1559
M4 0.7 × 6 mm Screw
11
240-1953
#10-32 × 1/2" Screw
12
240-2186
M6 0.7 × 8 mm Screw
NS
2.1GB Differential SCSI Disk Subsystem
2.9GB and 9.0GB Differential SCSI Disk Subsystem
NS
261-4696
SPARCstorage Array 200 Logo
NS
530-1343
AC Power Cord, 240V
NS
530-1351
AC Power Cord, 10A/250V
NS
537-1004
Fibre Optical Cable, 2M
NS
537-1006
Fibre Optical Cable, 15M
801-2204
SPARCstorage Array User's Guide
802-2027
SPARCstorage Array 200 Installation Manual
802-2028
SPARCstorage Array 200 Series Service Manual
