Netra E1 - Full Components List

Cables Miscellaneous Power Rack Whole System FRU Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L	Localized Power Cord Kit - North America/Asia,
	180-1097 [C]	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black,	n/a
n/a	530-2977 [F]	PCI Expansion Cable	n/a
n/a	530-3035	Rear LED Cable	n/a
n/a	530-3052	Front LED Cable	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-0129 [F]	Host Interface Card	n/a
n/a	540-4639	PCI Card Cage	n/a
	370-3911	Fan Assembly	n/a
	501-5789	Baseboard	n/a
	501-5790	Riser Board A	n/a
	501-5791	Riser Board B	n/a
	530-3035	Rear LED Cable	n/a
	540-4690	Stiffener	n/a
	540-4691	Cage	n/a
n/a	540-4692	Chassis Assembly	n/a
	340-6613	Base	n/a
	340-6614	Cover	n/a
	340-6736	Mesh	n/a
	330-3184	Rear Rackmount Bracket	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1488 [F]	Type A160 130 Watt AC Input Power Supply	n/a
n/a	300-1489 [F]	Type D137 130 Watt DC Input Power Supply	n/a
n/a	540-4741	Power Distribution Assembly	n/a
	340-6810	Power Distribution Unit Frame	n/a
	501-5881	Power Distribution Board	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X6919A [S]	595-6231	19-inch Rack Mount Kit	n/a
X6966A [S]	595-5322	23-inch Rack Mount Kit	n/a
X6967A [S]	595-5323	24-inch Rack Mount Kit	n/a
X6968A [S]	595-5324	600 mm Rack Mount Kit	n/a

Whole System FRU
Option #	Manufacturing Part #	Description	Previous Part #
X1184A [S]	540-4640 [F]	Netra E1 AC Chassis Assembly/FRU	n/a
	300-1488 [F]	Type A160 130 Watt AC Input Power Supply	n/a
	530-3052	Front LED Cable	n/a
	540-4639	PCI Card Cage	n/a
	370-3911	Fan Assembly	n/a
	501-5789	Baseboard	n/a
	501-5790	Riser Board A	n/a
	501-5791	Riser Board B	n/a
	530-3035	Rear LED Cable	n/a
	540-4690	Stiffener	n/a
	540-4691	Cage	n/a
	540-4692	Chassis Assembly	n/a
	340-6613	Base	n/a
	340-6614	Cover	n/a
	340-6736	Mesh	n/a
	330-3184	Rear Rackmount Bracket	n/a
	540-4741	Power Distribution Assembly	n/a
	340-6810	Power Distribution Unit Frame	n/a
	501-5881	Power Distribution Board	n/a
n/a	540-4641 [F]	Netra E1 DC Chassis Assembly/FRU.	n/a
	300-1489 [F]	Type D137 130 Watt DC Input Power Supply	n/a
	530-3052	Front LED Cable	n/a
	540-4639	PCI Card Cage	n/a
	370-3911	Fan Assembly	n/a
	501-5789	Baseboard	n/a
	501-5790	Riser Board A	n/a
	501-5791	Riser Board B	n/a
	530-3035	Rear LED Cable	n/a
	540-4690	Stiffener	n/a
	540-4691	Cage	n/a
	540-4692	Chassis Assembly	n/a
	340-6613	Base	n/a
	340-6614	Cover	n/a
	340-6736	Mesh	n/a
	330-3184	Rear Rackmount Bracket	n/a
	540-4741	Power Distribution Assembly	n/a
	340-6810	Power Distribution Unit Frame	n/a
	501-5881	Power Distribution Board	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

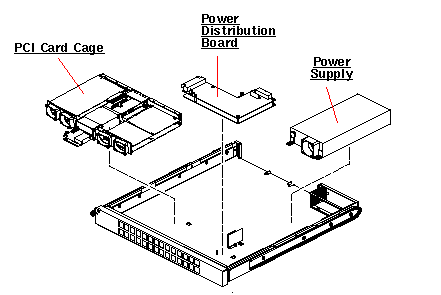

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	330-3184	Rear Rackmount Bracket
