Netra CP3060

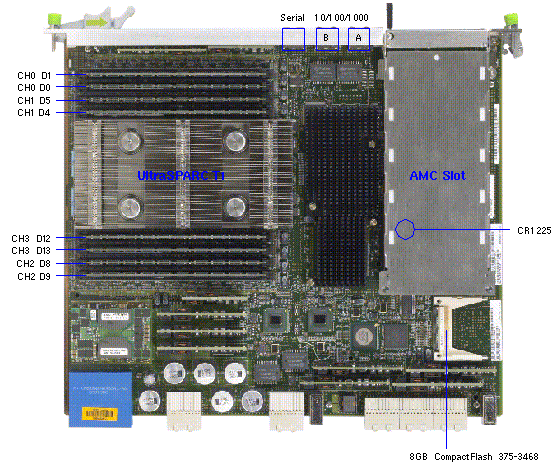

Netra CP3060 Codename: Montoya

Serial Number Location

Located on the board - board needs to be removed to get access to the serial number.

371-1952	371-2135	501-7652	501-7653	501-7654
1GB DIMM / 4GB Option XCP3060-MEM-4GB	2GB DIMM No Option	0MB FRU 1GHz 4-Core UltraSPARC T1	0MB FRU 1GHz 6-Core UltraSPARC T1	0MB FRU 1GHz 8-Core UltraSPARC T1

501-7656	501-7657	501-7658	501-7659
4GB 1GHz 4-Core 4 × 1GB 371-1952 CP3060C-4C-4GB	4GB 1GHz 6-Core 4 × 1GB 371-1952 CP3060C-6C-4GB	8GB 1GHz 8-Core 8 × 1GB 371-1952 CP3060C-8C-8GB	16GB 1GHz 8-Core 8 × 2GB 371-2135 CP3060C-8C-16GB

Table Legend

[C] = Customer Replaceable Unit (CRU) [S] = Supported, but can no longer be ordered with this system

CP3060 Boards
(UltraSPARC T1 CPU)

PART #	DESCRIPTION
371-2135 [C]	2GB DDR2 VLP-DIMM
594-3882 375-3468 [C]	8GB Compact Flash Option XCP3000-CF-8GB [S] 8GB Compact Flash
594-3880 371-1952 [C]	4GB Memory Option XCP3060-MEM-4GB [S] 1GB DDR2 VLP-DIMM (×4)
594-3883 501-7682 [C]	Rear Transition Module Option XCP3060-RTM [S] Rear Transition Module
594-3881 375-3470 [C]	80GB AMC Disk Drive Option XCP3060-HD-80GB [S] 80GB AMC Disk Drive Assembly
594-5818 375-3600 [C]	80GB Rev 2.0 AMC Disk Drive Option XCP3060-HD2-80GB [S] 80GB Rev 2.0 AMC Disk Drive Assembly

CP3060 Configured Board Options

PART #	DESCRIPTION
594-3872 501-7656 371-1952 [C] 501-7652 [C] 150-1204 [C]	CP3060 Option CP3060C-4C-4GB [S] 1GHz 4-Core 4GB CP3060 System Board 1GB DDR2 VLP-DIMM (×4) 1GHz 4-Core CP3060 System Board FRU CR1225 Coin Cell Battery
594-3878 501-7657 371-1952 [C] 501-7653 [C] 150-1204 [C]	CP3060 Option CP3060C-6C-4GB [S] 1GHz 6-Core 4GB CP3060 System Board 1GB DDR2 VLP-DIMM (×4) 1GHz 6-Core CP3060 System Board FRU CR1225 Coin Cell Battery
594-3873 501-7658 371-1952 [C] 501-7654 [C] 150-1204 [C]	CP3060 Option CP3060C-8C-8GB [S] 1GHz 8-Core 8GB CP3060 System Board 1GB DDR2 VLP-DIMM (×8) 1GHz 8-Core CP3060 System Board FRU CR1225 Coin Cell Battery
594-3879 501-7659 371-2135 [C] 501-7654 [C] 150-1204 [C]	CP3060 Option CP3060C-8C-16GB [S] 1GHz 8-Core 16GB CP3060 System Board 2GB DDR2 VLP-DIMM (×8) 1GHz 8-Core CP3060 System Board FRU CR1225 Coin Cell Battery
CP3060 Board Documentation

Notes

1. The minimum operating system is Solaris 10 6/06.
2. The minimum memory is four DIMMs in Channel 1 (CH1) and Channel 2 (CH2).
3. The CP3060 is not shipped with a battery.
4. Use of CR1225 coin cell battery 150-1204 is optional.
5. Item 3500 in the 501-7313-12 bill of material is battery 150-1204.

Patch Information

1. Patch Readmes and Downloads
2. Boot PROM and LOM Revisions

References

1. Netra CP3060 Product Notes, 819-4966.
2. Netra CP3060 User's Guide, 819-4967.
3. Netra CP3060 Rear Transition Module User's Guide, 819-6689.
